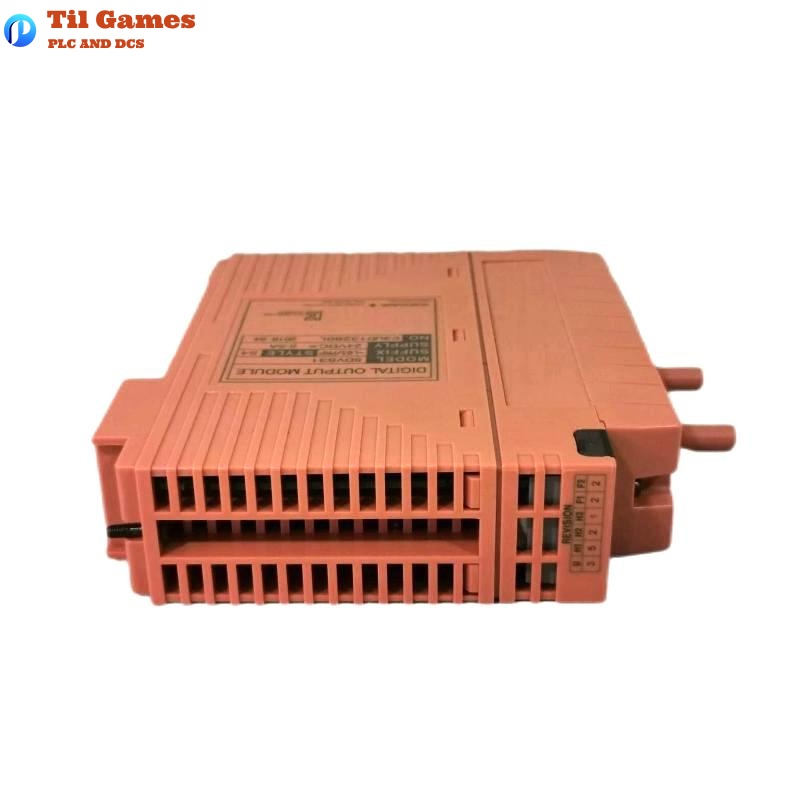

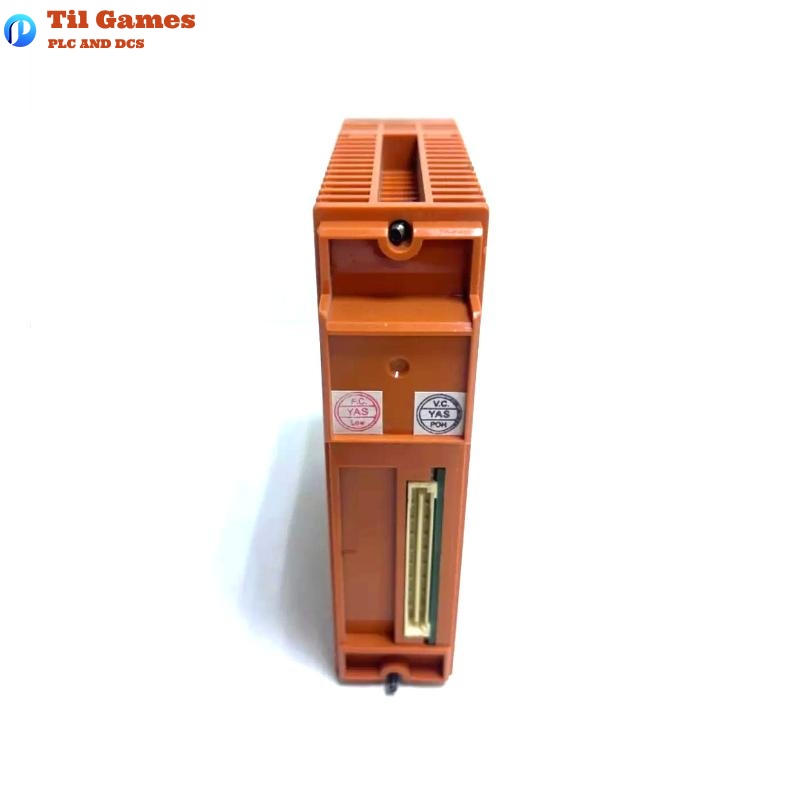

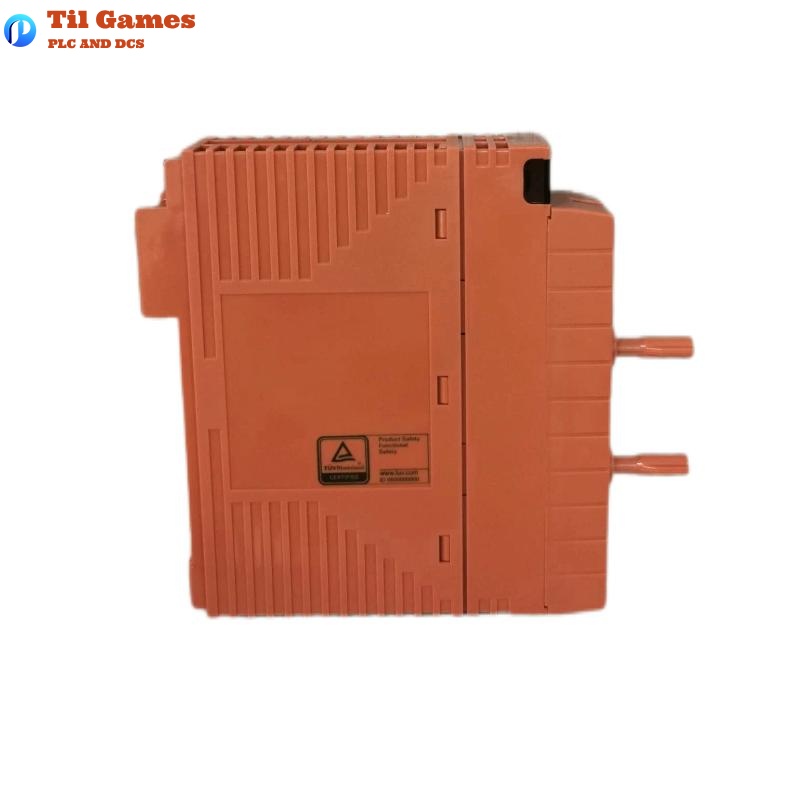

Yokogawa SDV531-L63 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the SDV531-L63 have?
A1: It has 8 isolated output channels.

Q2: What is the operating voltage of SDV531-L63?
A2: 24 V DC with a tolerance of +20% / -10%.

Q3: What is the maximum load current per channel?
A3: 0.6 A per output channel, with a maximum total of 4.8 A.

Q4: Is there leakage current when the output is off?
A4: Yes, maximum leakage current is 1.6 mA.

Q5: What are the module dimensions?
A5: The dimensions are 130 x 107.5 x 32.8 mm.

Q6: What external connection options are available?
A6: Pressure clamp terminal, MIL cable, and AKB331 or AKB651 signal cables.

Q7: What is the output response time?
A7: The response time is up to 30 milliseconds.

Q8: Does the module provide isolation?
A8: Yes, it features module-level isolation between output channels and the system.

Digital Output Module SDV531-L63 Yokogawa
