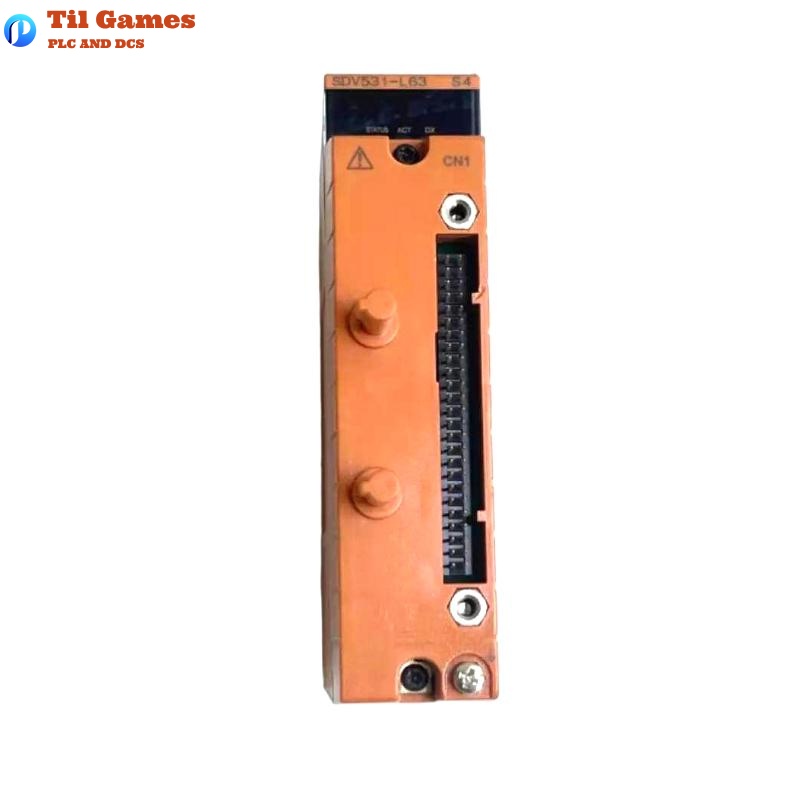

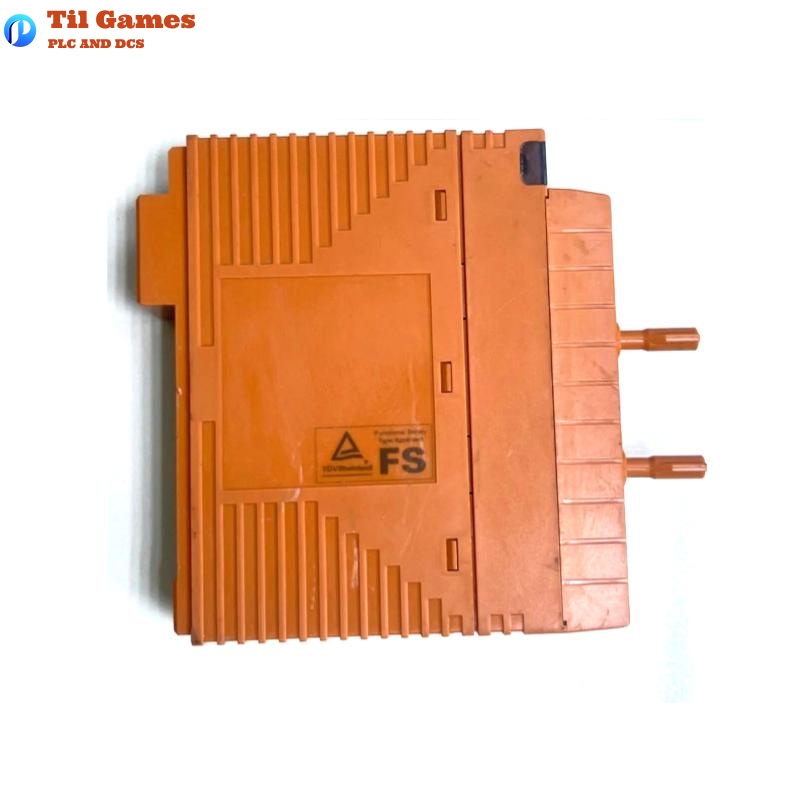

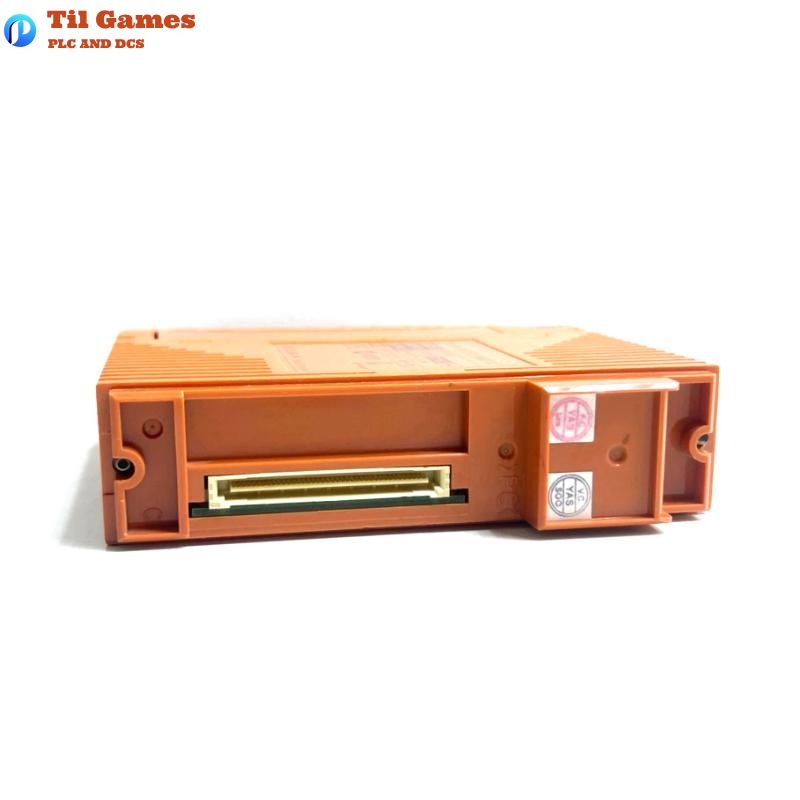

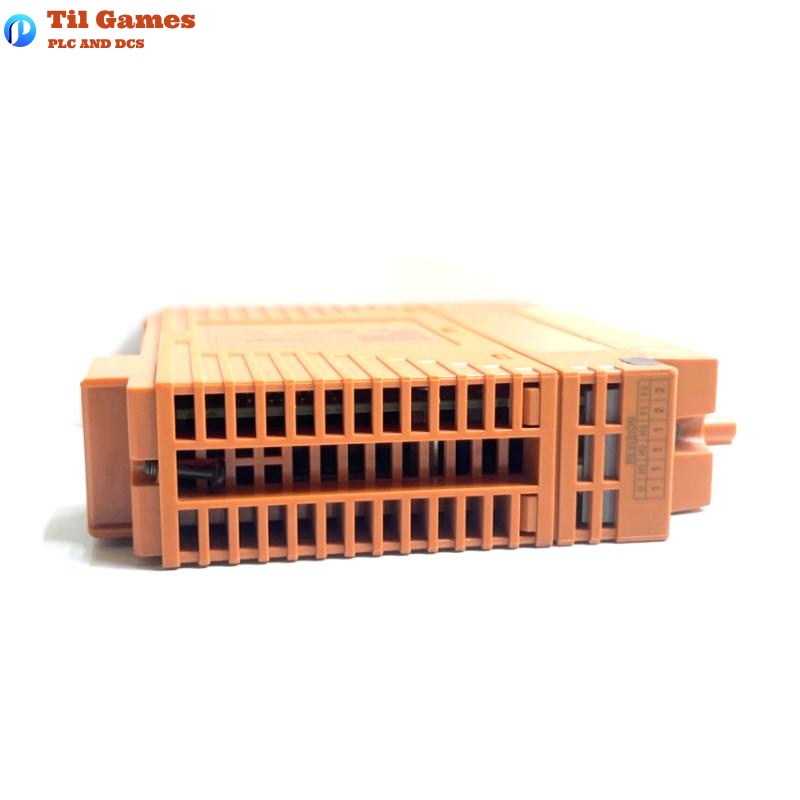

Yokogawa SDV531-S63 Digital Output Module

Frequently Asked Questions (FAQ)

Q1: What is the output voltage rating of the SDV531-S63 module?
A1: The output voltage is rated at 24 V DC.

Q2: How many output channels does the module support?
A2: It supports 8 output channels with module-level isolation.

Q3: What is the maximum load current per output channel?
A3: The maximum is 0.6 A per output line, with a total of 4.8 A.

Q4: What type of output signal does it provide?
A4: The module provides a current source type output.

Q5: What is the output response time?
A5: The maximum output response time is 30 milliseconds.

Q6: What type of external connections are supported?
A6: It supports pressure clamp terminals, MIL cable, and AKB331 signal cable.

Q7: What is the typical power consumption of the module?
A7: Up to 280 mA at 5 V DC and 140 mA at 24 V DC.

Q8: What are the dimensions and weight of the module?
A8: Dimensions are 130 x 107.5 x 32.8 mm, and the weight is approximately 0.34 kg.

Digital Output Module SDV531-S63 Yokogawa
