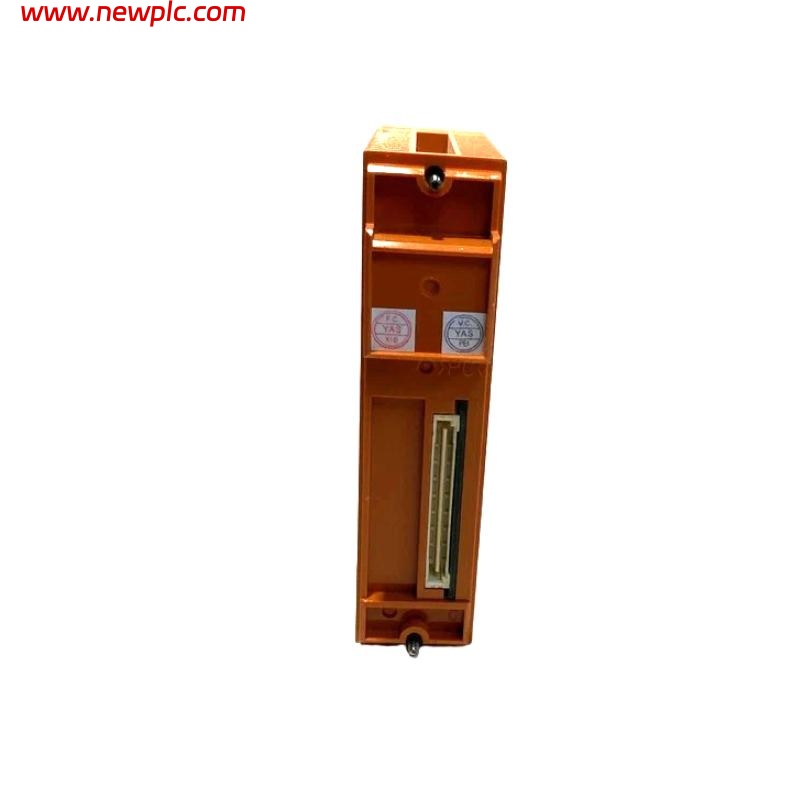

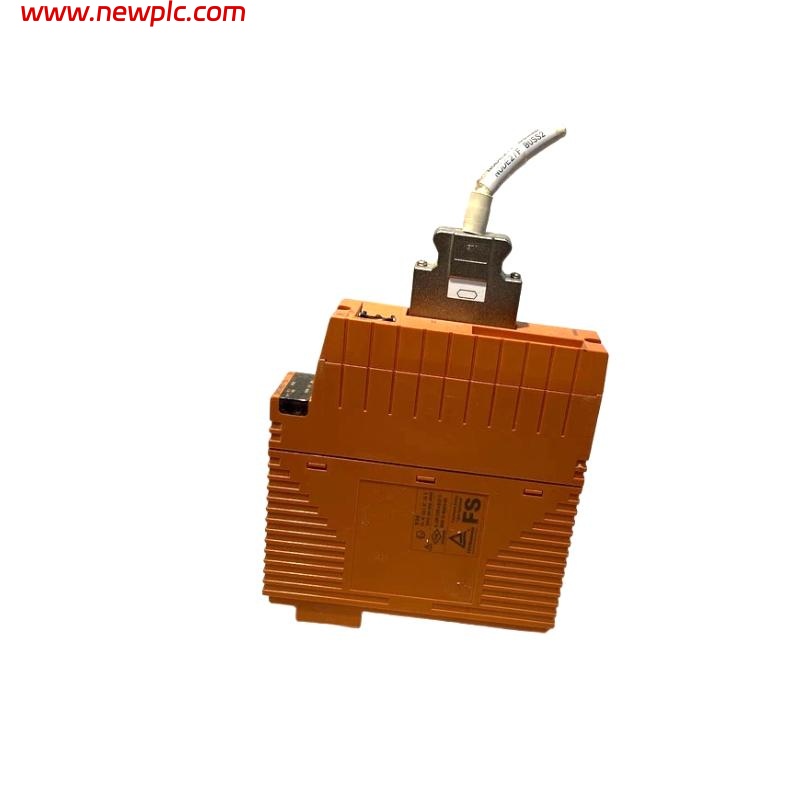

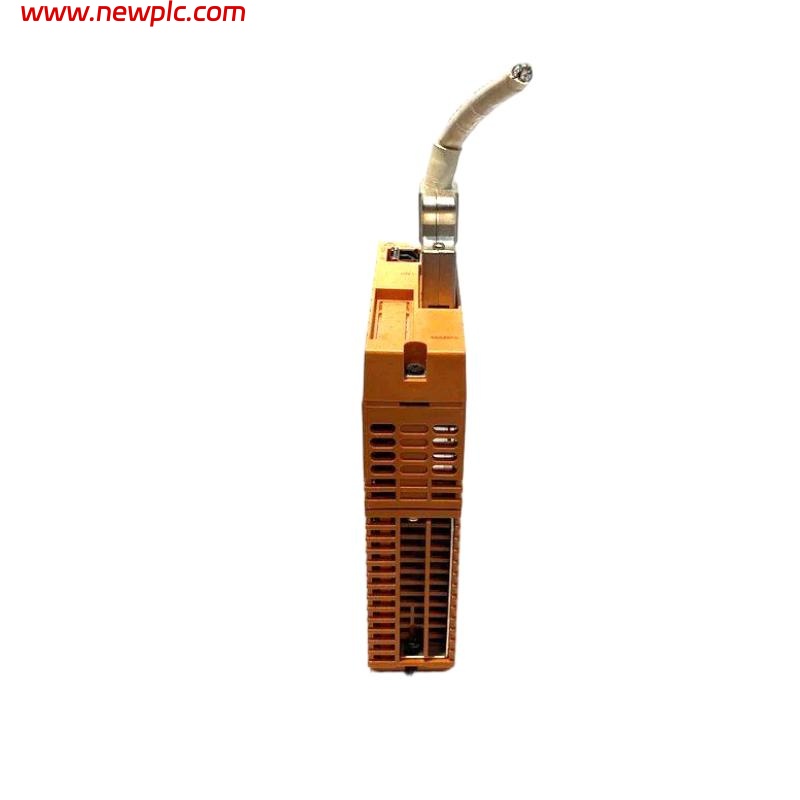

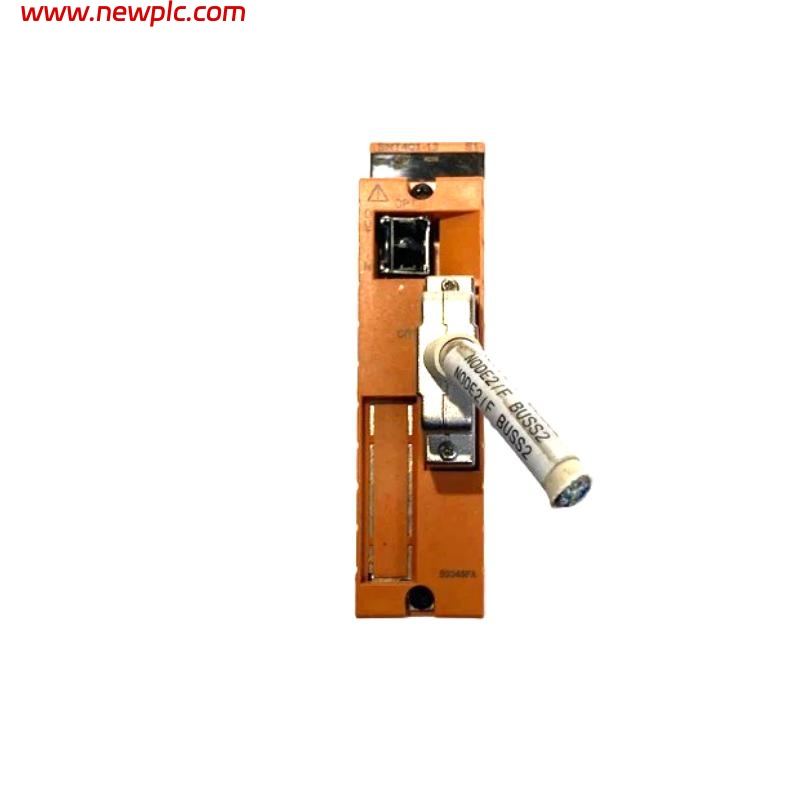

Yokogawa SNT401 Optical ESB Bus Repeater Master Module

FAQ

Q1: What is the main function of the SNT401 module?
A1: It converts ESB Bus signals into optical signals to extend transmission distance.

Q2: What connection types does the SNT401 support?
A2: It supports both star and chain type connections.

Q3: What is the maximum transmission distance supported?
A3: Up to 5 km over two stages, or 10 km when using Vnet/IP R1.03 or later.

Q4: Which modules are compatible with the SNT401?
A4: Compatible with SEC401/402, SSB401, SNT501, and S2EN501.

Q5: Are termination options available with the SNT401?
A5: Yes, /CU1N is without terminator, and /CU1T includes a terminator.

Q6: Are there any specific installation requirements?
A6: Yes, it must be mounted in continuous slots—Bus 1 in odd-numbered and Bus 2 in even-numbered slots.

Q7: What is the current consumption of the SNT401?
A7: The current consumption is 0.5 A.

Q8: What are the dimensions and weight of the SNT401?
A8: Dimensions are 142.5 x 130 x 32.8 mm, and weight is approx. 0.3 kg.

Optical ESB Bus Repeater Master Module SNT401 Yokogawa
