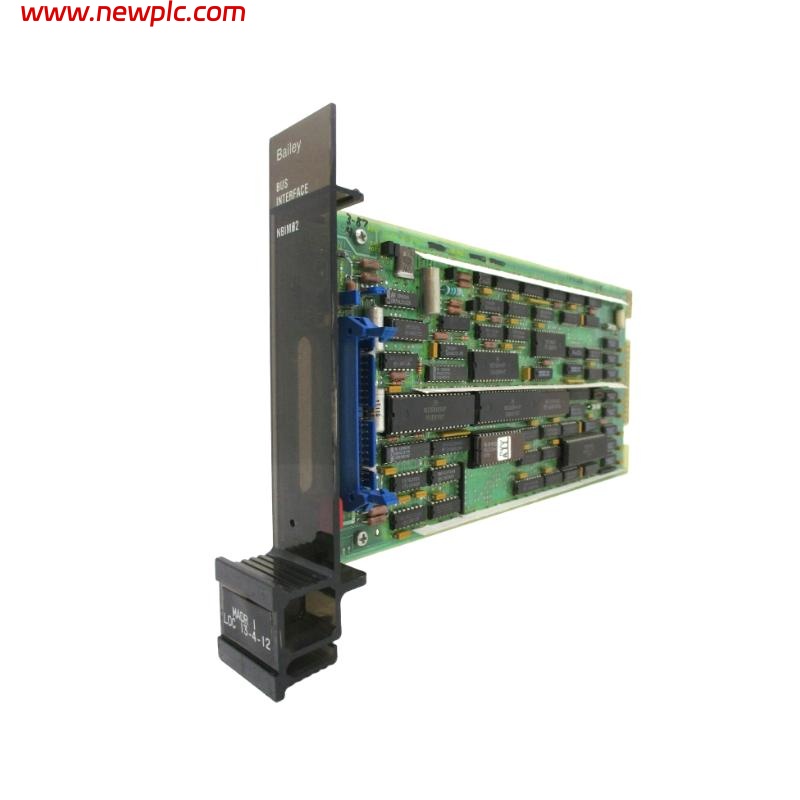

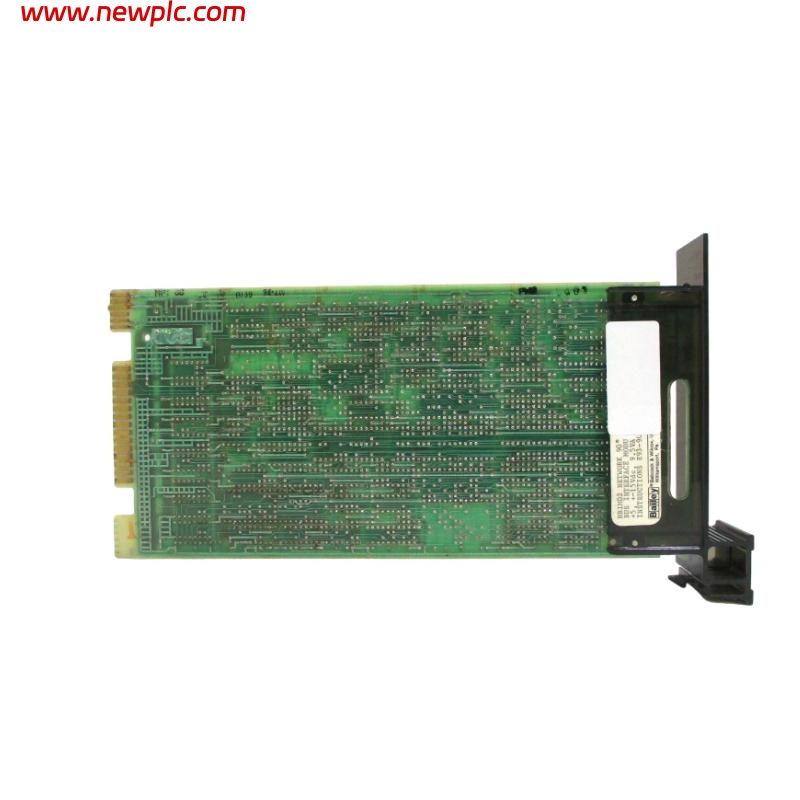

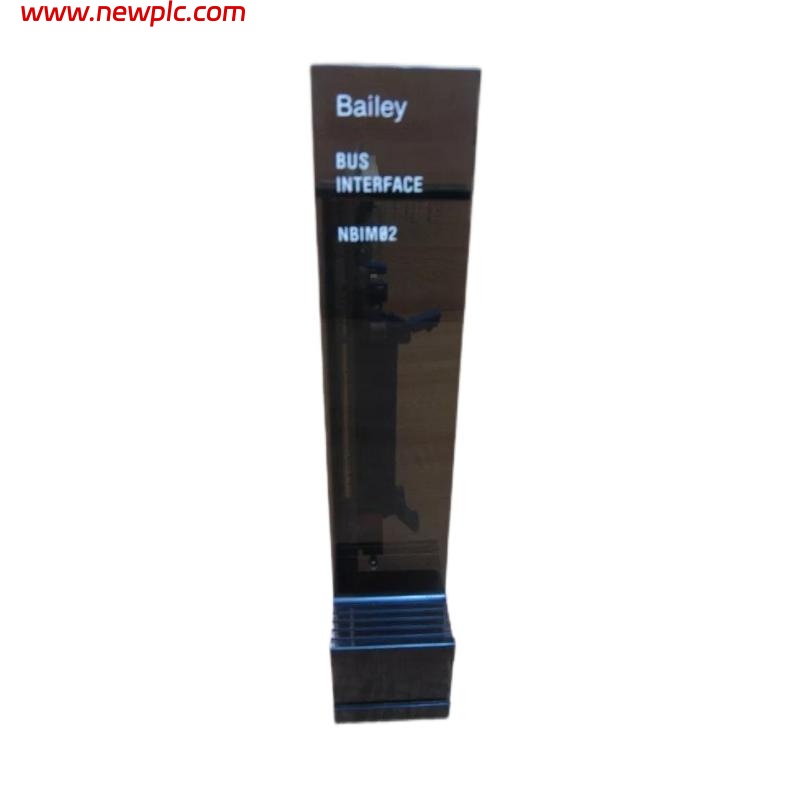

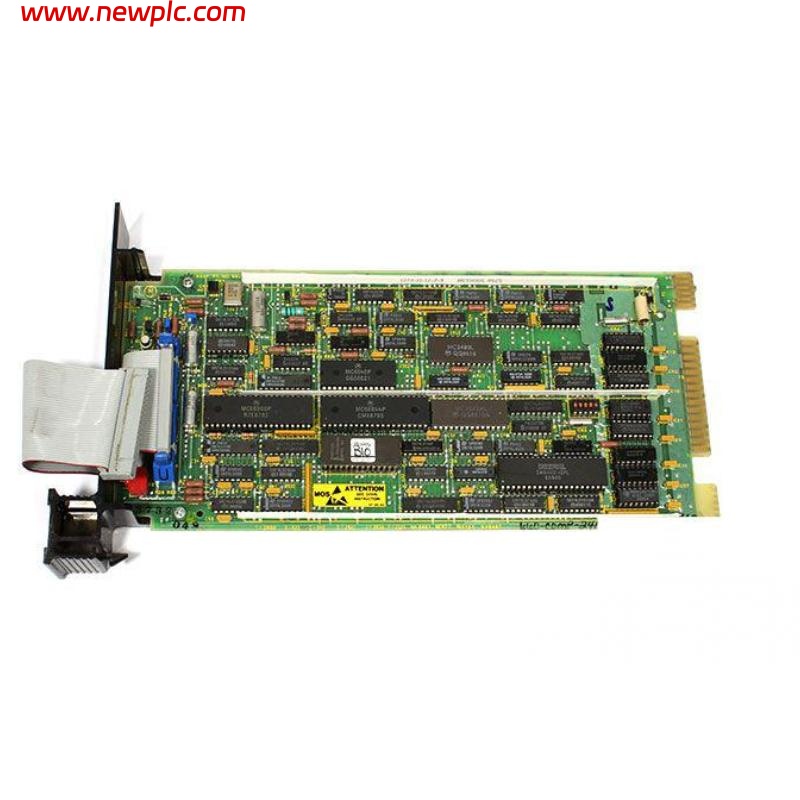

ABB Bailey NBIM02 Network 90 Bus Interface Module

FAQ

Q1: What is the primary function of the NBIM02 module?
A1: The NBIM02 serves as a Bus Interface Module, collecting data from system modules and forwarding it to the Loop Interface Module for transmission on the Plant Loop.

Q2: How many NBIM02 modules can be installed in a single system?
A2: Up to 63 nodes can exist on a Plant Loop, including NBIM02 modules in combination with other nodes such as PCUs, OIS, and NIUs.

Q3: Is the NBIM02 compatible with redundant configurations?
A3: Yes, the NBIM02 supports operation as part of a redundant LIM/BIM pair for high availability.

Q4: What is the communication speed of the NBIM02?
A4: The NBIM02 operates at 500 kbaud and can handle up to 800 messages per second.

Q5: What environmental conditions is the NBIM02 designed for?
A5: It operates in 0–70°C ambient temperature, up to 95% non-condensing humidity at 55°C, and altitudes up to 3 km.

Q6: Does the NBIM02 support exception reporting?
A6: Yes, it efficiently packs and transmits exception reports to reduce unnecessary loop traffic and improve throughput.

Q7: What are the memory resources available in the NBIM02?
A7: It features 32 kbytes of RAM and 16 kbytes of ROM, ensuring sufficient capacity for its tasks.

Q8: What precautions should be taken during installation?
A8: Handle the module using static-safe procedures, ensure correct jumper settings, and avoid connecting cables incorrectly to prevent damage.
