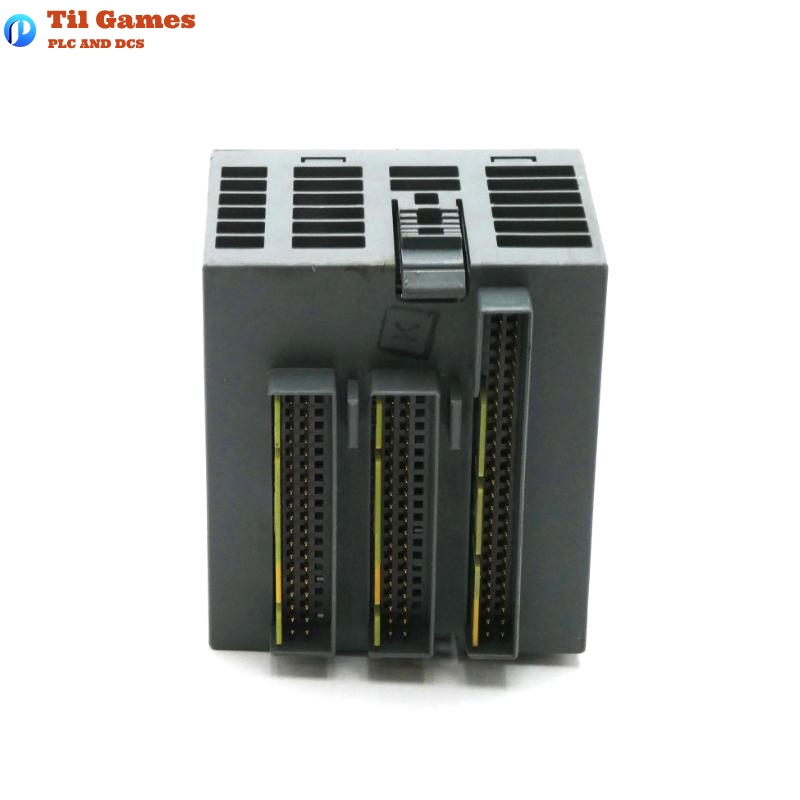

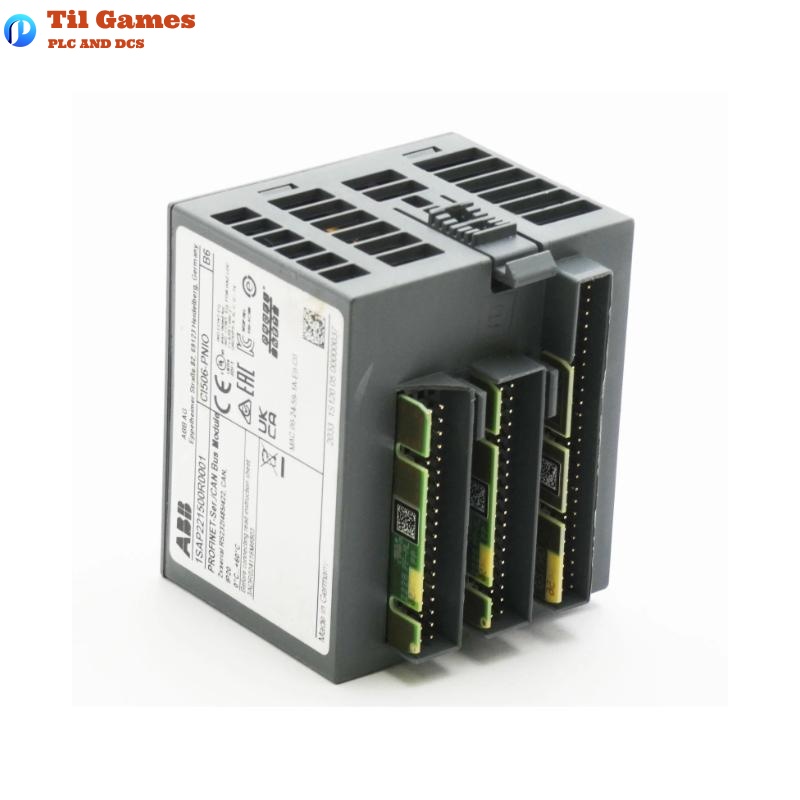

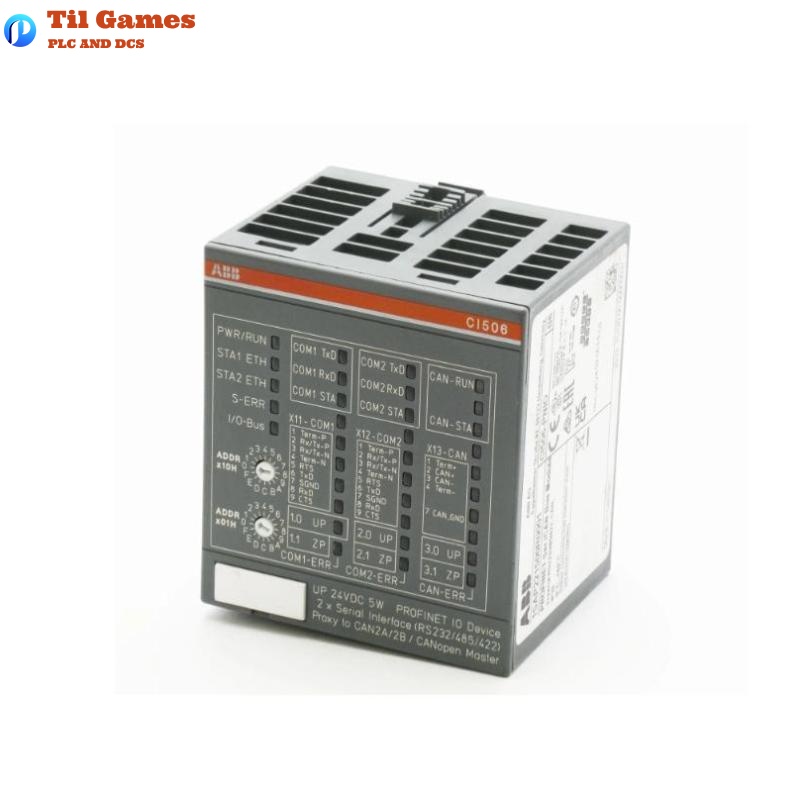

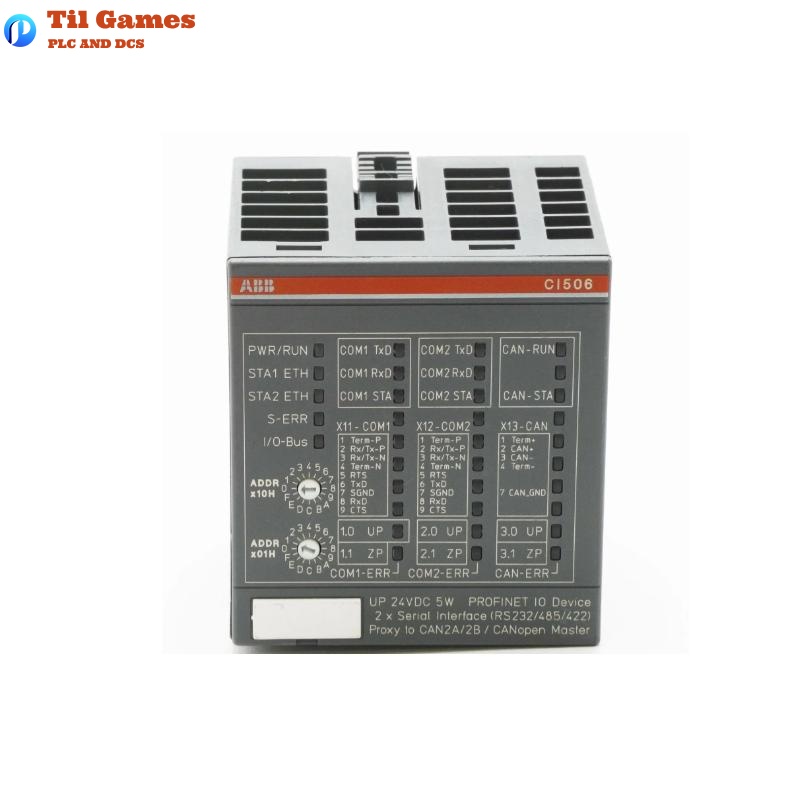

ABB CI506-PNIO 1SAP221500R0001 S500 Interface Module

Frequently Asked Questions (FAQ)

Q1: What protocols does the CI506-PNIO support?
A1: It supports PROFINET protocols such as RTC, RTA, DCP, CL-RPC, LLDP, and MRP.

Q2: Is CANopen communication supported by this module?
A2: Yes, the module includes 1 CANopen master interface supporting up to 1 Mbit/s.

Q3: How is the module address configured?
A3: The address is set via two rotary switches located on the front panel.

Q4: What is the maximum input and output data size?
A4: Input and output data lengths are both up to 36 bytes.

Q5: Does the module provide LED indicators for diagnostics?
A5: Yes, there are 18 LEDs for operational and error indication.

Q6: Can this module be expanded with other I/O modules?
A6: Yes, up to 10 S500 I/O modules can be connected.

Q7: What are the installation options for this module?
A7: It supports both horizontal and vertical mounting positions.

Q8: What is the protection level of this module?
A8: The module complies with IP20 protection level, suitable for control cabinet environments.

1SAP221500R0001 ABB CI506-PNIO S500 Interface Module
