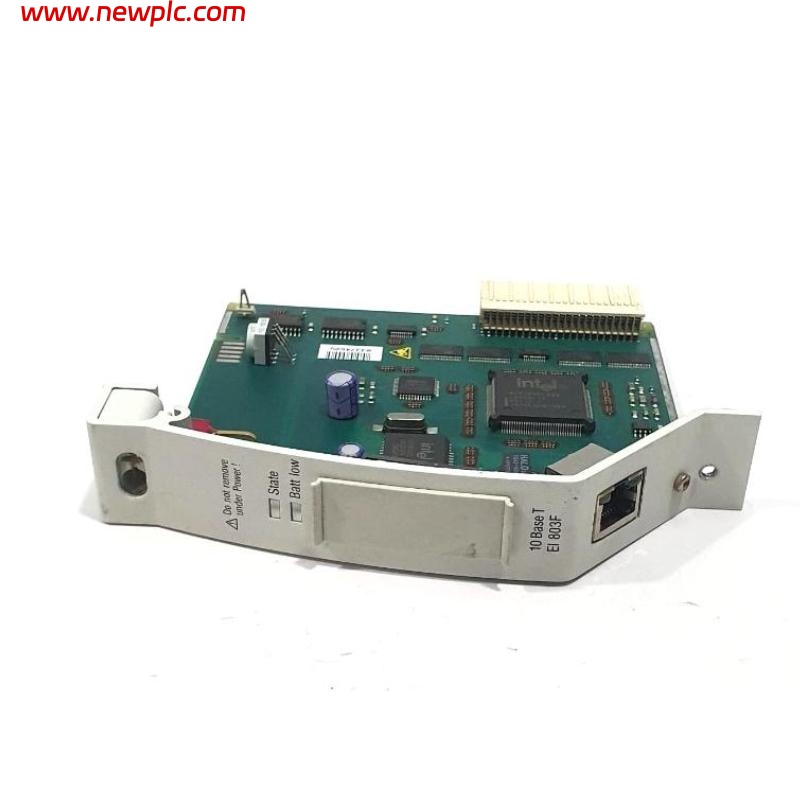

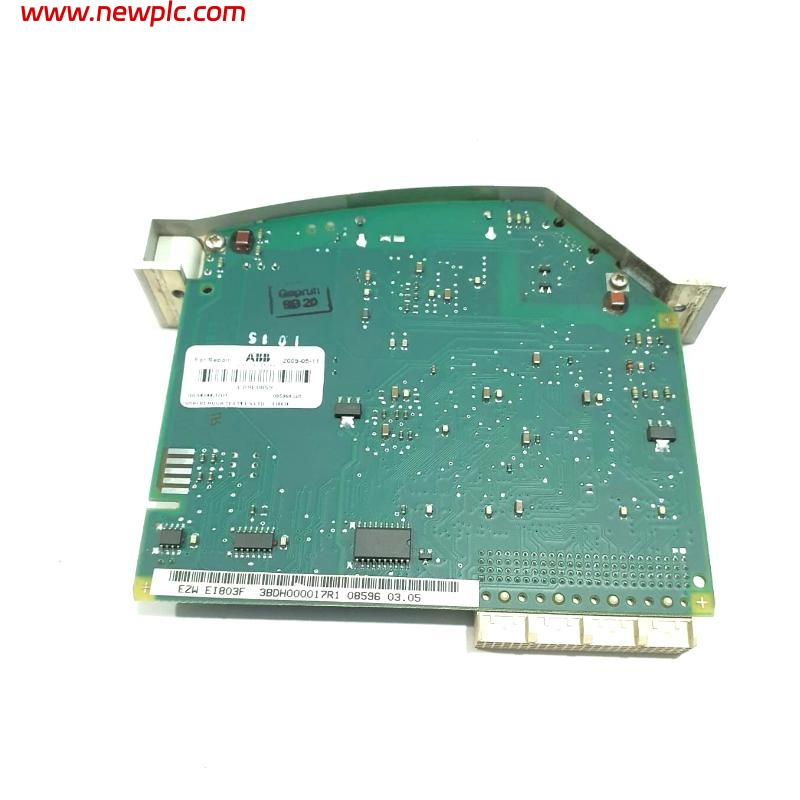

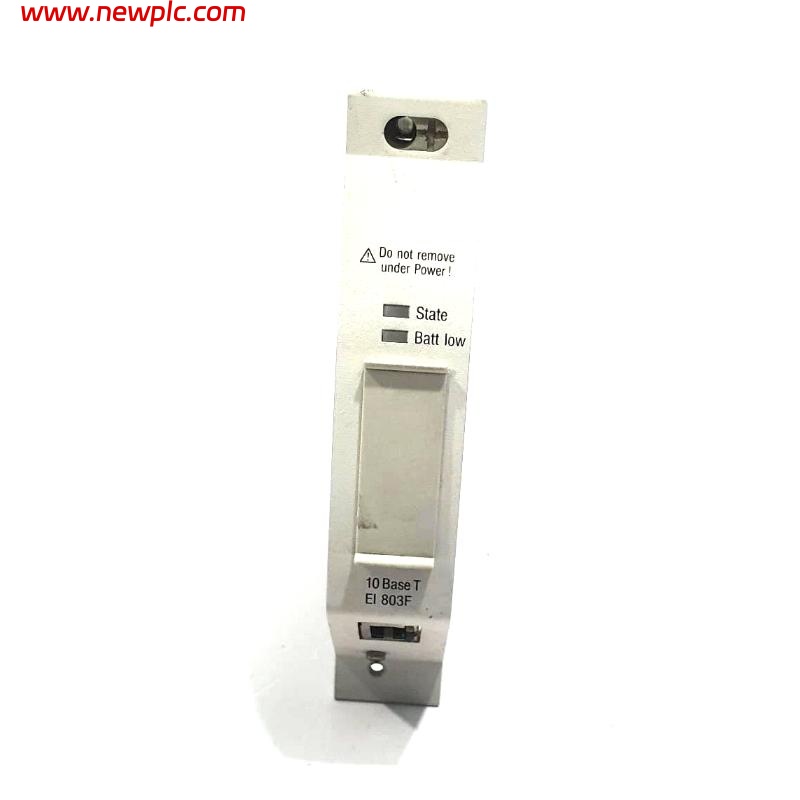

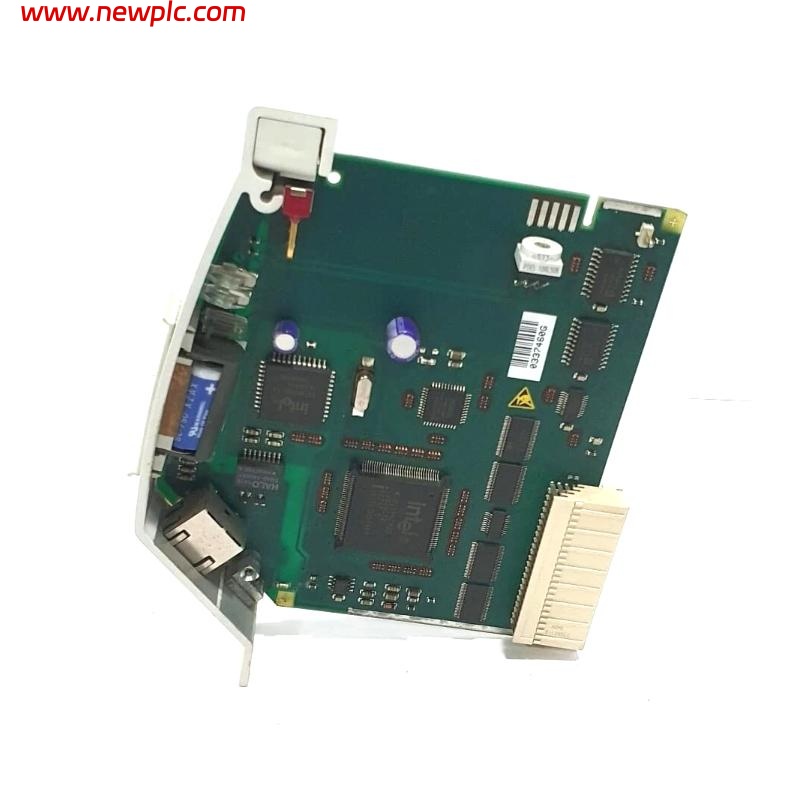

ABB EI 803F 3BDH000017R1 AC 800F Ethernet Communication Module

FAQ

• Q1: What is the maximum data transfer rate supported by the EI 803F module?
  A1: The EI 803F supports a maximum Ethernet transfer rate of 10 Mbps, compliant with 10BaseT standards.

• Q2: Can the EI 803F module operate in a redundant Ethernet network?
  A2: Yes, the module supports redundant network topologies to ensure high availability in industrial automation applications.

• Q3: What type of connectors does the EI 803F use for Ethernet communication?
  A3: The module uses standard RJ45 connectors for 10BaseT twisted-pair Ethernet connections.

• Q4: What environmental conditions can the EI 803F withstand?
  A4: The module is designed for industrial environments, capable of operating within typical AC 800F system temperature and humidity ranges.

• Q5: Is the EI 803F compatible with all AC 800F I/O configurations?
  A5: The module is compatible with standard AC 800F configurations but should be installed according to system design specifications to ensure proper operation.

• Q6: How is the EI 803F module configured for network operation?
  A6: Configuration is performed through the AC 800F system’s engineering tools, where IP addressing and communication parameters are defined.

• Q7: Does the EI 803F module support diagnostic features?
  A7: Yes, it provides status indicators and communication diagnostics to monitor link integrity and activity.

• Q8: What is the recommended installation orientation for the EI 803F?
  A8: The module should be installed vertically in the AC 800F rack, following standard mounting procedures to ensure cooling and accessibility.
