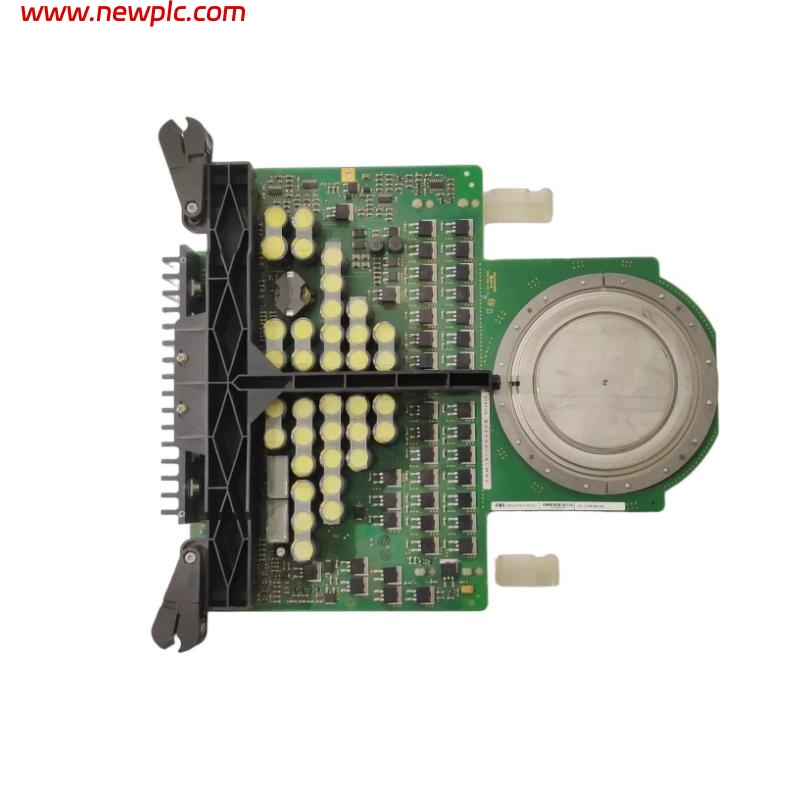

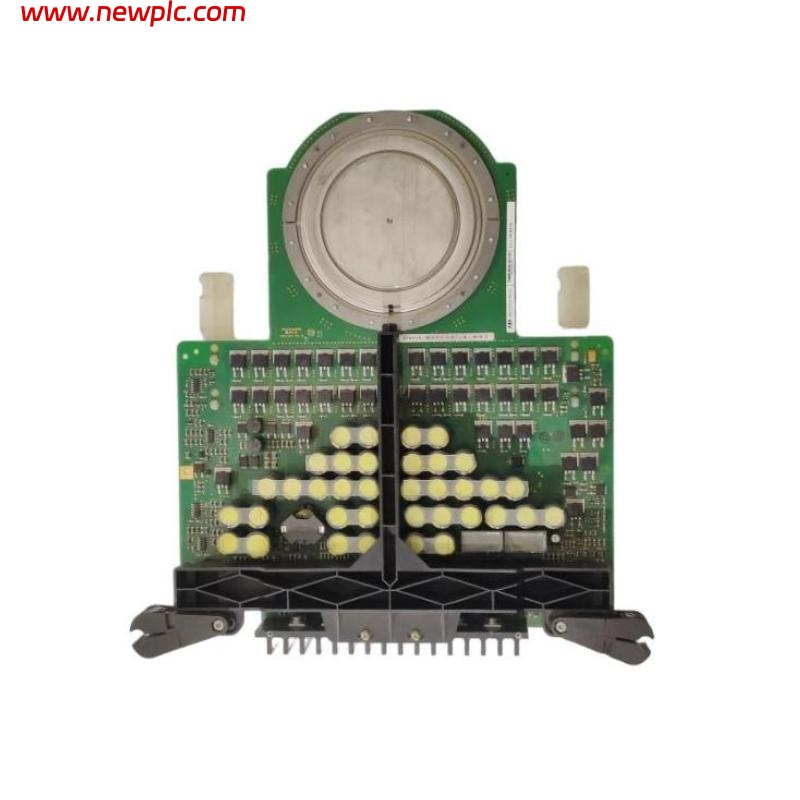

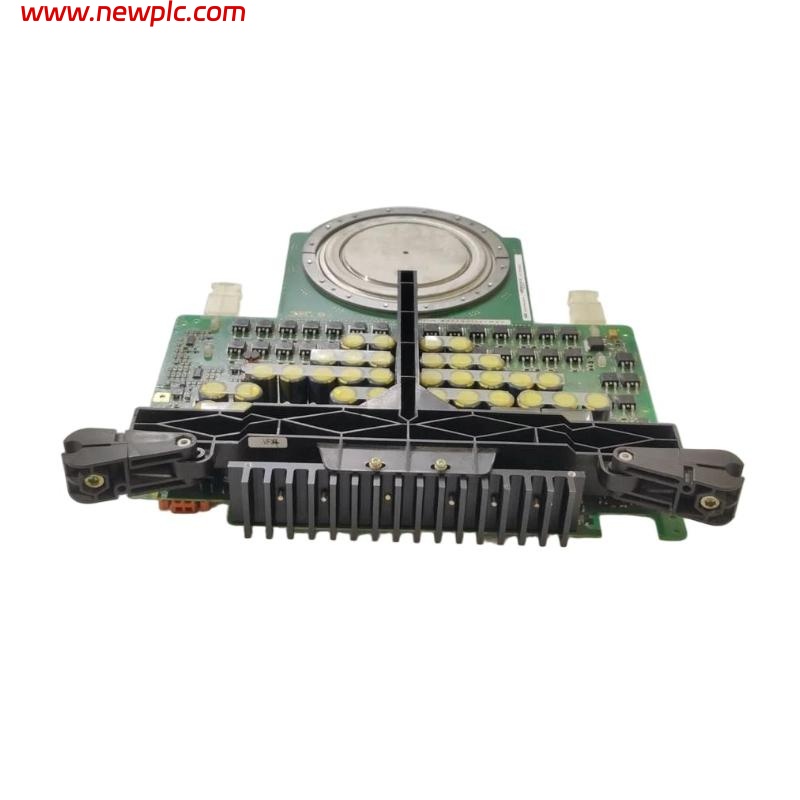

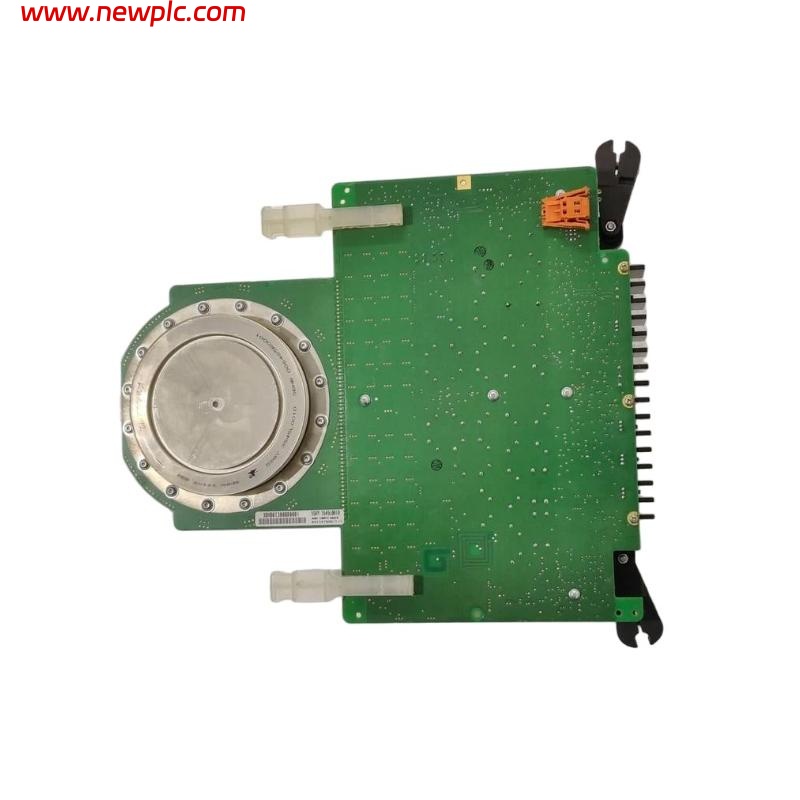

ABB GVC750BE101 3BHE009681R0101 IGCT Modules

FAQ

Q1: What is the main function of the GVC750BE101 IGCT module?
A1: It is used for high-power switching and control, suitable for high-power inverters and power electronics systems.

Q2: What are the rated current and voltage of the module?
A2: Rated current is 1500 A, and rated voltage is 4.5 kV.

Q3: Which gate drive types are supported?
A3: Supports TTL and IGBT-compatible gate drive.

Q4: What is the module response time?
A4: Response time is less than or equal to 5 µs.

Q5: What cooling methods are available?
A5: Supports forced air cooling or optional water cooling.

Q6: What are the dimensions and weight of the module?
A6: Dimensions are 250 x 200 x 80 mm, and weight is 0.45 kg.

Q7: How is the module mounted?
A7: Can be slot-mounted or panel-mounted for easy system integration.

Q8: What are the operating environment requirements?
A8: Operating temperature -20 to +60 ℃, storage temperature -40 to +85 ℃, relative humidity 5% to 95% non-condensing.

3BHE009681R0101 ABB GVC750BE101 IGCT Modules
