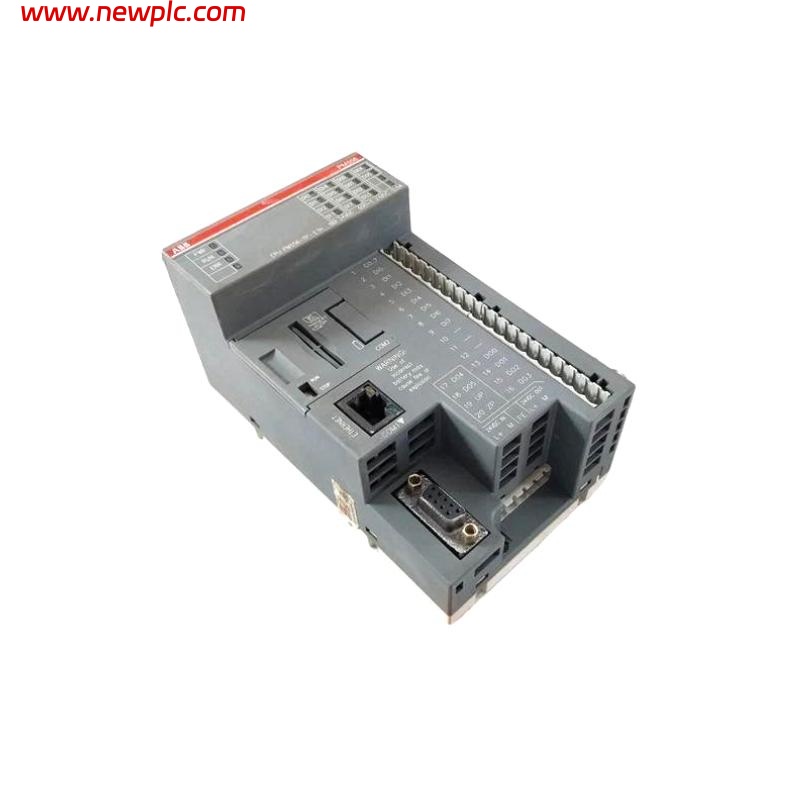

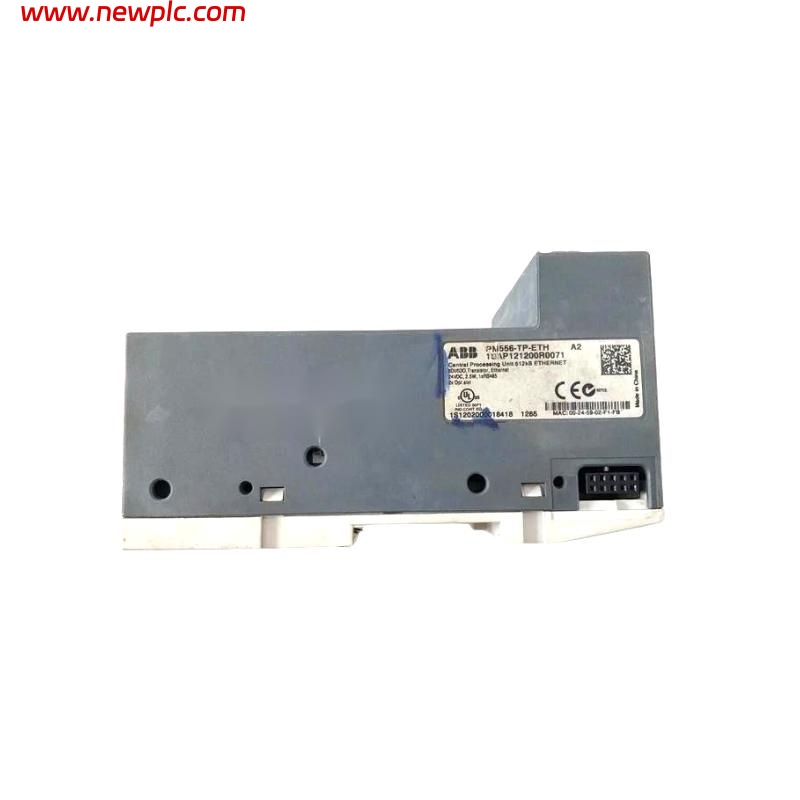

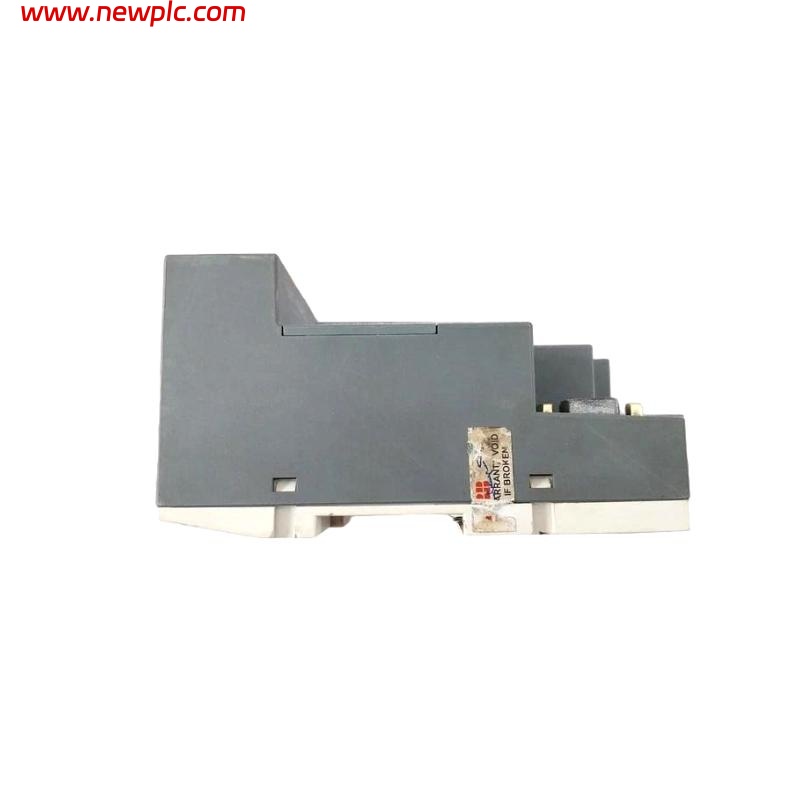

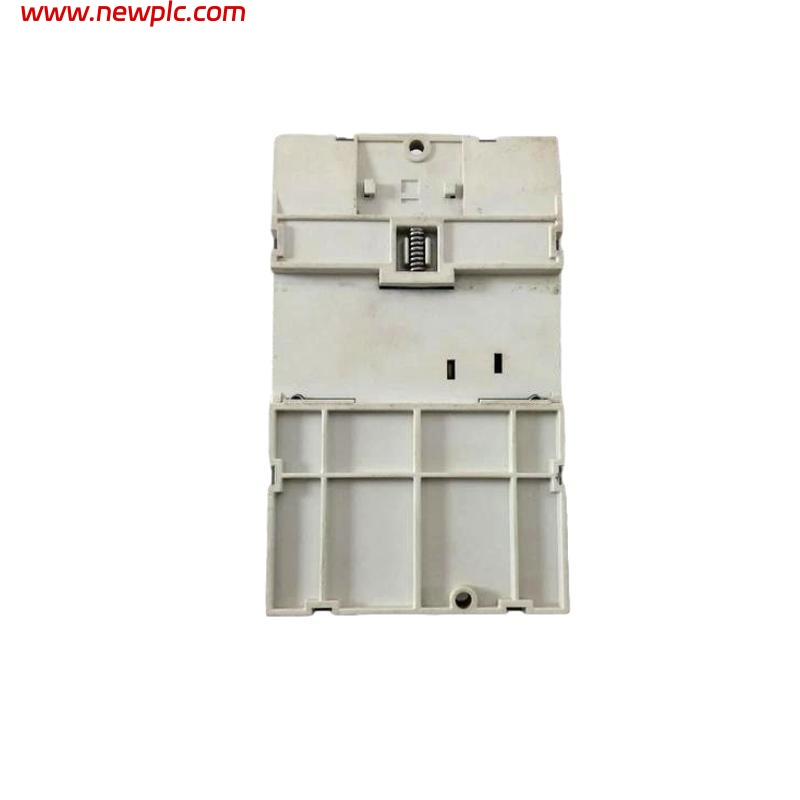

ABB PM556-TP-ETH 1SAP121200R0071 AC500 PLC Processor Module

FAQ

Q1: What programming languages does the PM556-TP-ETH support?
A1: It supports IL, FBD, LD, SFC, ST, and CFC standard PLC programming languages.

Q2: Does it come with an Ethernet interface?
A2: Yes, the PM556-TP-ETH is equipped with an onboard Ethernet interface.

Q3: Can it be mounted vertically?
A3: Yes, it supports both horizontal and vertical mounting, but vertical mounting requires reduced output load to 50%.

Q4: How many digital inputs and outputs does it support?
A4: It has 8 digital inputs and 6 transistor outputs onboard, expandable up to 320 inputs and 240 outputs.

Q5: Is a real-time clock or battery backup supported?
A5: Yes, an optional TA561-RTC accessory enables real-time clock functionality.

Q6: What is the enclosure protection rating?
A6: The enclosure has an IP20 protection rating when all modules and covers are properly installed.

Q7: What is the operating temperature range?
A7: 0°C to +60°C for horizontal mounting, and 0°C to +40°C for vertical mounting.

Q8: What are the dimensions and weight of the module?
A8: The dimensions are 74 × 135 × 82 mm, and the weight is approximately 0.35 kg.

1SAP121200R0071 ABB AC500 PLC PM556-TP-ETH Processor Module
