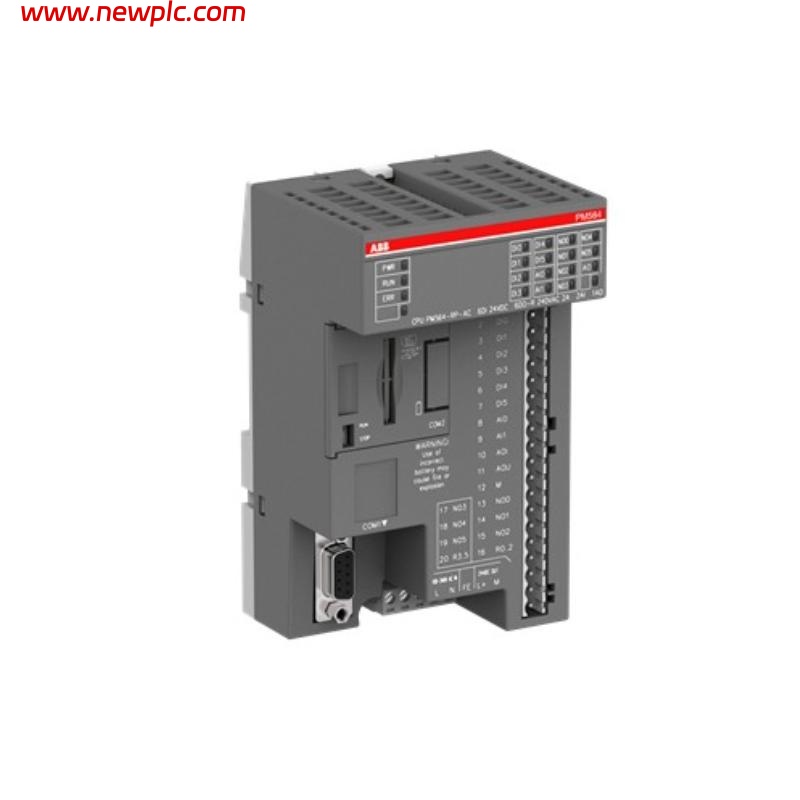

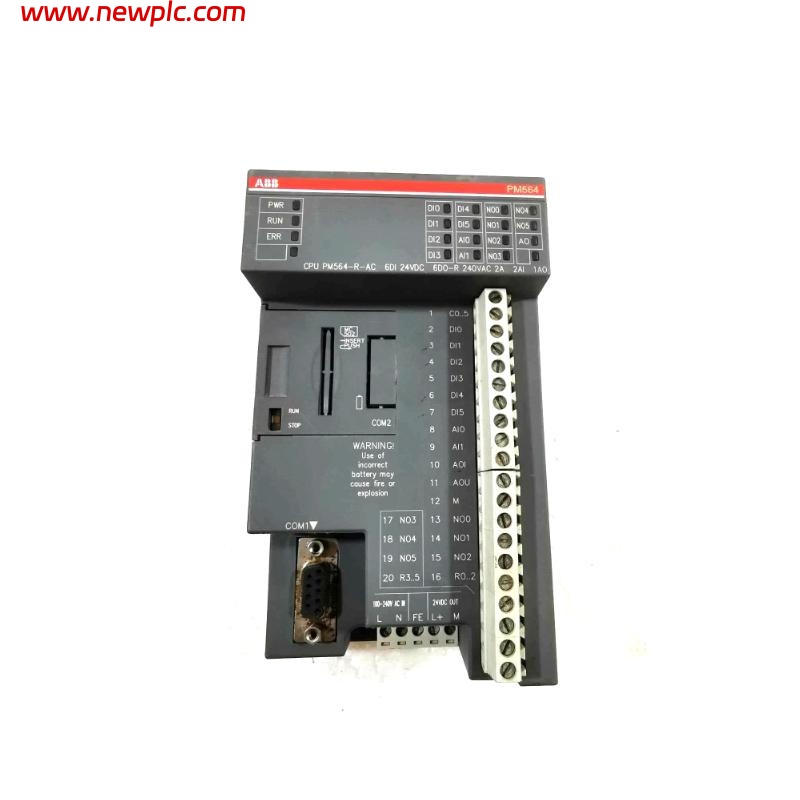

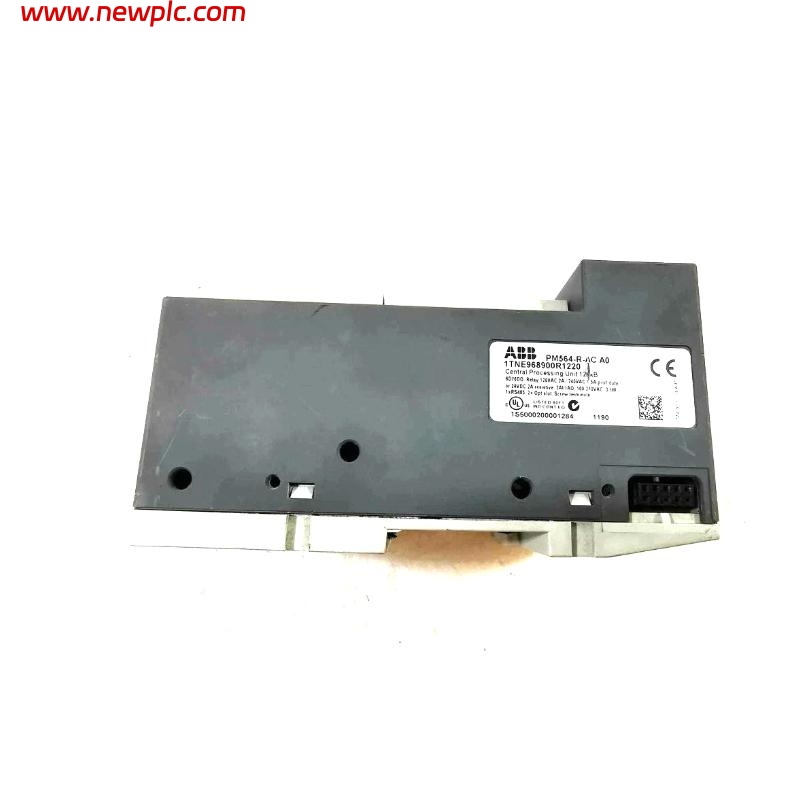

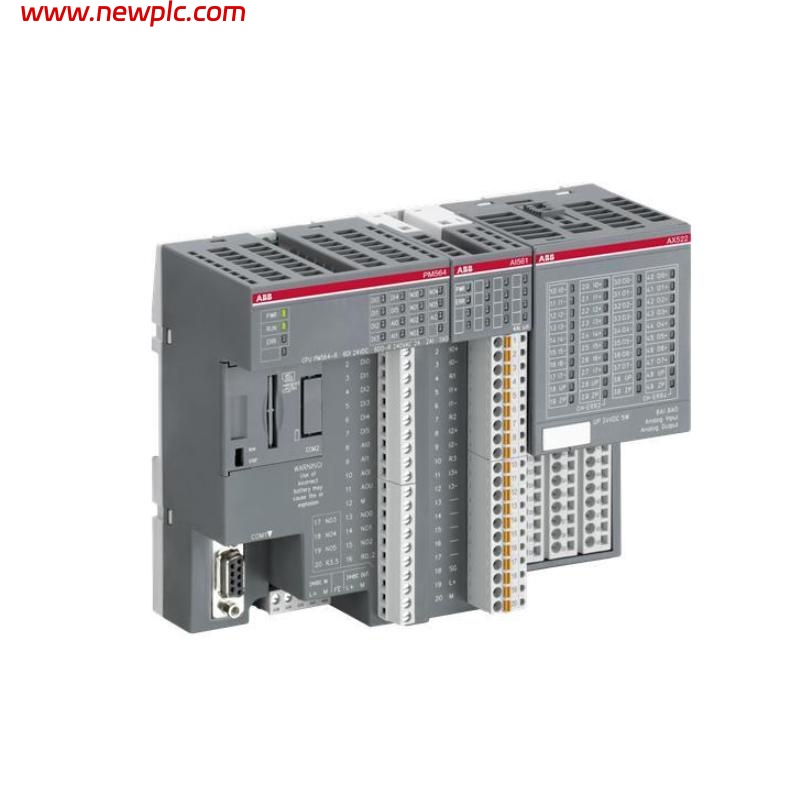

ABB PM564-R-AC 1TNE968900R1220 AC500 PLC Processor Module

FAQ

Q1: What is the operating voltage range of PM564-R-AC?
A1: The operating voltage range is 100–240 V AC.

Q2: Does the PM564-R-AC have an Ethernet interface?
A2: No, this model does not include an Ethernet interface. For Ethernet support, consider PM564-RP-ETH-AC.

Q3: How many digital inputs and outputs does it support?
A3: It has 6 digital inputs and 6 relay digital outputs.

Q4: What are the dimensions and weight of the module?
A4: The dimensions are 74 × 135 × 82 mm, and the weight is approximately 0.23 kg.

Q5: Which programming languages are supported?
A5: Supported languages include IL, LD, FBD, SFC, ST, and CFC according to IEC 61131-3.

Q6: Can the PM564-R-AC be mounted vertically?
A6: Yes, it can be mounted horizontally or vertically. For vertical mounting, output load should be reduced by 50%.

Q7: What is the operating temperature range?
A7: 0 … +60 °C for horizontal mounting, 0 … +40 °C for vertical mounting.

Q8: Does the module have a real-time clock or backup battery?
A8: An optional RTC module can provide a real-time clock with low-battery warning capability.

1TNE968900R1220 ABB AC500 PLC PM564-R-AC Processor Module
