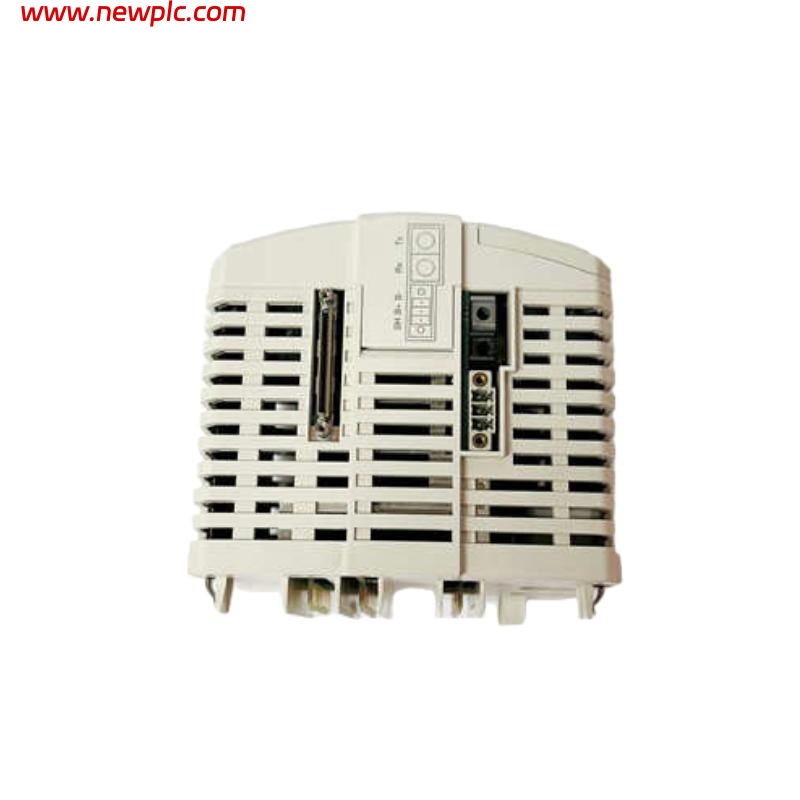

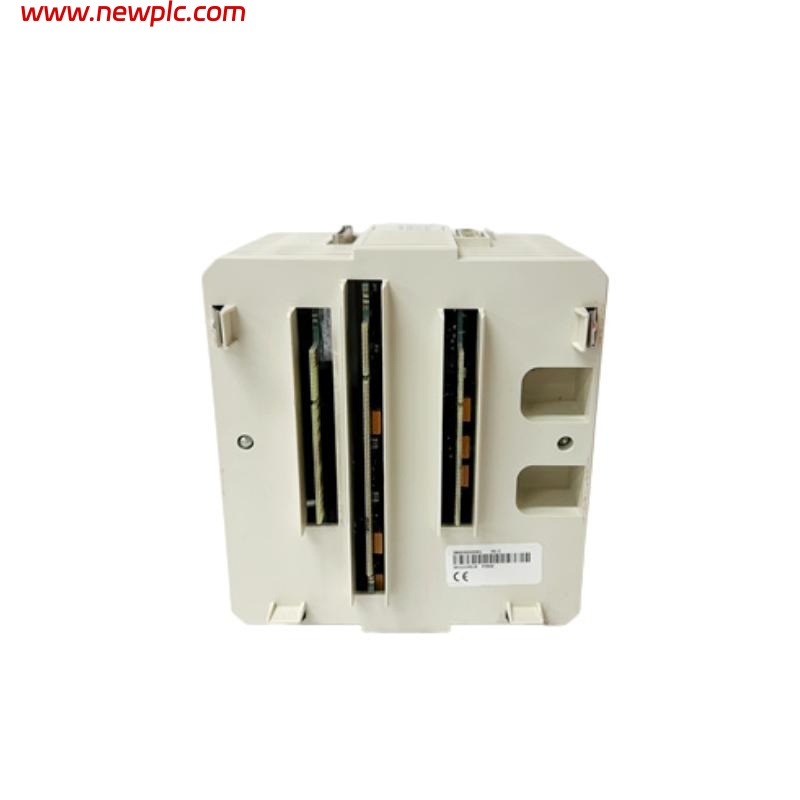

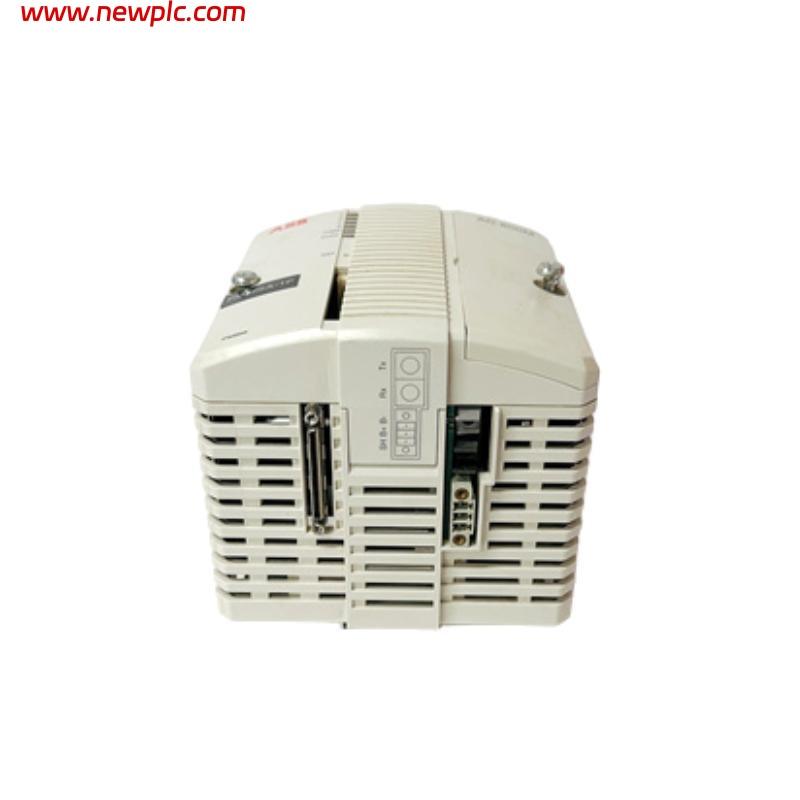

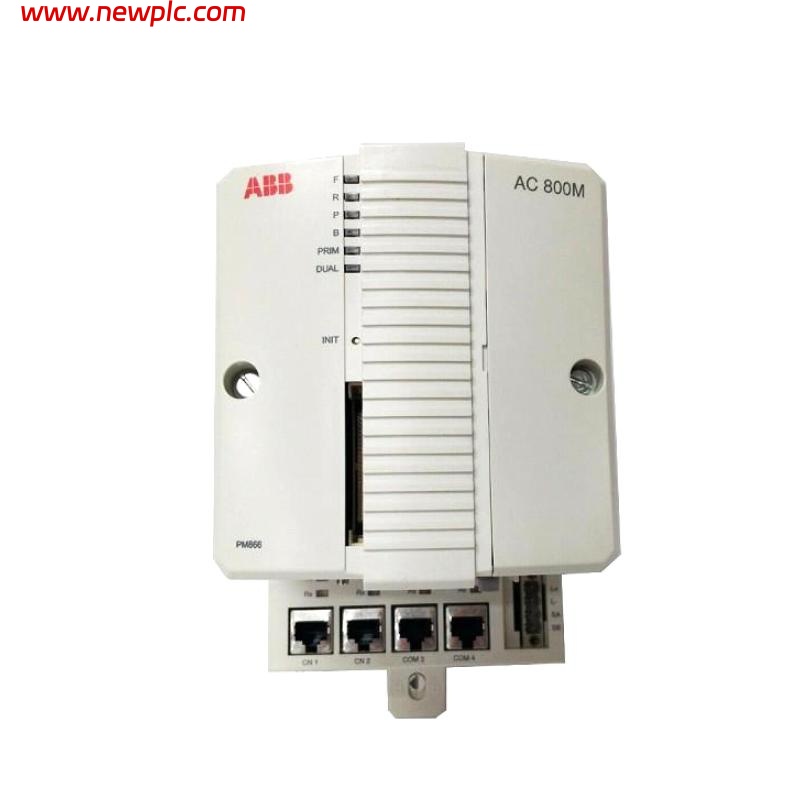

ABB PM866-2 3BSE050201R1 AC 800M Controllers Redundant Processor Unit

FAQ

• Q1: What type of redundancy configuration does the PM866-2 support?
  A1: The PM866-2 supports hot-standby redundancy in the AC 800M system, ensuring uninterrupted control in case of processor failure.

• Q2: How is the memory architecture organized for firmware and runtime data?
  A2: The unit uses 4 MB flash PROM for firmware storage and 64 MB SDRAM for runtime operations, providing fast execution and stable firmware retention.

• Q3: What are the power requirements for safe operation?
  A3: Typical power dissipation is 5.1 W, increasing to 8.6 W when supplying the ModuleBus and CEXBus. Input is via a four-pin connector (L+, L–, SA, SB).

• Q4: How is processor failure detected and handled?
  A4: Redundant units continuously monitor each other. In case of a failure, the standby processor immediately assumes control without process interruption.

• Q5: What is the maximum current draw under full load?
  A5: The maximum current consumption is 360 mA, excluding ModuleBus and CEXBus supply.

• Q6: Can the PM866-2 firmware be updated in situ?
  A6: Yes, firmware updates are performed via the flash PROM without removing the processor unit from the system.

• Q7: What environmental conditions must be maintained for reliable operation?
  A7: The unit is designed for industrial environments as specified in AC 800M hardware manuals, including specified temperature, humidity, and vibration limits.

• Q8: How are diagnostics and status monitoring performed?
  A8: Integrated diagnostics provide real-time monitoring through the AC 800M system, including status LEDs and system messages for fault detection.

3BSE050201R1 ABB AC 800M Controllers PM866-2 Redundant Processor Unit
