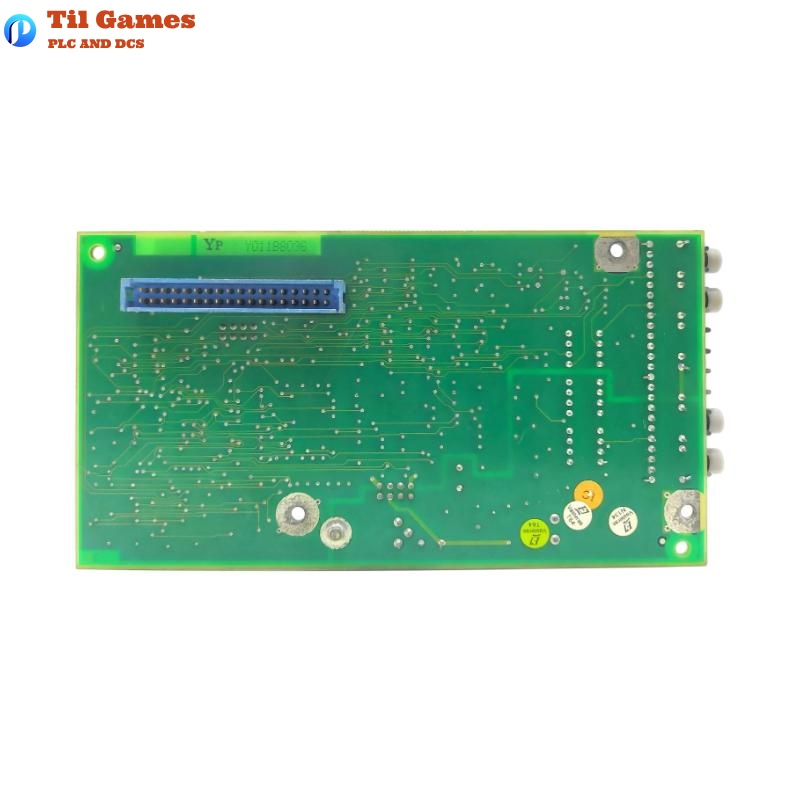

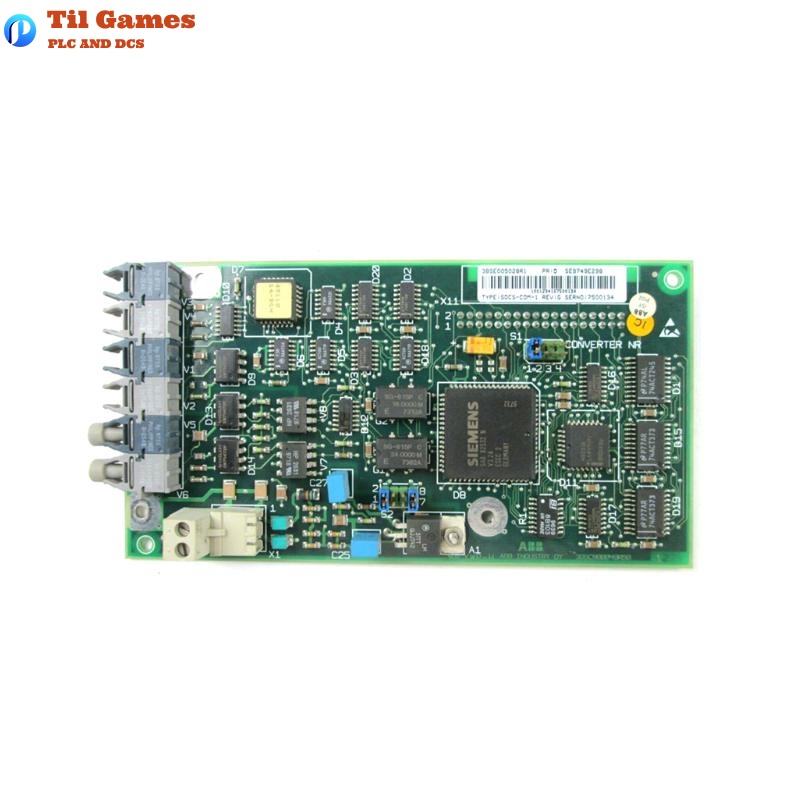

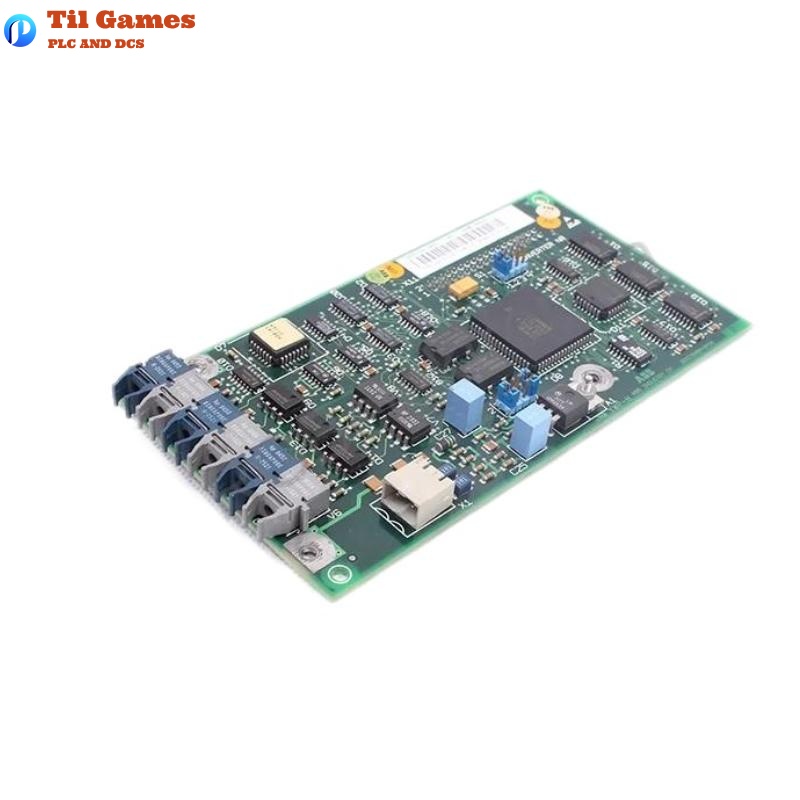

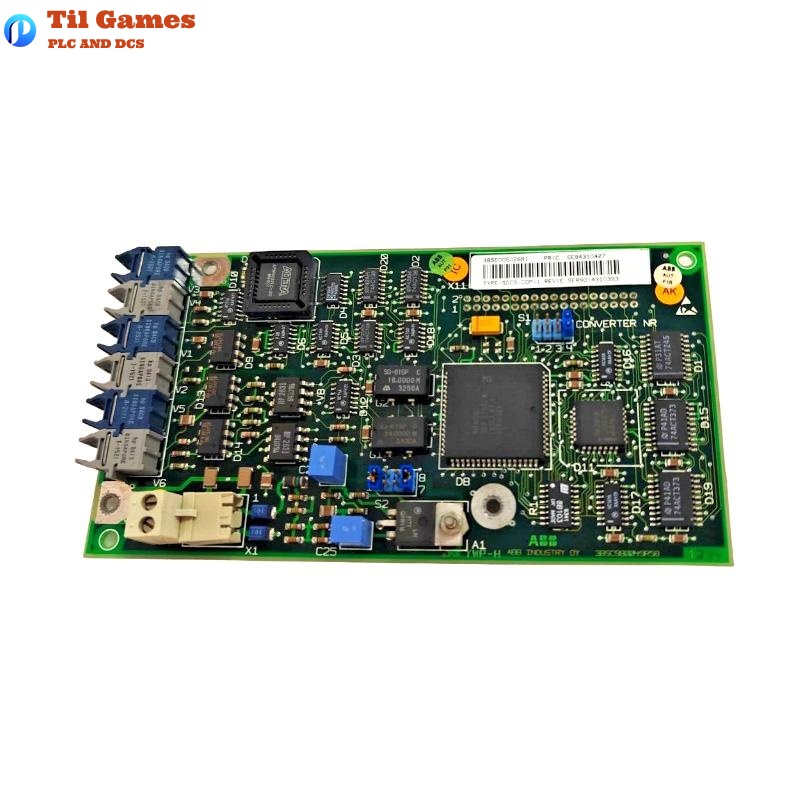

ABB SDCS-COM-1 3BSE005028R1 Communication Board

FAQ

Q1: What is the main function of the SDCS-COM-1 communication board?
A1: The SDCS-COM-1 serves as a communication interface for ABB’s DCS drive systems, enabling PC tool and control panel connectivity.

Q2: Which control boards is it compatible with?
A2: It is compatible with both SDCS-CON-1 and SDCS-CON-2 control boards.

Q3: Is the SDCS-COM-1 mandatory in all setups?
A3: Yes, it is required when using PC-based tools or control panels for system configuration or monitoring.

Q4: What drive systems support the SDCS-COM-1?
A4: It supports DCS 500, DCS 500B, DCP 500, DCP 500B, and DCS 600 drive systems.

Q5: What type of communication media does it use?
A5: It uses optical fiber for high-speed and noise-immune serial communication.

Q6: How does SDCS-COM-1 differ from SDCS-COM-5?
A6: The COM-5 is a newer, enhanced version and is typically recommended for use with SDCS-CON-2 control boards, while SDCS-COM-1 is a basic version.

Q7: What are its physical dimensions?
A7: The module measures 153.6 x 83.5 x 20 mm.

Q8: What is the weight of the unit?
A8: It weighs approximately 0.24 kilograms.
