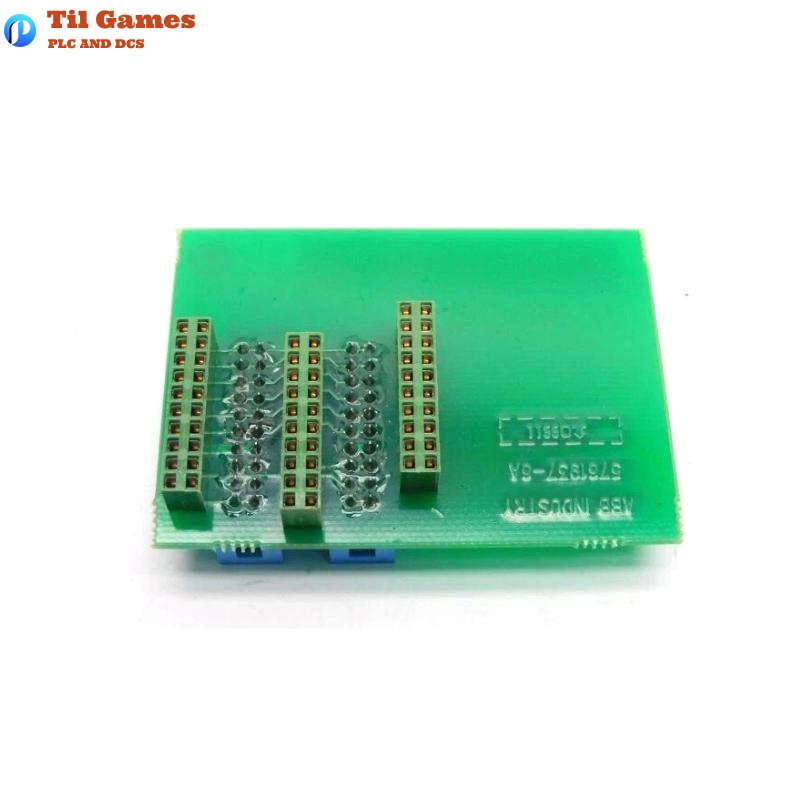

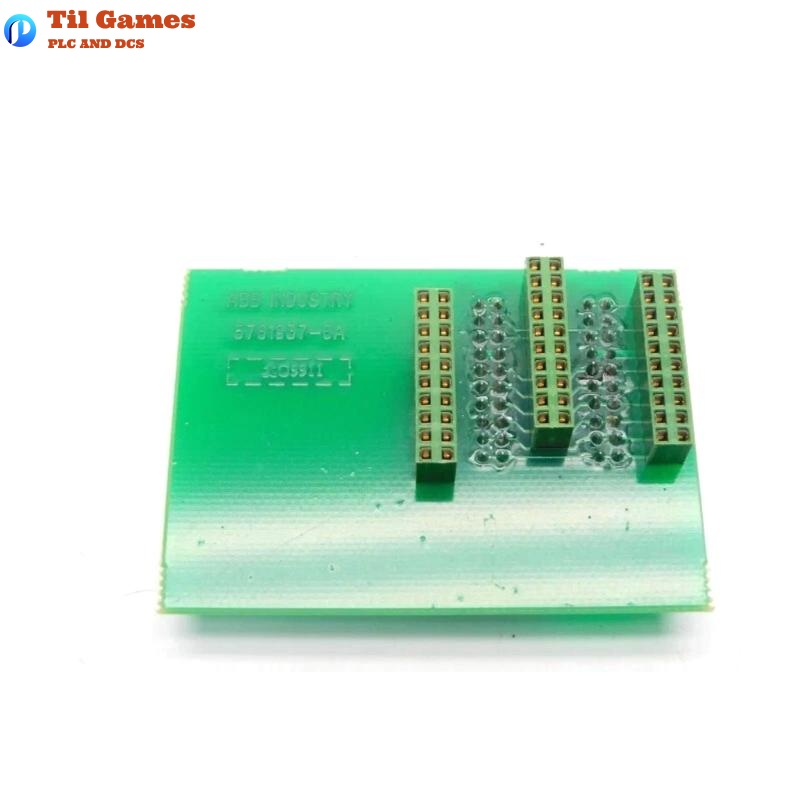

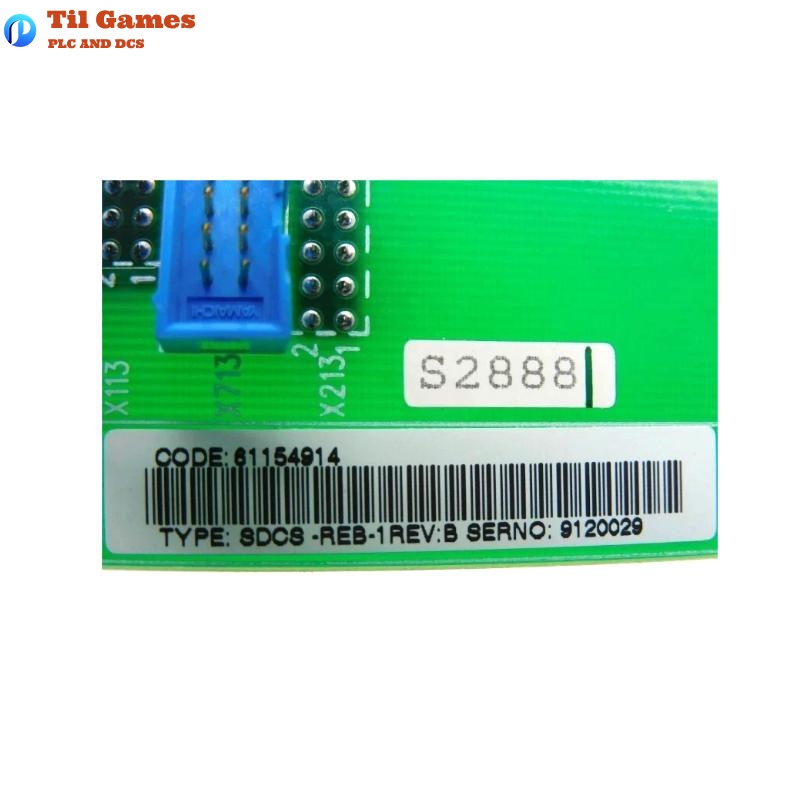

ABB SDCS-REB-1C Interface Board

FAQ

Q1: What is the function of the SDCS-REB-1C board?
A1: The SDCS-REB-1C routes firing pulse signals to the correct thyristors in both forward and reverse bridges within a DC drive system.

Q2: What boards must the SDCS-REB-1C interface with?
A2: It interfaces directly with the SDCS-PIN-51 and indirectly with the SDCS-PIN-41 for pulse transmission.

Q3: How are the outputs of the board connected?

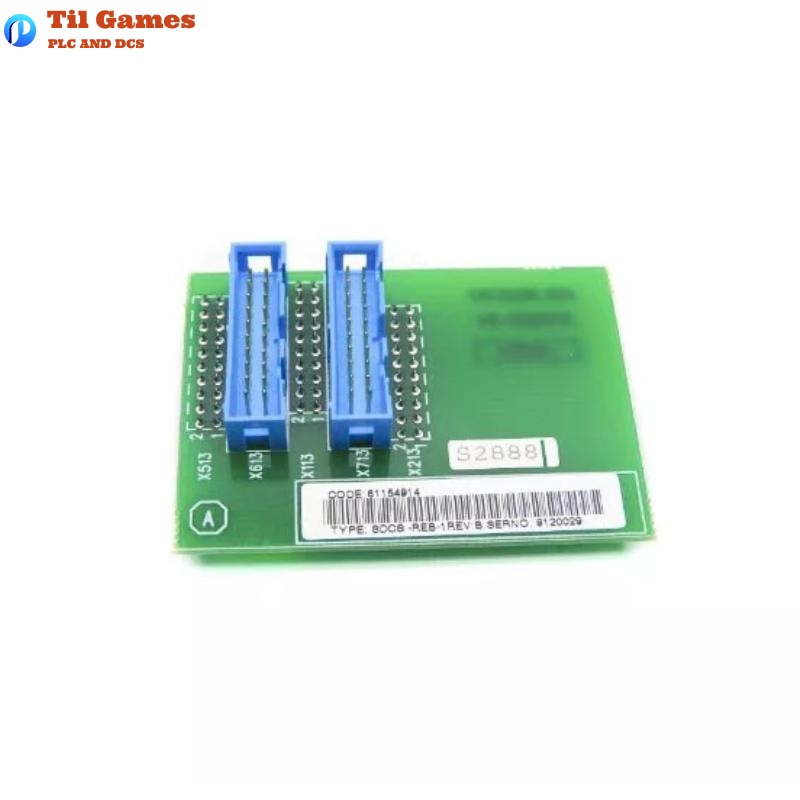

A3: Outputs are routed to connectors X613 for forward and X713 for reverse thyristor firing pulse transmission.

Q4: Can this board handle both 2-quadrant and 4-quadrant operation?
A4: Yes, it supports both modes depending on configuration with REB-2 or REB-3 when multiple bridges are used.

Q5: What kind of mounting is required?
A5: The board must be mounted using conductive metal standoffs at six M4 screw points with appropriate insulation clearance.

Q6: What kind of signal directionality does the board handle?
A6: It uses SR1 and SR2 signals to control direction-specific thyristor firing via channel grouping (ACE/BDF).

Q7: Is the SDCS-REB-1C sufficient for multi-bridge configurations?
A7: No, for multi-bridge applications, additional boards like SDCS-REB-2 and SDCS-REB-3 are required.

Q8: What precautions should be taken during installation?
A8: Ensure signal paths are correct and gate leads are within 1 meter to minimize interference and ensure accurate thyristor firing.
