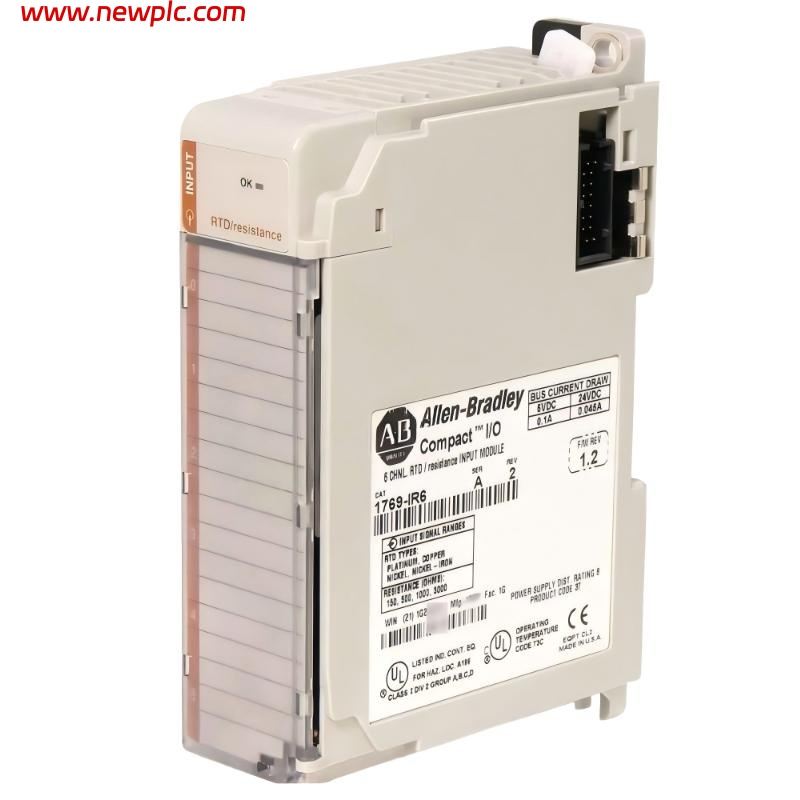

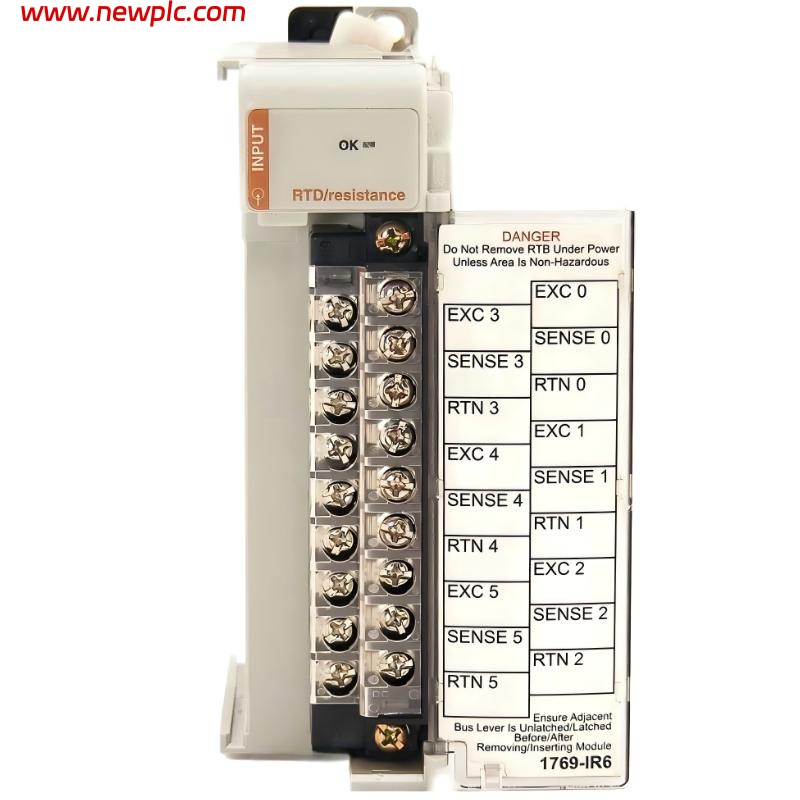

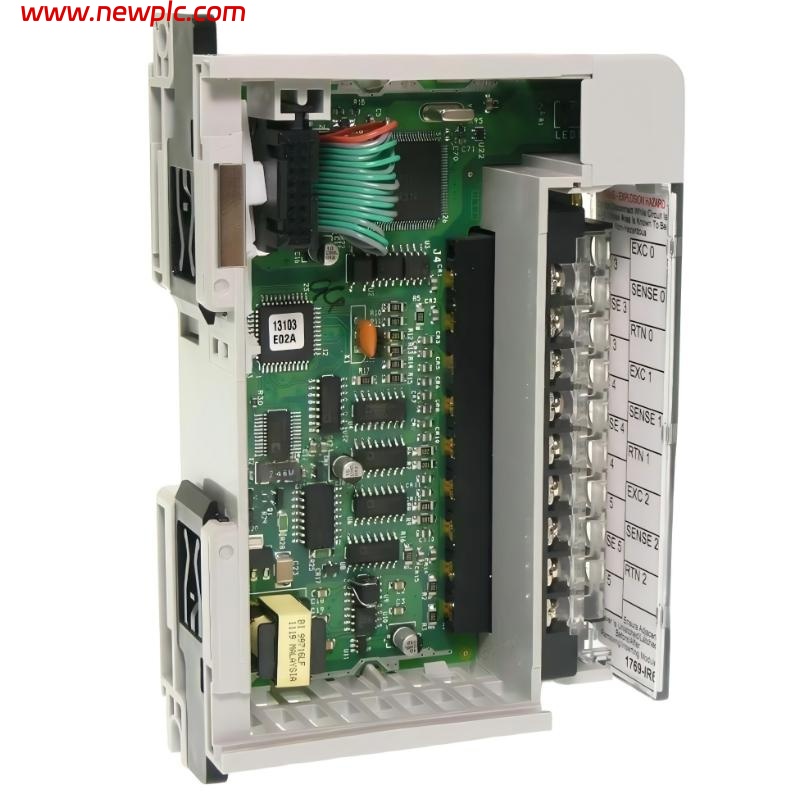

Allen Bradley 1769-IR6 Analog RTD / resistance input module

FAQ

Q1. What is the 1769-IR6 used for?
It is used to measure temperature and resistance signals from RTD sensors in industrial control systems.

Q2. How many input channels does it have?
It provides 6 individually configurable input channels.

Q3. What types of sensors are supported?
It supports RTD sensors such as platinum, nickel, and nickel-iron types, as well as resistance inputs.

Q4. What resistance ranges can it measure?
It supports 0–150 Ω, 0–500 Ω, 0–1000 Ω, and 0–3000 Ω ranges.

Q5. What is the measurement accuracy?
The module typically provides ±0.05% nonlinearity performance.

Q6. Does it support fault detection?
Yes, it supports open-circuit and short-circuit detection on input channels.

Q7. What are its physical size and weight?
It measures 118 mm × 35 mm × 87 mm and weighs approximately 0.24 kg.

Q8. What is its typical application?
It is commonly used in industrial automation systems for precise temperature monitoring and resistance measurement.
