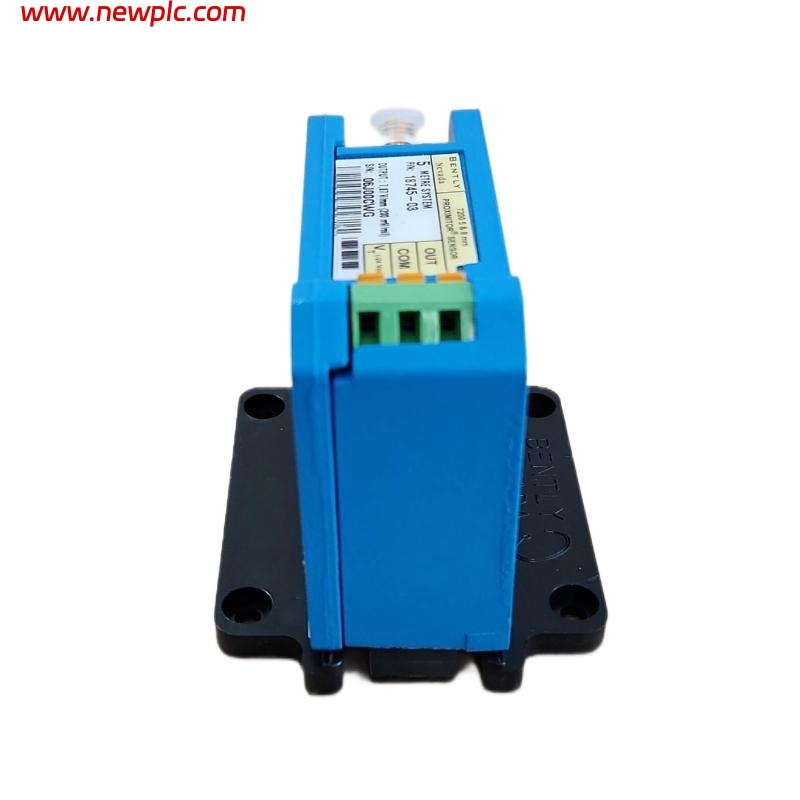

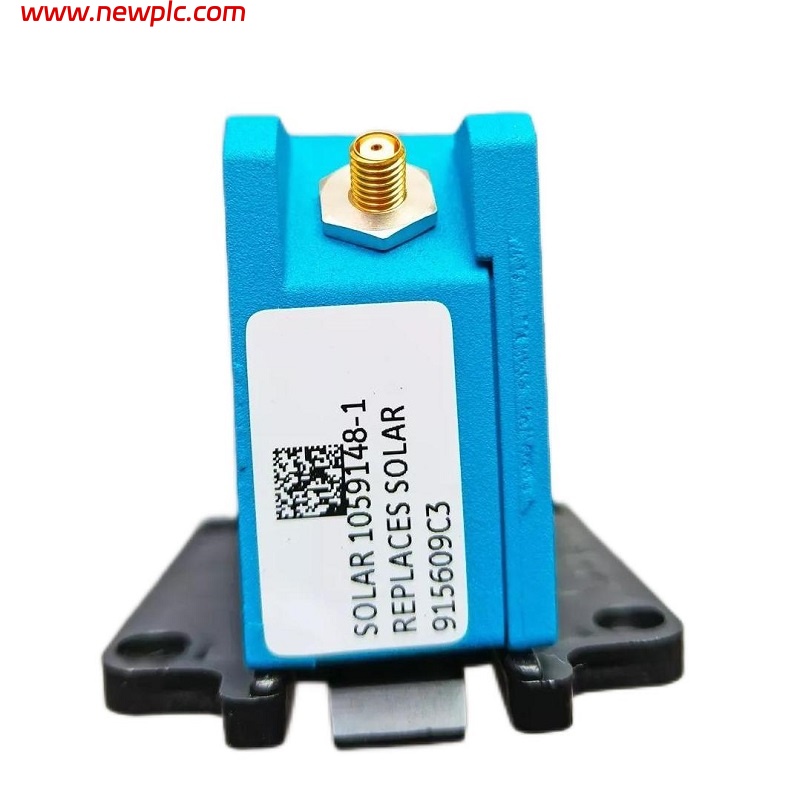

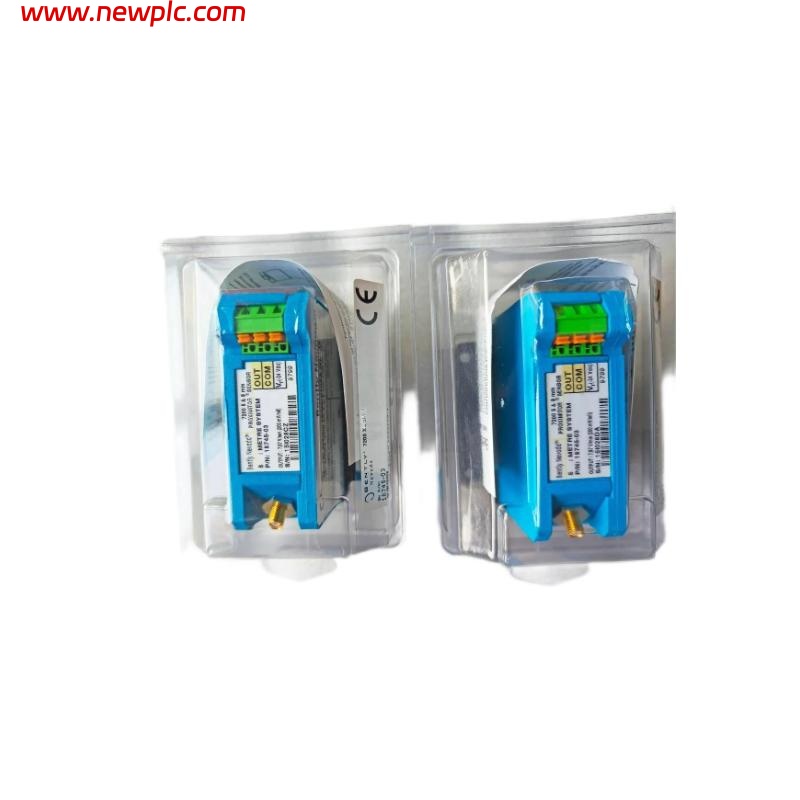

Bently Nevada 18745-01 Proximitor Sensor (7200 Series, either 5 mm or 8 mm probe variant)

FAQ

Q1: What is the purpose of the 18745-01 Proximitor sensor?
A1: It is used to measure static and dynamic distances (gap) between a probe tip and a target, typically for shaft position and vibration monitoring in rotating machinery.

Q2: What probe diameter does this model use?
A2: The “-01” variant typically uses a 5 mm diameter probe.

Q3: What is the supply voltage for this sensor?
A3: The sensor is powered by –18 V to –24 V DC.

Q4: What is the scale factor (output sensitivity) of the sensor?
A4: The output is 200 mV per mil of gap, which is approximately 7.87 mV per micrometer.

Q5: What is the linear measurement range?
A5: The sensor has a linear response over approximately 10 to 15 mils (≈ 250 to 380 µm) of gap.

Q6: What is the frequency response of the sensor?
A6: It covers from direct current (0 Hz) up to about 10 kHz.

Q7: What are the physical size and weight of the unit?
A7: Dimensions are circa 81.3 mm × 61.2 mm × 63.5 mm, and the weight is approximately 0.10 kg.

Q8: In what temperature range can the sensor operate?
A8: It is rated for operation from –50 °C to +100 °C, making it suitable for a wide range of industrial environments.

18745-01 Bently Nevada
