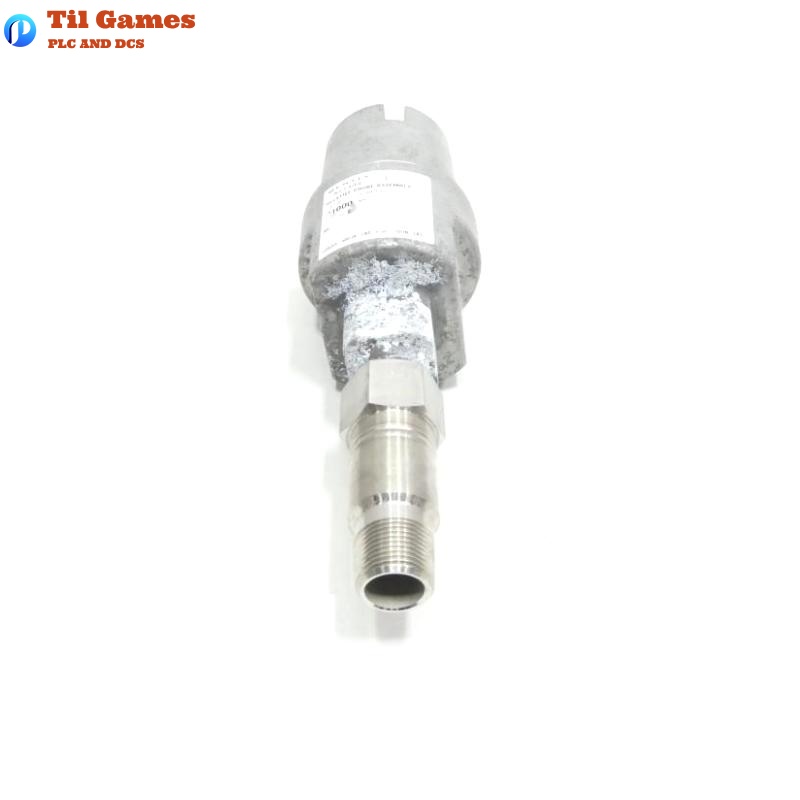

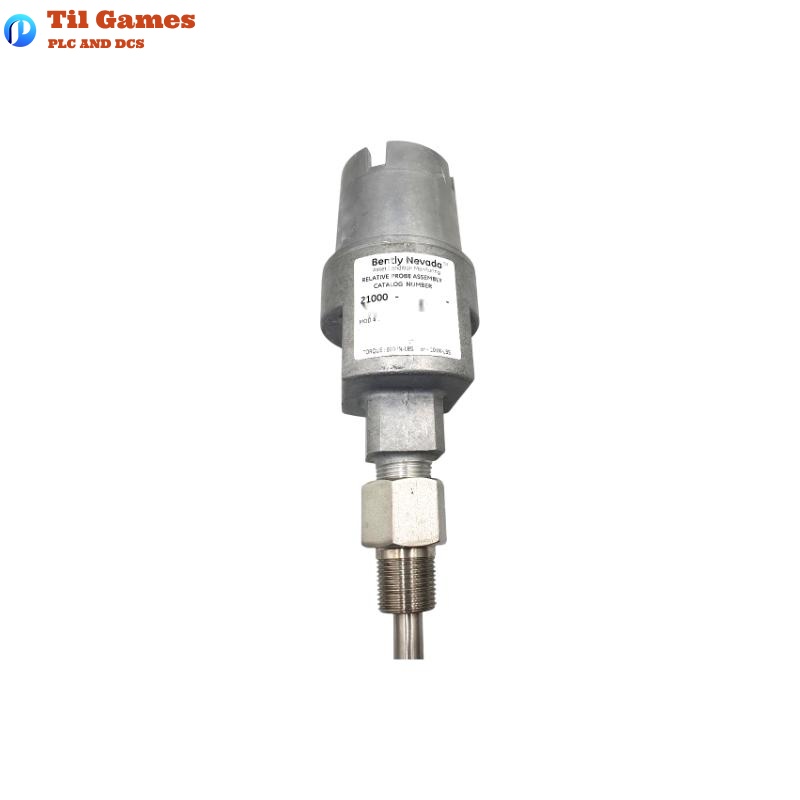

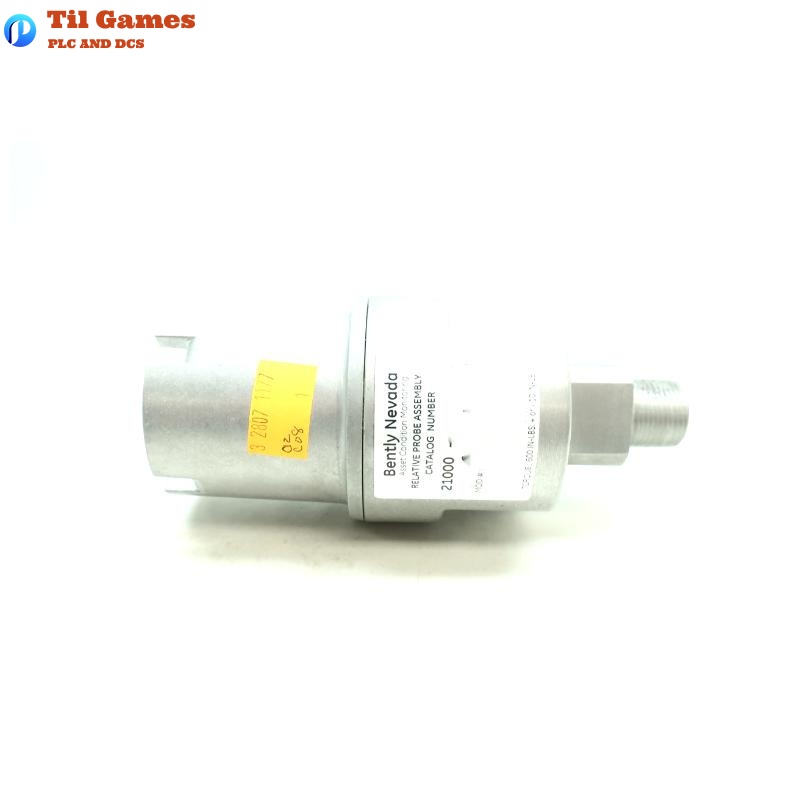

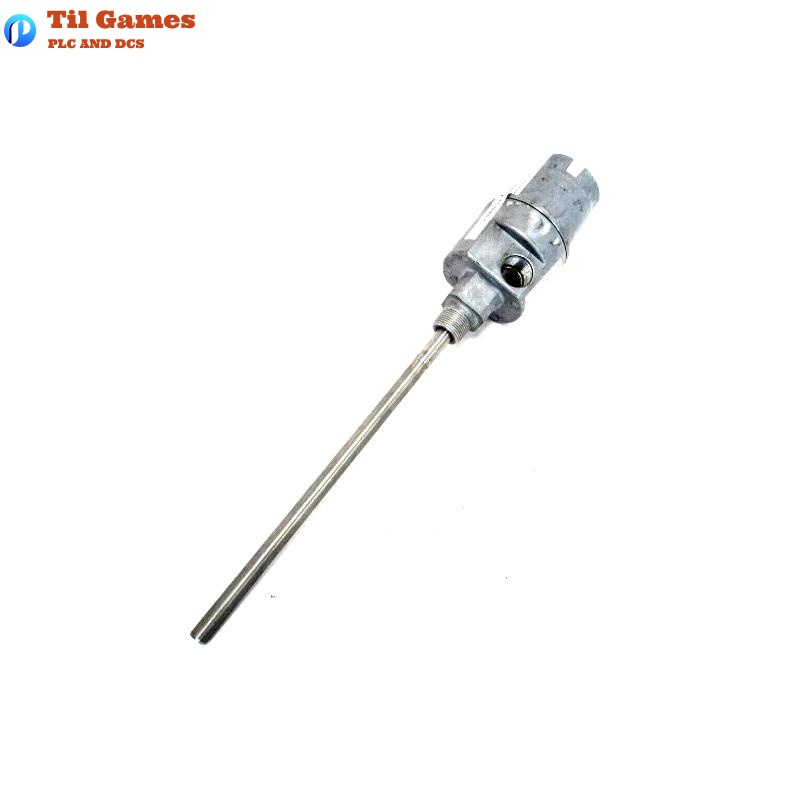

Bently Nevada 21000-16-10-15-088-03-02 Proximity Probe Housing Assemblies

FAQ

Q1: What material is used for the housing of the 21000 series?
A1: The housing is made of aluminum with a 304 stainless steel sleeve for corrosion resistance.

Q2: What is the body diameter and weight of the 21000 proximity probe housing?
A2: The housing body diameter is 83.3 mm and the typical weight is 1.1 kg.

Q3: What probes are compatible with the 21000 proximity probe housing?
A3: The housing is compatible with 3300 XL 8mm, 3300 XL NSv, 3300 XL 11mm, and 420 nuclear probes.

Q4: What is the maximum operating temperature for the 21000 housing assembly?
A4: The operating temperature range is -51°C to +177°C.

Q5: Is the 21000 housing assembly explosion-proof and certified for hazardous areas?
A5: Yes, it is certified by CSA as explosion-proof and compliant with API 670 and RoHS standards.

Q6: How do I specify the sleeve length and probe penetration when ordering?
A6: Sleeve length and probe penetration are determined by options C and D in the part number and are customizable according to installation requirements.

Q7: What mounting thread options are available for the 21000 series?
A7: Mounting threads include as cast (no thread), 3/4-14 NPT, 1-11 1/2 NPT, 1/2-14 BSP, and 7/8-14 UNF-2A.

Q8: What should I do if the required sleeve length exceeds 304 mm (12 inches)?
A8: If the sleeve length is greater than 304 mm, additional sleeve support should be used to minimize vibration and maintain system stability.

21000-16-10-15-088-03-02 Bently Nevada Proximity Probe Housing Assemblies
