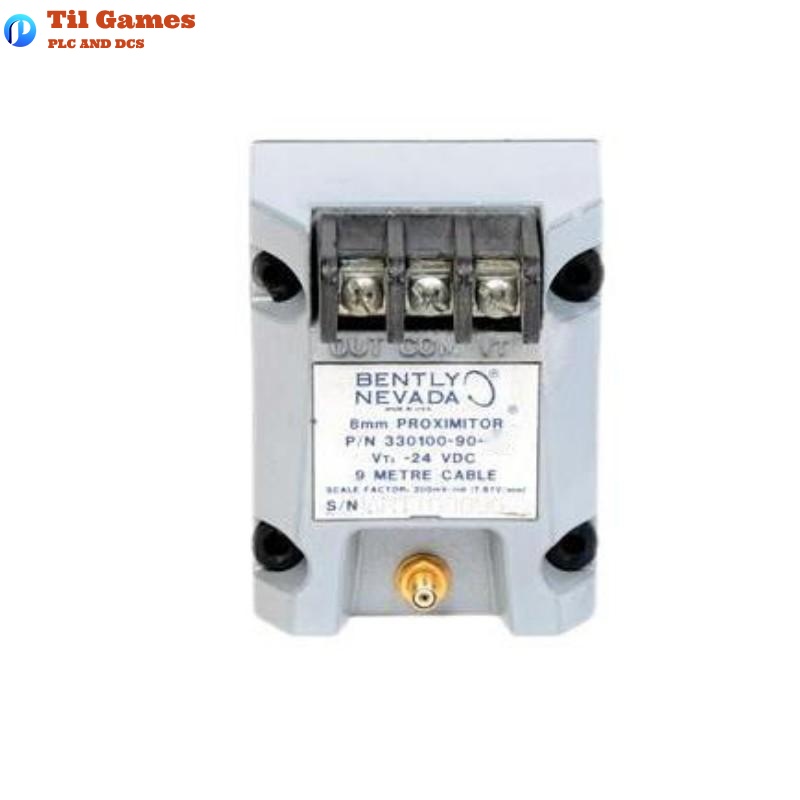

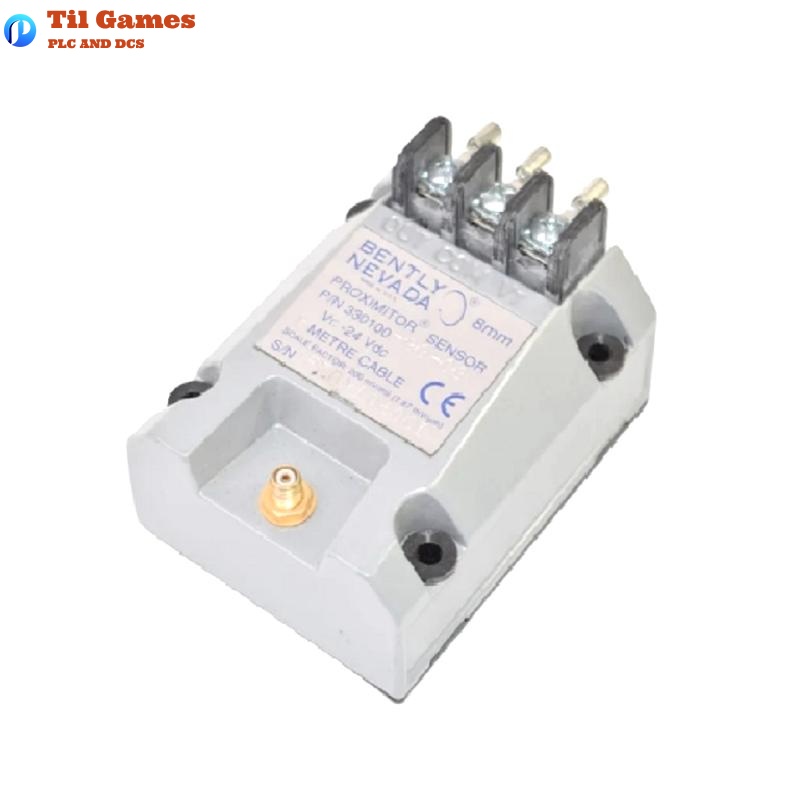

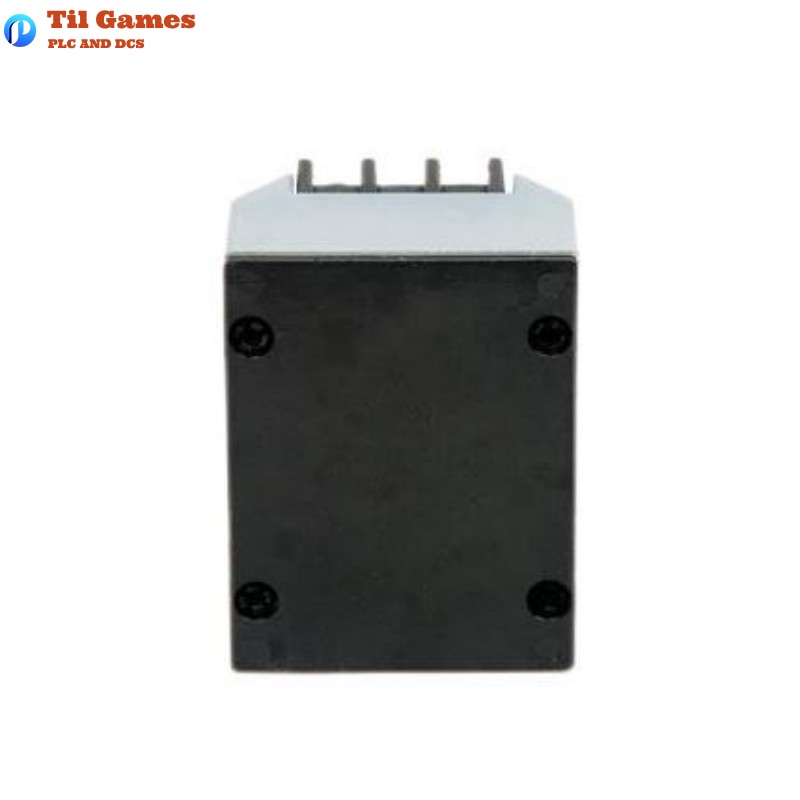

Bently Nevada 330100-90-02 3300 Proximitor Sensor

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 330100-90-02 Proximitor Sensor?
A1: It measures shaft vibration and position by detecting changes in the distance between the probe tip and a metallic surface.

Q2: Can the 330100 sensor be used with both 5 mm and 8 mm probes?
A2: Yes, it supports 3300 5 mm, 3300 8 mm, and 3300 XL 8 mm probes.

Q3: What is the recommended gap setting for accurate measurements?
A3: The recommended gap setting is 1.27 mm (50 mils).

Q4: What are the environmental limits of the sensor?
A4: Operating temperature is -51°C to +100°C, with 100% condensing humidity resistance when connectors are protected.

Q5: Is it suitable for hazardous environments?
A5: Yes, with appropriate barriers or isolators, it is certified for use in Class I, Division 1 and 2, and Zone 0/1/2 hazardous areas.

Q6: What is the length of the sensor system?
A6: The total length of this model is 9.0 meters.

Q7: Can the components be mixed from XL and non-XL series?
A7: Yes, but performance is limited to the non-XL specifications.

Q8: What material is the probe tip made of?
A8: It is made of polyphenylene sulfide (PPS), known for high temperature and chemical resistance.

3300 Proximitor Sensor 330100-90-02 Bently Nevada
