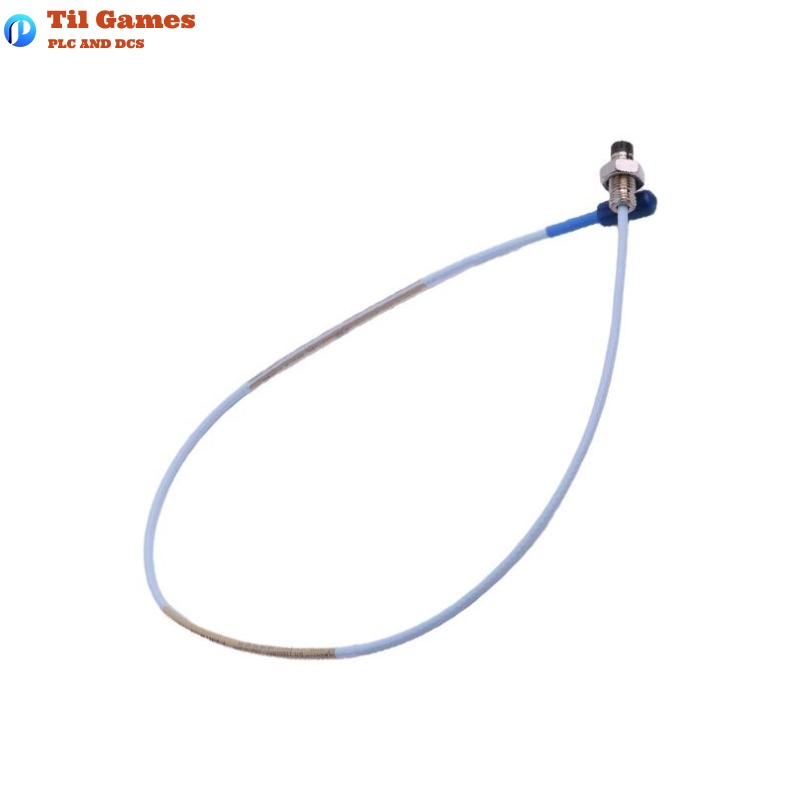

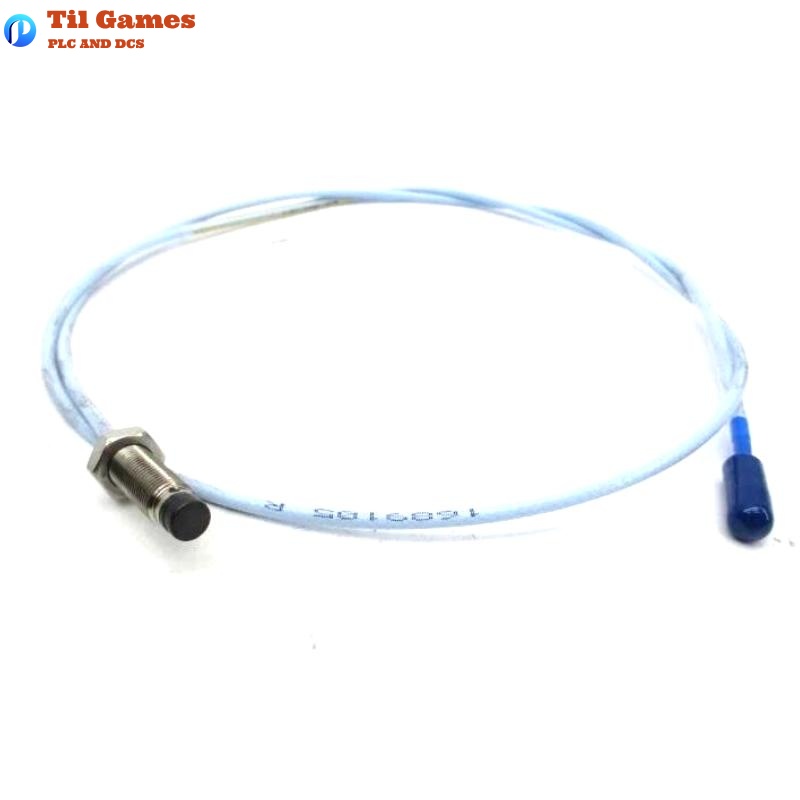

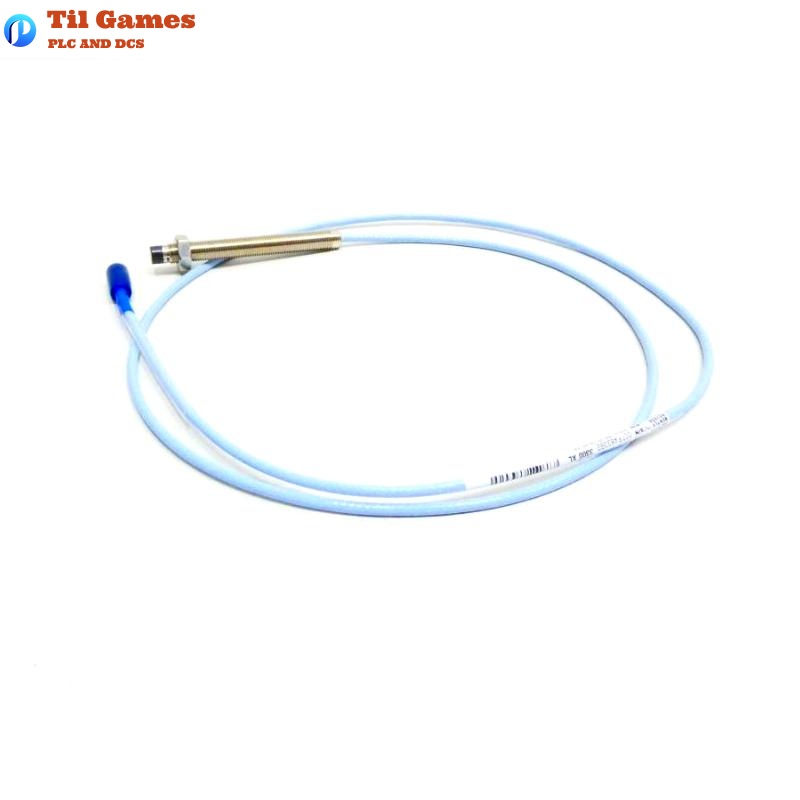

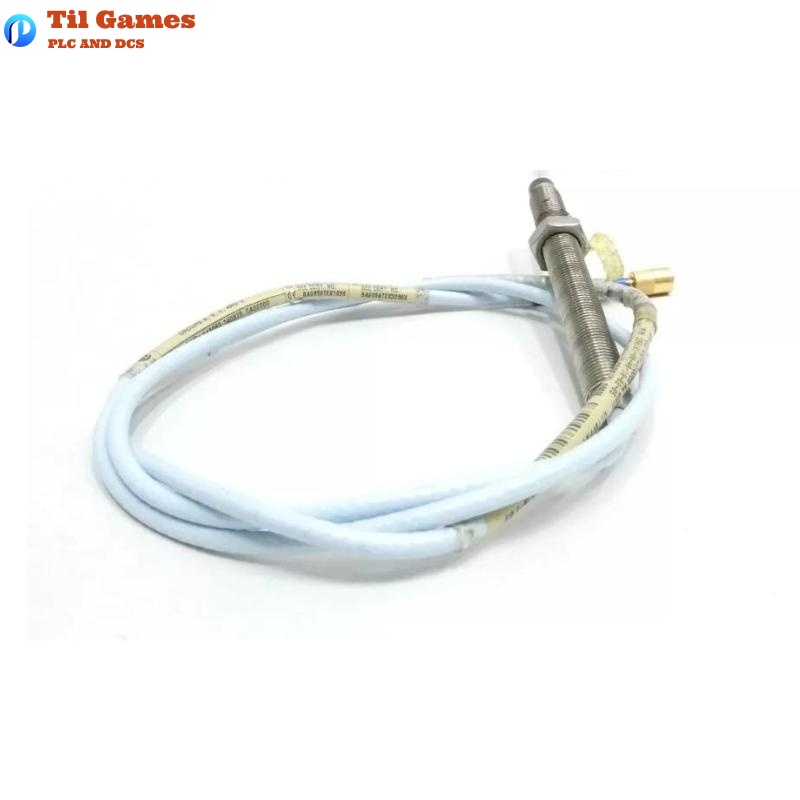

Bently Nevada 330101-00-53-10-02-05 3300 XL 8 mm Proximity Probe

FAQ

Q1: What is the total length and weight of the probe?
A1: The total length is 1.0 meter, and the weight is 0.323 kg.

Q2: What types of measurements is this probe designed for?
A2: It is designed for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

Q3: Is the probe compliant with API 670 standards?
A3: Yes, it fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.

Q4: What is the recommended gap voltage for installation?
A4: The recommended gap voltage is -9 VDC, which corresponds to approximately 1.27 mm (50 mils) distance from the target.

Q5: What is the operating temperature range of the probe?
A5: The operating and storage temperature range is -52°C to +177°C.

Q6: Are special tools required to install the connectors?
A6: No, the ClickLoc connectors are designed for tool-free installation using only finger-tight torque.

Q7: Is the probe interchangeable with other systems?
A7: Yes, it is fully interchangeable with 3300 series non-XL 5 mm and 8 mm components, both physically and electrically.

Q8: Does the system support long-distance field wiring?
A8: Yes, the system supports up to 305 meters (1000 feet) of field wiring, but high-frequency signal attenuation should be considered.
