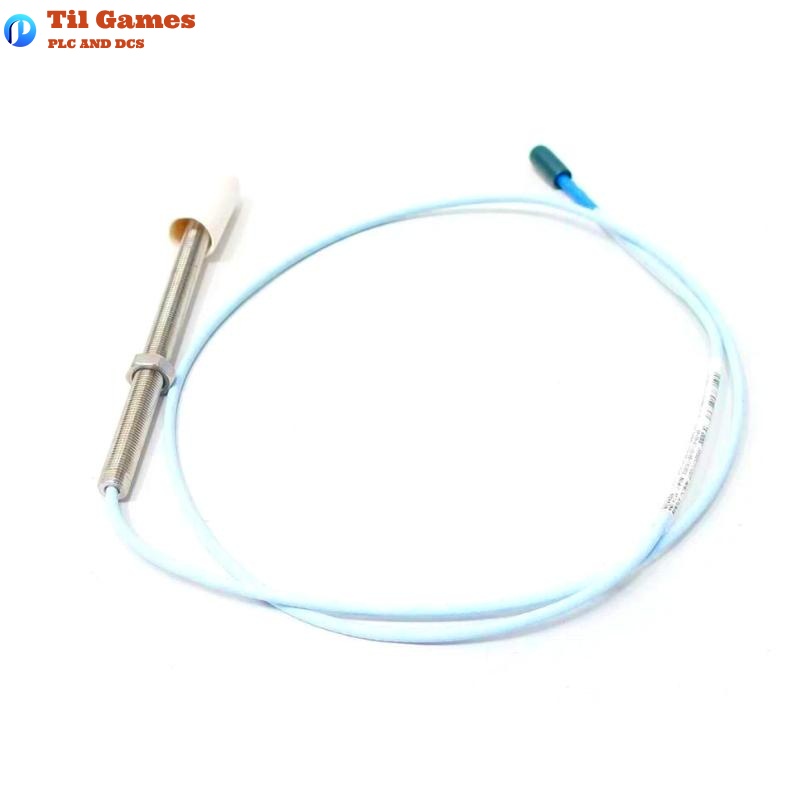

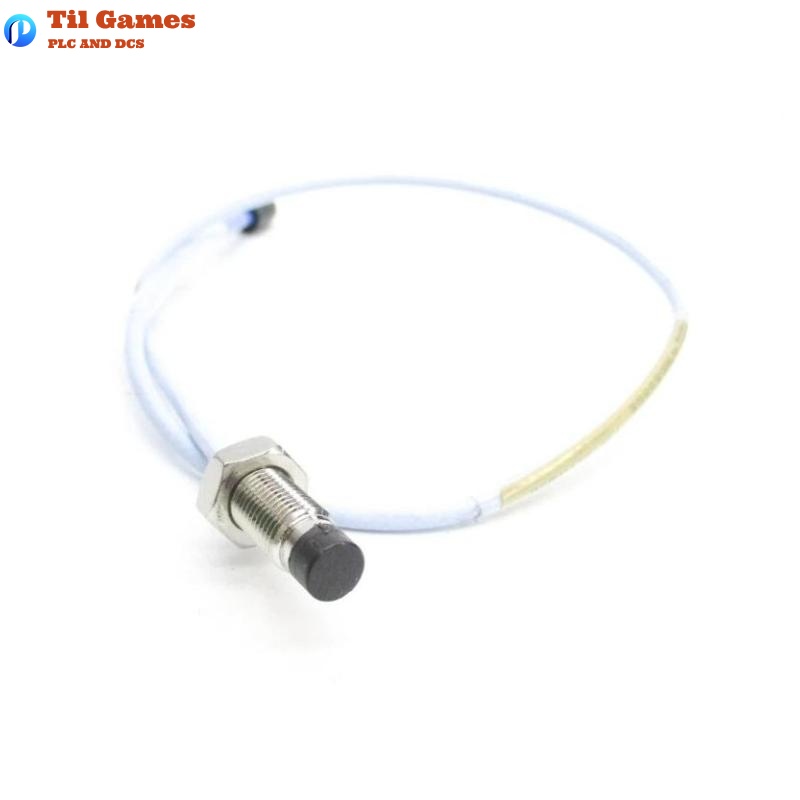

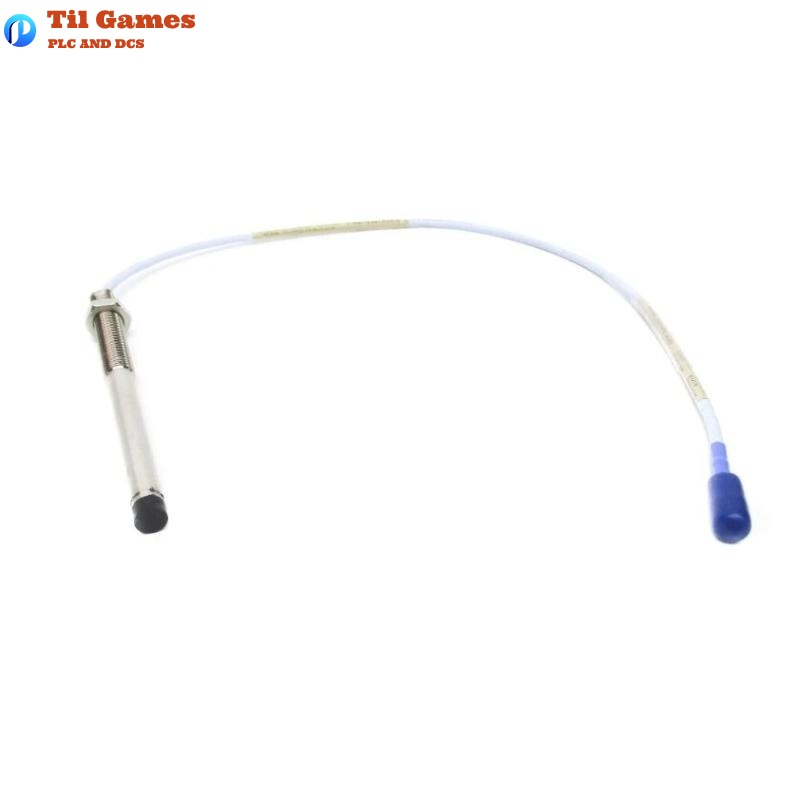

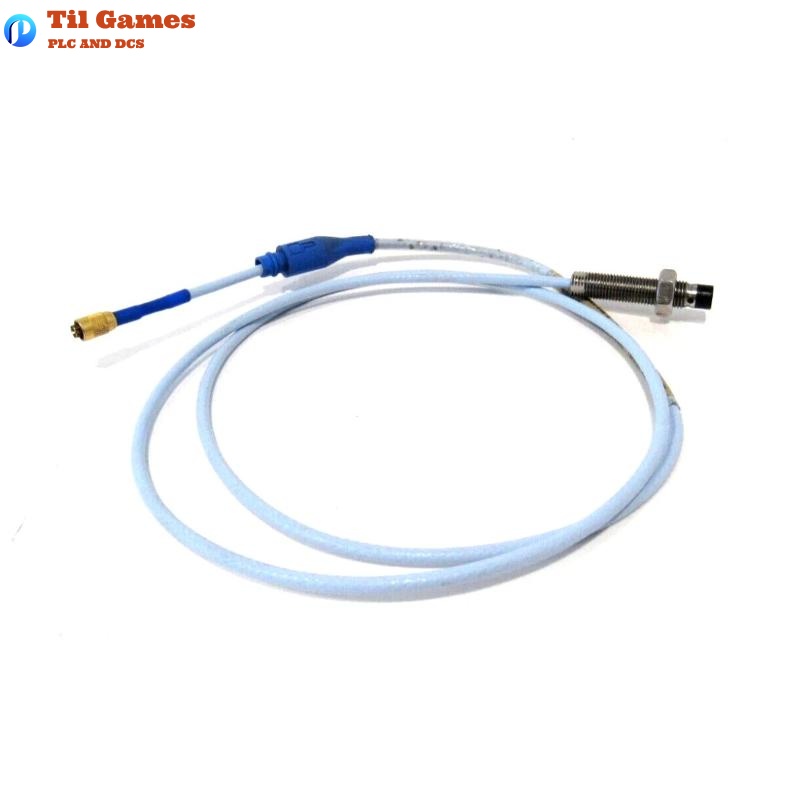

Bently Nevada 330101-20-36-10-02-00 3300 XL 8 mm Proximity Probe

FAQ

Q1: Is the output voltage of this probe linear?
A1: Yes, the 330101-20-36-10-02-00 probe provides a linear output over a 2 mm range (0.25–2.3 mm), with a maximum deviation of ±0.025 mm for 1-meter systems.

Q2: Can this probe be used interchangeably with non-XL 3300 series components?
A2: Yes, it is both electrically and physically interchangeable, but system performance will be limited to the non-XL components.

Q3: Is the probe suitable for high-temperature applications?
A3: The standard model supports up to 177°C. For higher temperatures (up to 218°C), the ETR version is recommended.

Q4: Is the cable oil-resistant?
A4: Yes, an optional FluidLoc cable version is available to prevent oil migration through the cable core.

Q5: Does the probe system require on-site calibration?
A5: No, the 3300 XL 8 mm system components are fully interchangeable and factory-calibrated.

Q6: Does input voltage variation affect measurement accuracy?
A6: The supply sensitivity is less than 2 mV/V, meaning voltage fluctuations have minimal impact.

Q7: Is the probe certified for hazardous environments?
A7: Yes, it supports CSA, ATEX, and IECEx approvals for use in hazardous areas.

Q8: What is the minimum cable bend radius?
A8: The minimum recommended bend radius is 25.4 mm. Avoid tighter bends to prevent cable damage.
