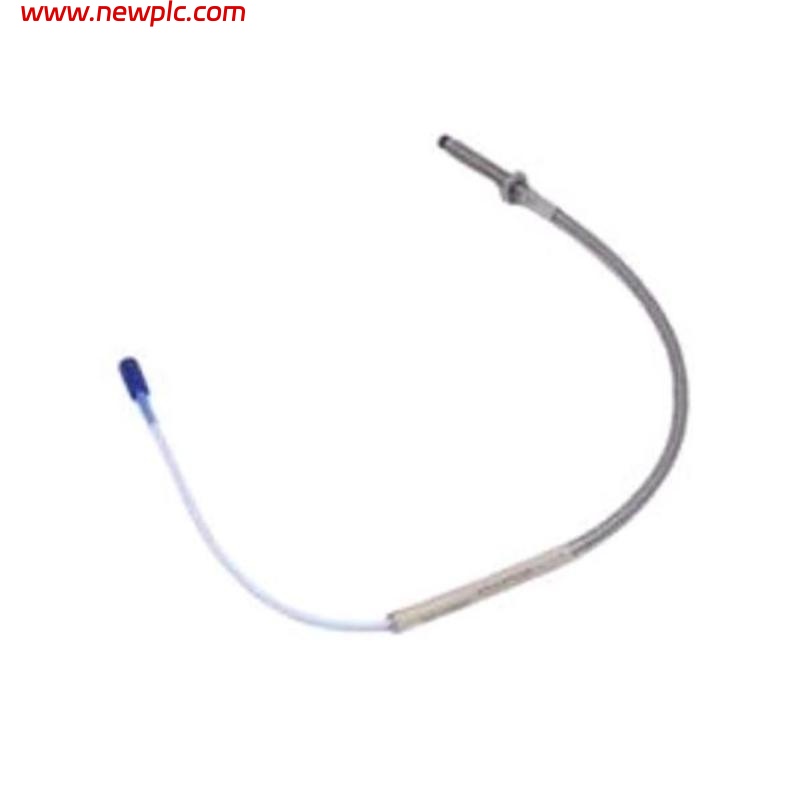

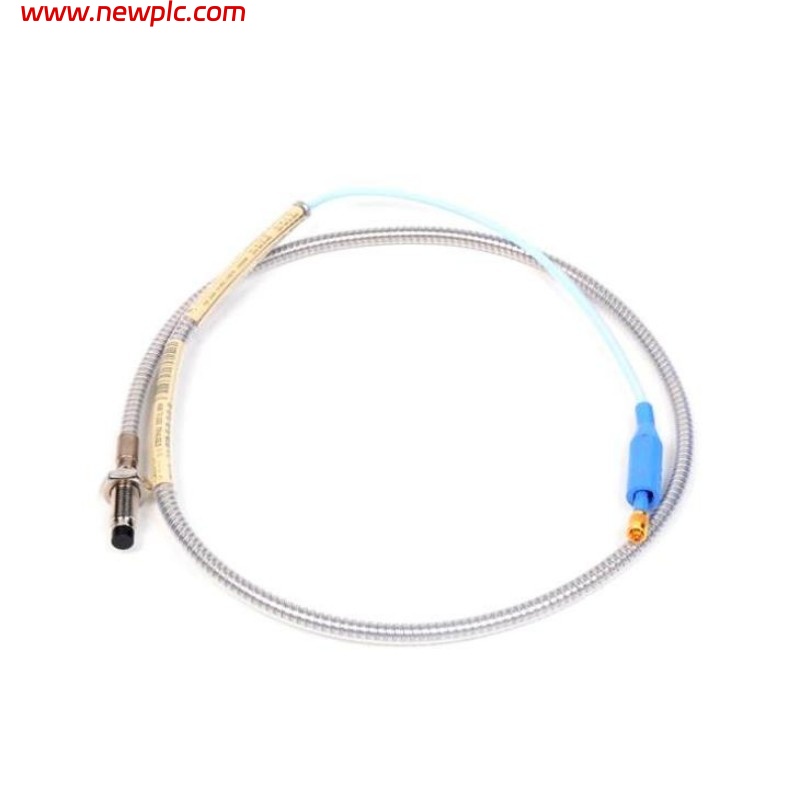

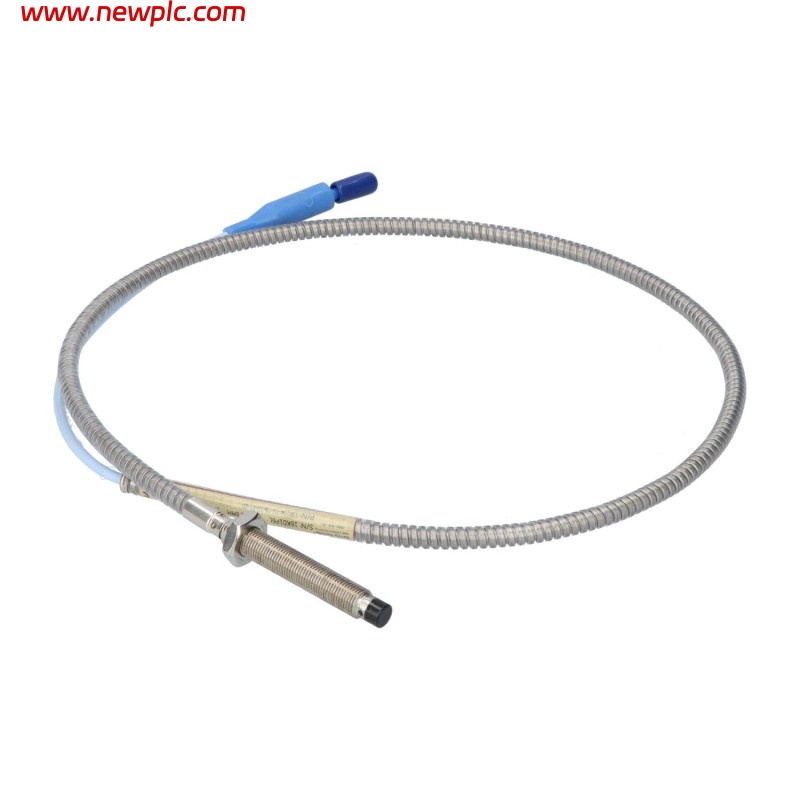

Bently Nevada 330104-00-09-05-02-00 8 mm 3300 XL Eddy-Current Proximity Probe

FAQ

Q1: What is the primary function of the 330104-00-09-05-02-00 probe?
It provides non-contact measurement of shaft displacement and position in rotating equipment.

Q2: What does the structure of the model number represent?
“00” = 0 mm unthreaded section; “09” = 90 mm case length; “05” = 0.5 m cable; “02” = armored miniature connector; “00” = standard industrial compliance.

Q3: What materials are used in the probe design?
It includes a PPS tip and a stainless-steel armored housing for reliable operation in demanding environments.

Q4: What is the operating temperature capability of this probe?
It functions reliably between –52 °C and +177 °C.

Q5: What output does this proximity probe provide?
When used with a compatible 3300 XL Proximitor, it outputs a voltage proportional to the gap between the probe tip and the shaft surface.

Q6: Is this model suitable for hazardous areas?
No, the “00” suffix indicates standard industrial use without hazardous-area certification.

Q7: What measurement sensitivity is typical for this probe?
The system typically provides ~200 mV/mil (≈7.87 V/mm) with a linear measurement capability of about 0.25–2.5 mm.

Q8: What are the size and weight details for this model?
It has a 90 mm case length, an 8 mm tip diameter, and weighs around 0.40 kg including the 0.5 m armored cable.

330104-00-09-05-02-00 Bently Nevada
