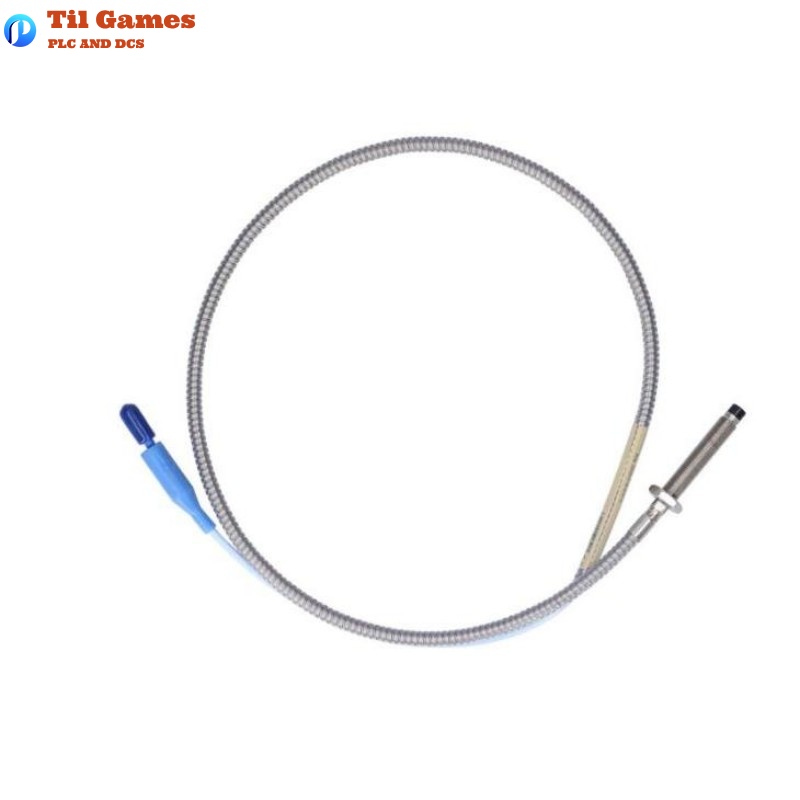

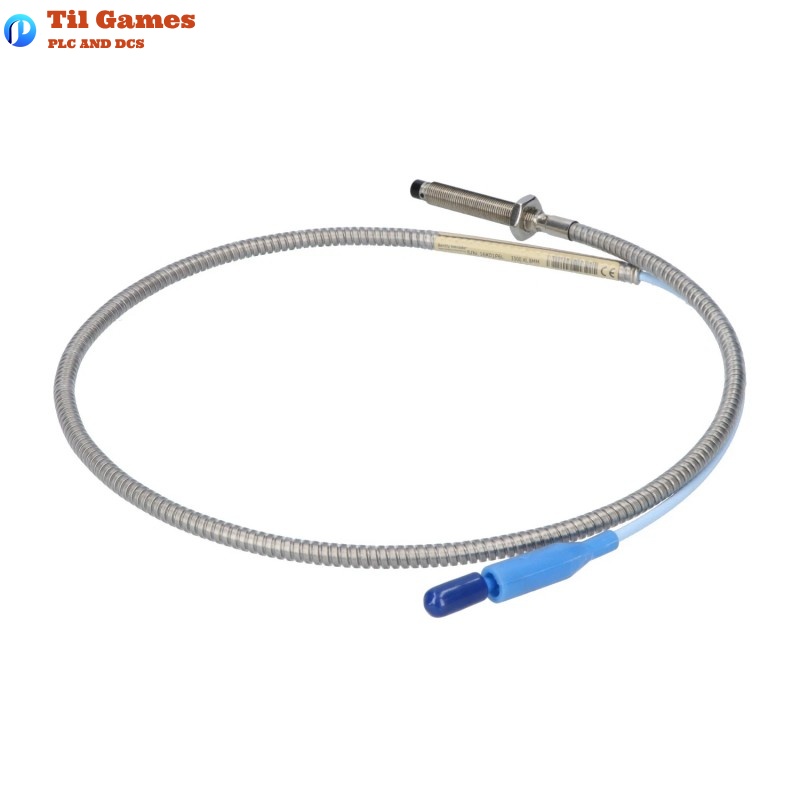

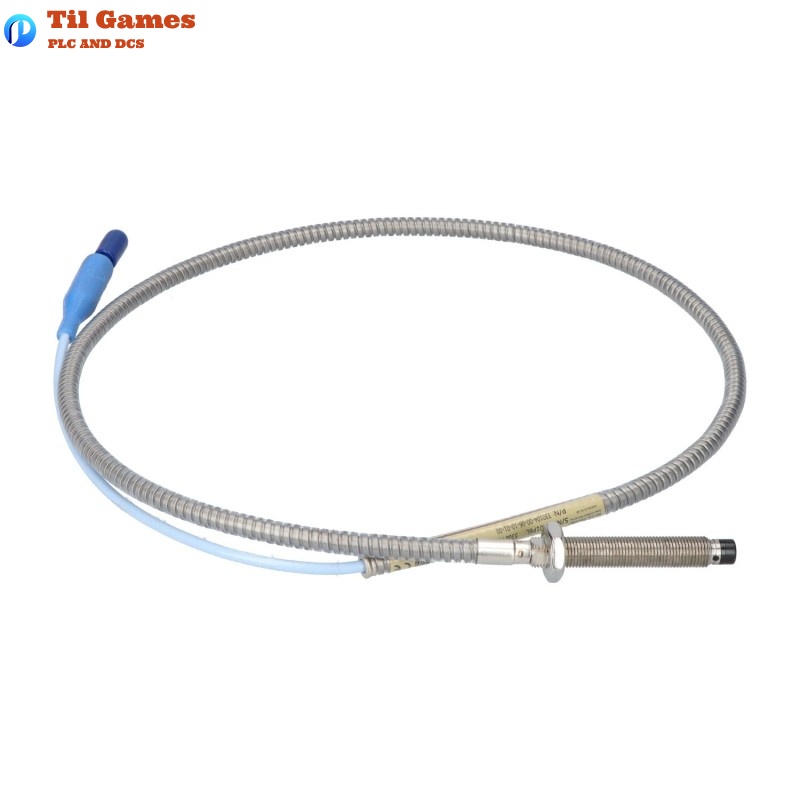

Bently Nevada 330104-00-15-10-01-05 3300 XL 8 mm Proximity Probe

FAQ

Q1: What applications is this probe designed for?
A1: It is primarily used for vibration and position monitoring in fluid-film bearing machines and also supports Keyphasor reference and speed measurements.

Q2: What is the supported operating temperature range?
A2: The standard probe supports –52°C to +177°C. The Extended Temperature Range (ETR) version supports up to +218°C (probe tip) and +260°C (cable).

Q3: Does this model comply with API 670 standards?
A3: Yes, the standard 5-meter system fully meets API 670 specifications for mechanical configuration, linear range, accuracy, and thermal stability.

Q4: Is it compatible with older 3300 series components?
A4: Yes, the 3300 XL 8 mm system is electrically and mechanically interchangeable with legacy 3300 5 mm and 8 mm components.

Q5: What is the recommended gap setting for proper operation?
A5: The recommended gap is approximately 1.27 mm (50 mils), corresponding to –9 Vdc output.

Q6: What is the minimum allowed cable bend radius?
A6: The minimum cable bend radius is 25.4 mm (1.0 inch).

Q7: Does the connector require any tools for installation?
A7: No, the ClickLoc connectors are finger-tight and designed for tool-free installation with a built-in locking mechanism.

Q8: What is the probe’s linear measurement range?
A8: The linear range is from 0.25 mm to 2.3 mm (10 to 90 mils), ensuring precise displacement and vibration measurements.
