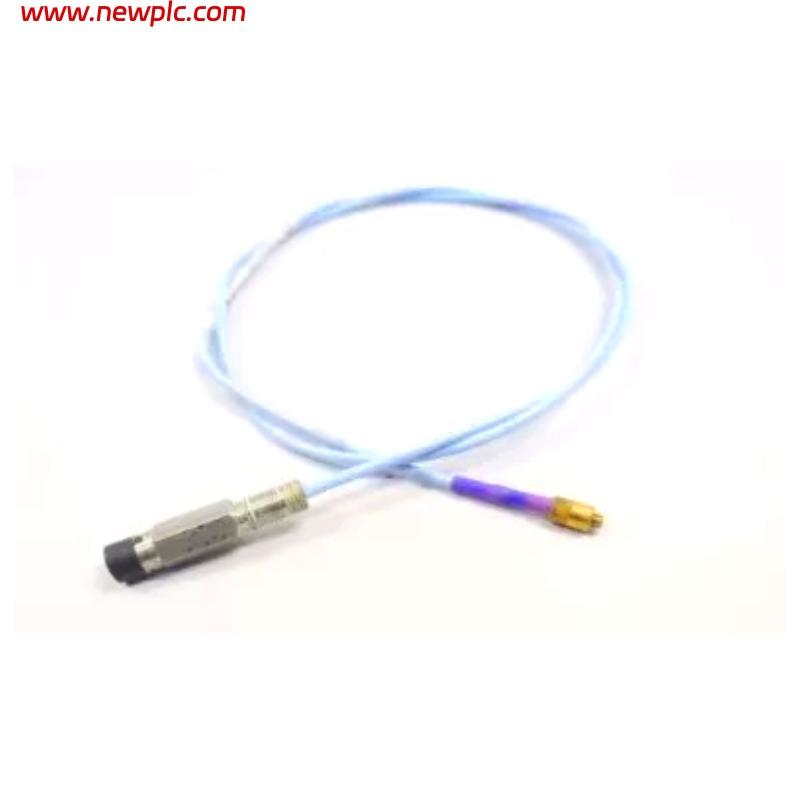

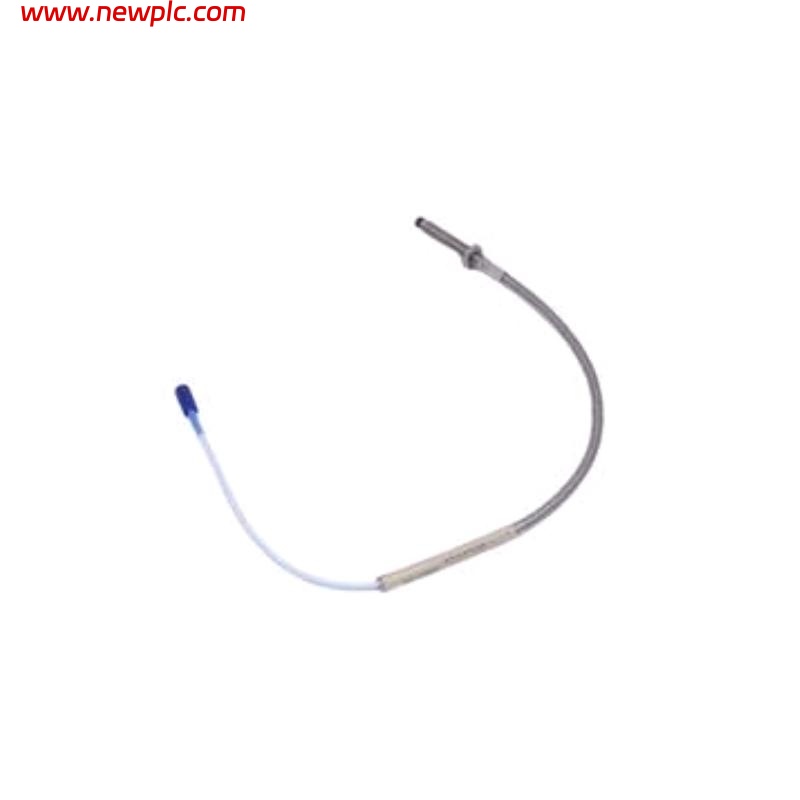

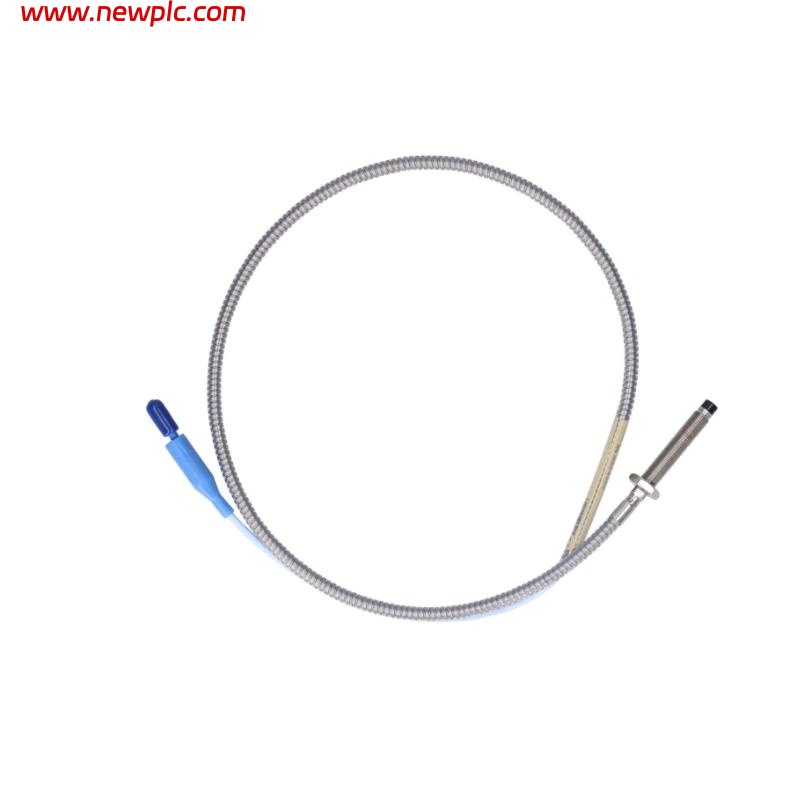

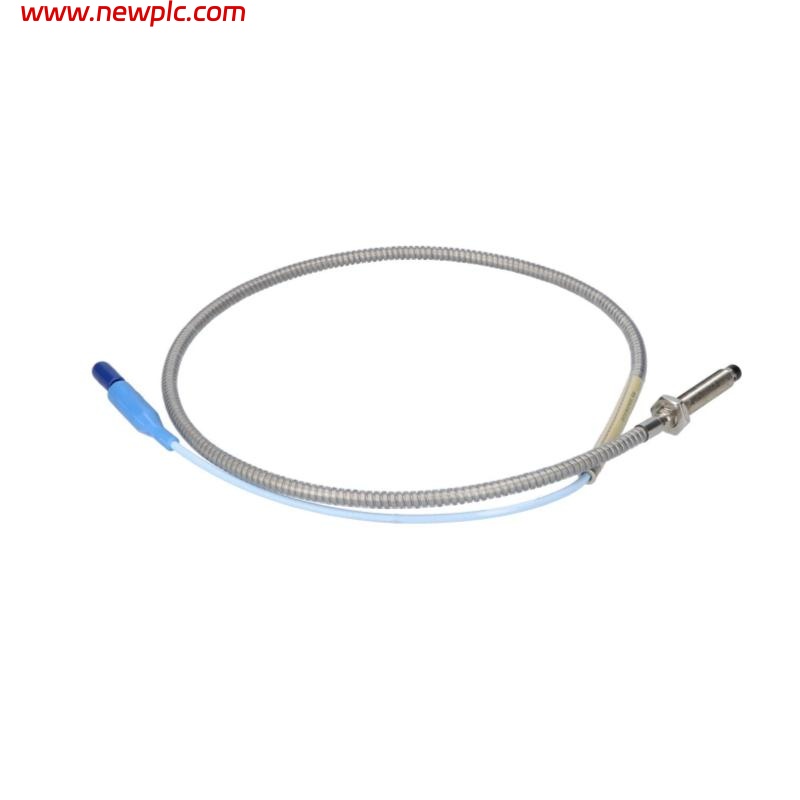

Bently Nevada 330104-02-25-10-01-00 8 mm 3300 XL Eddy-Current Proximity Probe

FAQ

Q1: What is the primary application of the 330104-02-25-10-01-00 probe?
It is used for non-contact measurement of shaft vibration, displacement, and position in rotating machinery such as turbines, compressors, and pumps.

Q2: What do the segments of the model number indicate?
02 = 2 mm unthreaded length, 25 = 250 mm case length, 10 = 1.0 m total system length, 01 = miniature coaxial connector, 00 = no agency approvals.

Q3: What materials are used in the probe?
The probe tip is PPS, and the housing is stainless steel with armored cable protection.

Q4: What is the operating temperature range?
It operates reliably from –52 °C to +177 °C.

Q5: What type of output does the probe provide?
When used with a 3300 XL Proximitor, it produces a voltage proportional to the gap between the probe tip and the shaft.

Q6: Does this model include hazardous-area certifications?
No, the “00” designation indicates no agency or hazardous-area approvals.

Q7: What is the typical measurement sensitivity?
Approximately 200 mV/mil, with a linear range of 0.25–2.5 mm.

Q8: What are the physical dimensions and weight of the probe?
The probe has a 250 mm case length, 8 mm tip diameter, and weighs about 0.88 kg including the 1.0 m armored cable.

330104-02-25-10-01-00 Bently Nevada
