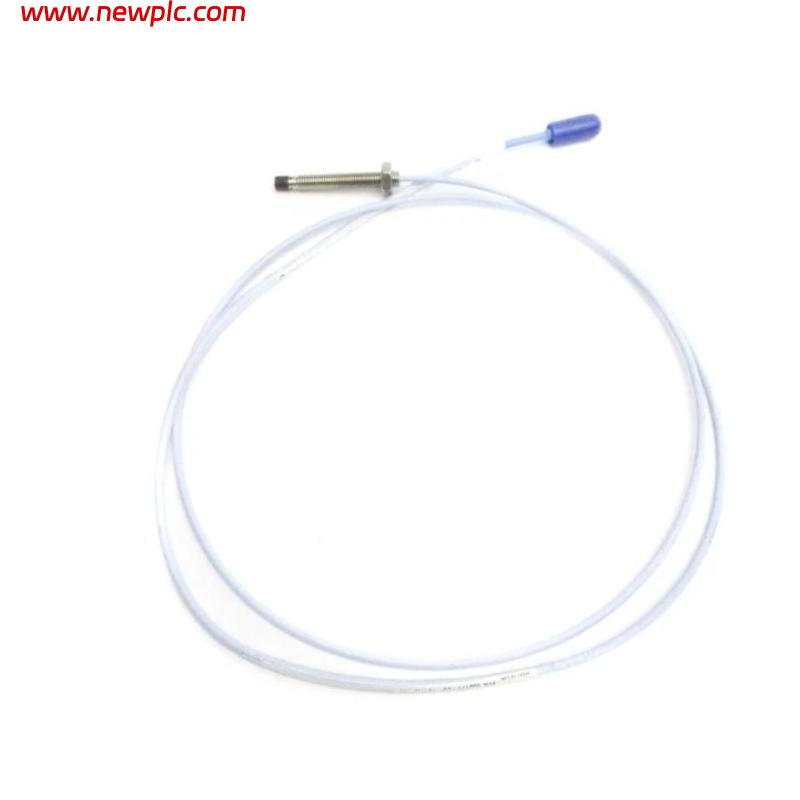

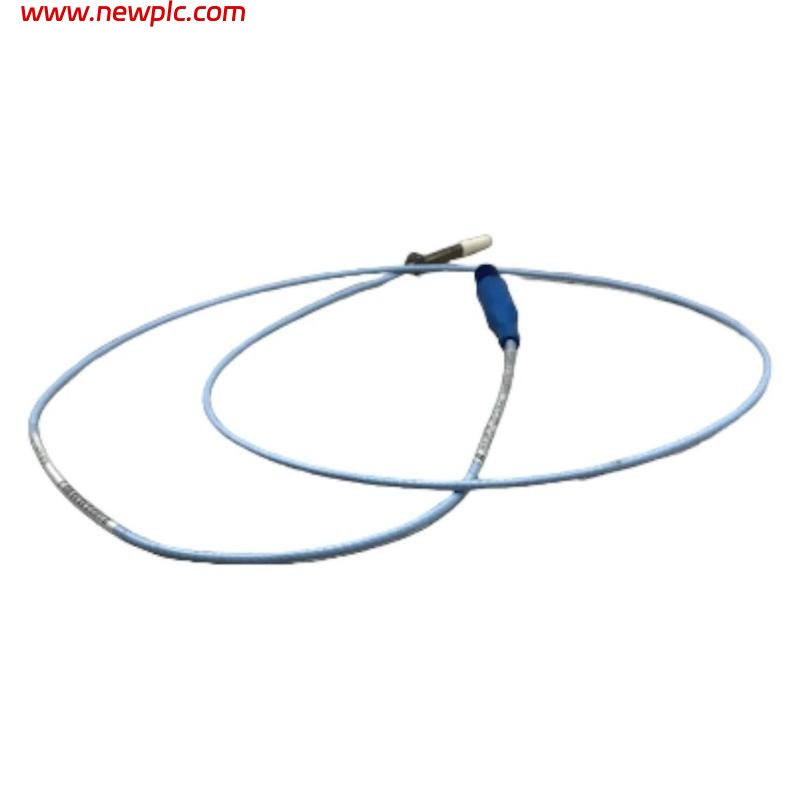

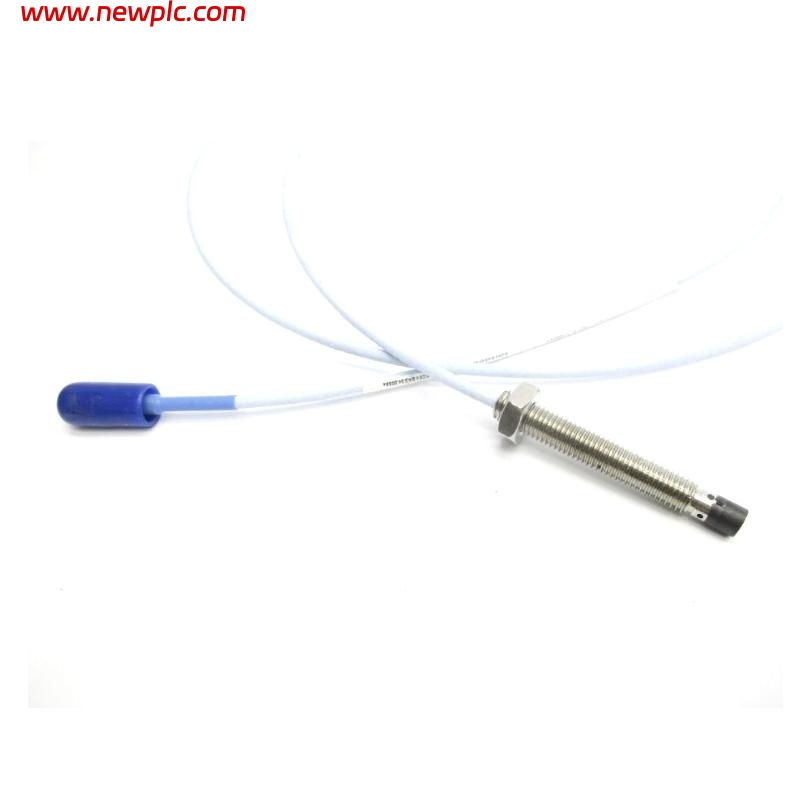

Bently Nevada 330174-00-08-50-02-CN Proximitor® Sensor

FAQ

Q1. What is the main function of the 330174-00-08-50-02-CN Proximitor sensor?
It converts the signal from a proximity probe into a proportional electrical output used for vibration and displacement monitoring.

Q2. Which probe system is compatible with this sensor?
It is designed for use with the Bently Nevada 3300 XL 8 mm proximity probe system.

Q3. What is the sensitivity of the sensor?
The standard sensitivity is 200 mV per mil (7.87 V/mm).

Q4. What system cable length does this configuration support?
This model is configured for an 8-meter total system length.

Q5. What voltage is required to operate the sensor?
It operates with a supply voltage between −17.5 VDC and −26 VDC.

Q6. What temperature range can the device operate in?
The typical operating temperature range is −35°C to +85°C.

Q7. What equipment commonly uses this sensor?
It is widely used in turbines, compressors, pumps, generators, and other rotating machinery requiring vibration monitoring.

Q8. Why are Proximitor sensors important in machinery protection systems?
They condition and convert probe signals into stable electrical outputs that can be used by monitoring and protection systems to detect abnormal vibration conditions.
