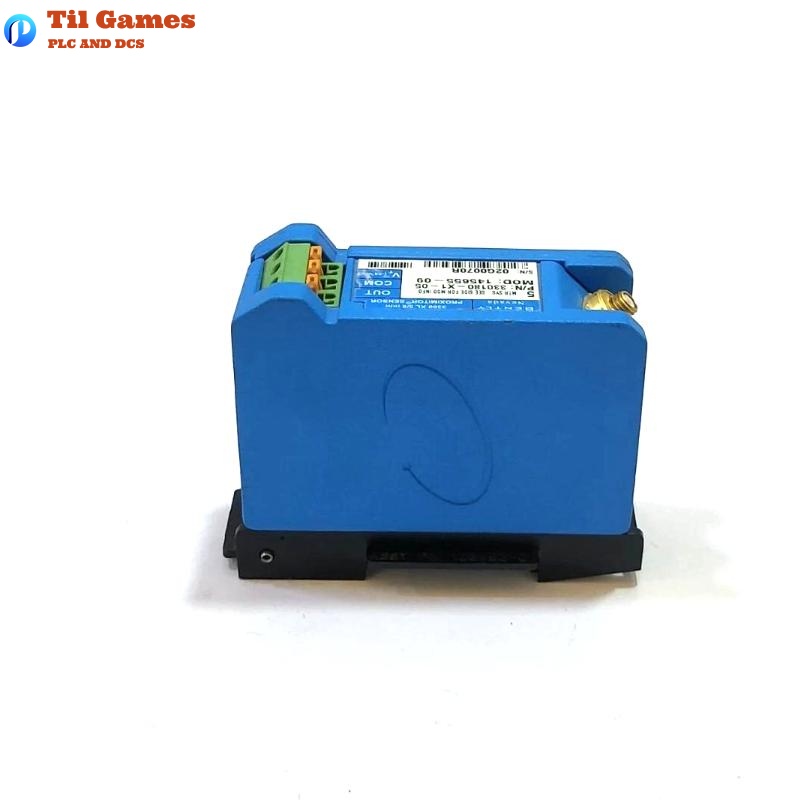

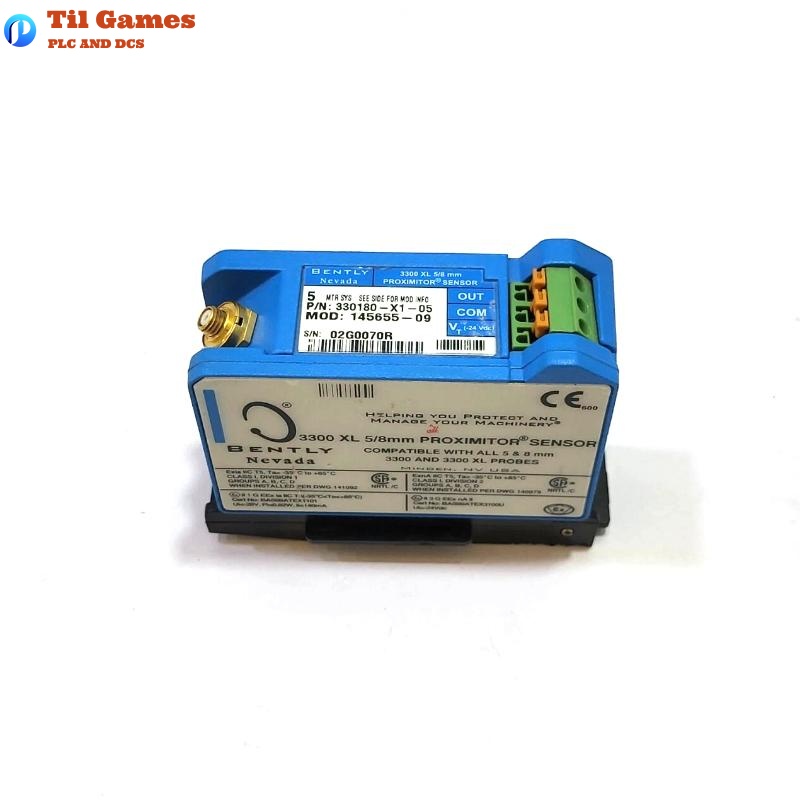

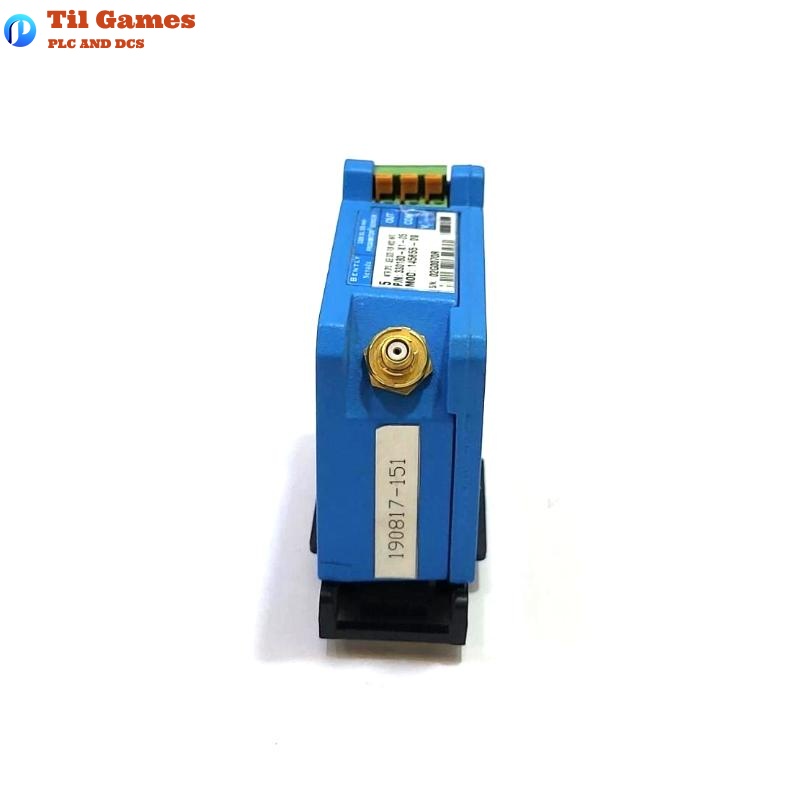

Bently Nevada 330180-X1-05 3300 XL Proximitor Sensor

Frequently Asked Questions (FAQ)

Q1: What probe types are compatible with the 330180-X1-05 Proximitor Sensor?
A1: It is compatible with 3300 XL 8 mm and legacy 3300 5 mm proximity probes.

Q2: Is the sensor compliant with API 670 standards?
A2: Yes, the complete system meets API 670 requirements including linearity, accuracy, and temperature stability.

Q3: What is the recommended operating temperature range for the sensor?
A3: The sensor operates reliably between -52°C and +100°C.

Q4: How is power supplied to the 330180-X1-05 Proximitor Sensor?
A4: It requires a DC power supply of -17.5 V to -26 V, drawing a maximum of 12 mA.

Q5: Can the sensor be used in hazardous areas?
A5: Yes, it is certified for hazardous area installations including Class I, Zone 0 and Zone 2 with appropriate barriers.

Q6: What mounting options are available for the sensor?
A6: Both panel mount and DIN-rail mount options are supported with a common 4-hole footprint.

Q7: What is the maximum cable length supported between the sensor and monitor?
A7: Up to 305 meters (1,000 feet) of field wiring is supported.

Q8: Does the system require component matching or bench calibration?
A8: No, all components are fully interchangeable and pre-calibrated for standard AISI 4140 steel targets.

3300 XL Proximitor Sensor 330180-X1-05 Bently Nevada
