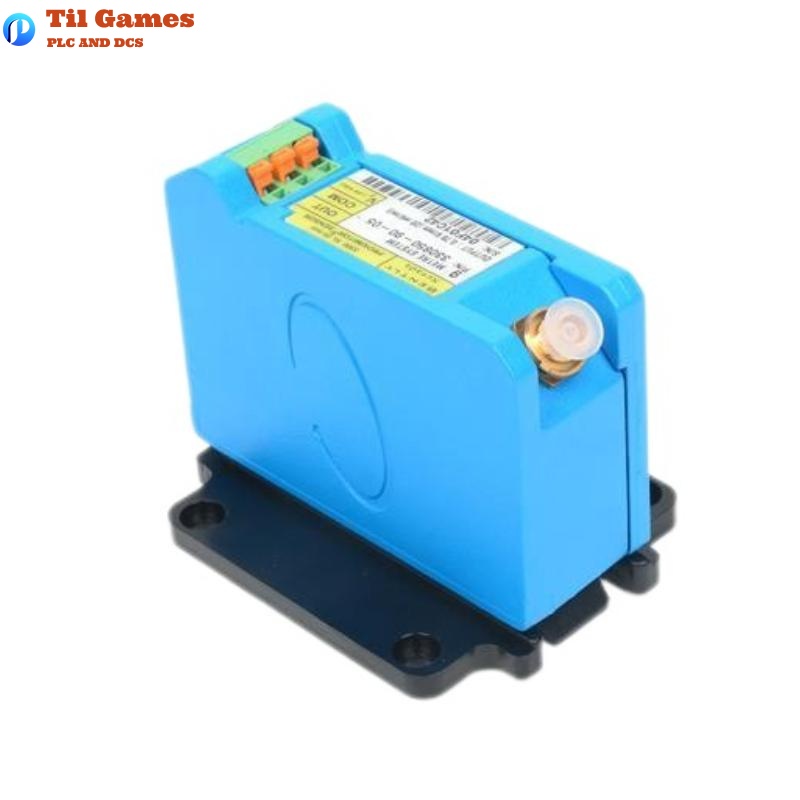

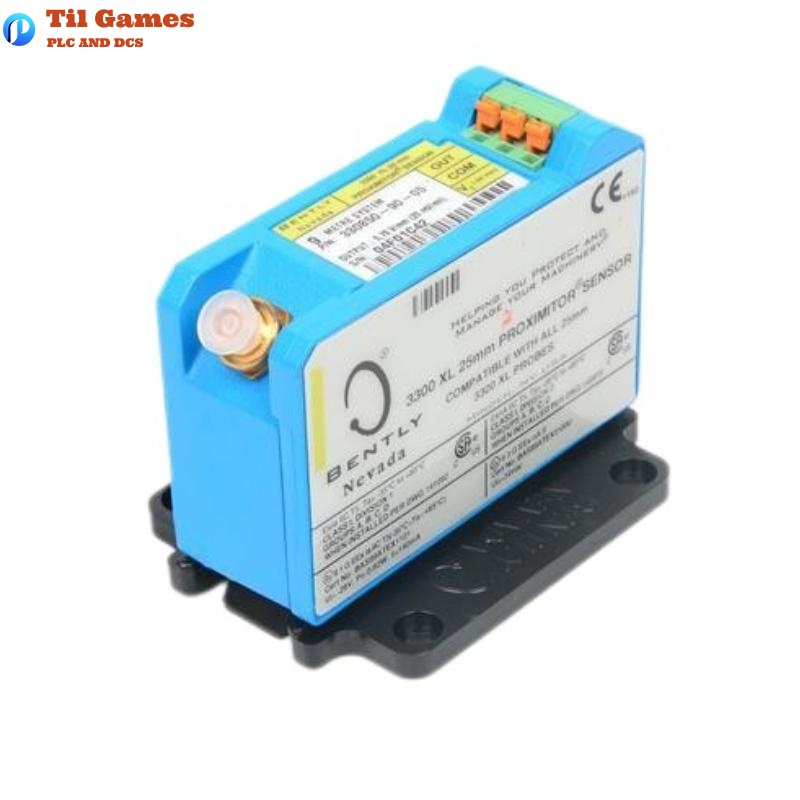

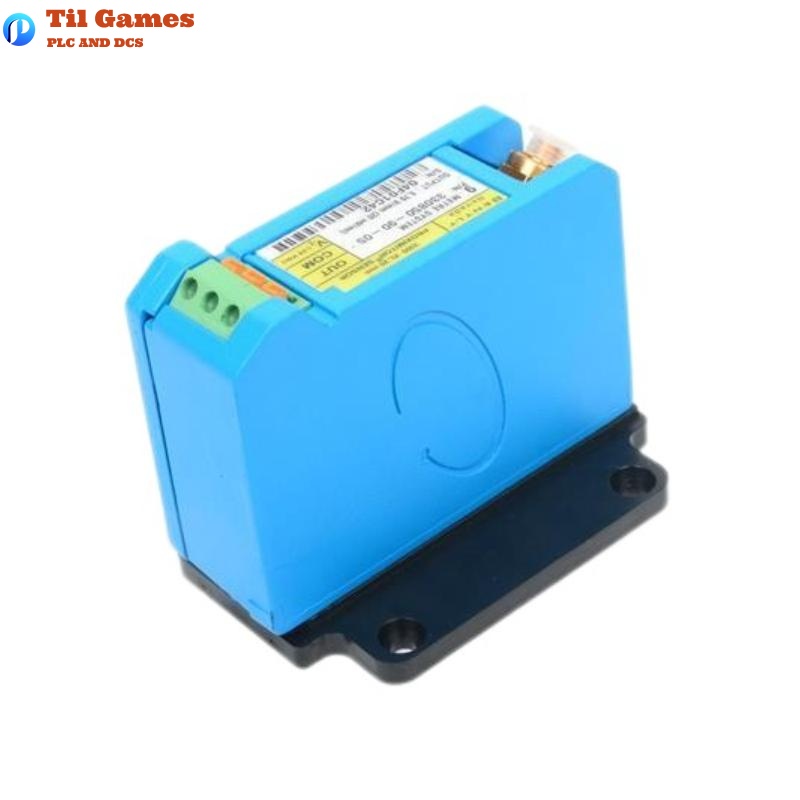

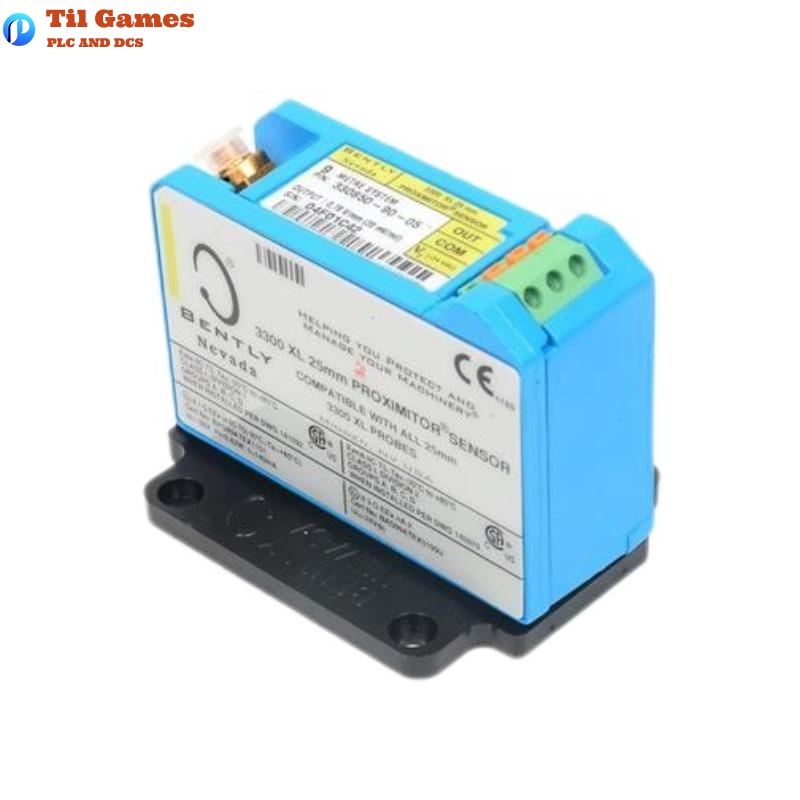

Bently Nevada 330850-90-05 3300 XL 25 mm Proximitor Sensor

FAQ

Q1: What is the linear measurement range of the 330850-90-05 sensor?
A1: The linear range is 12.7 mm (500 mils), beginning at approximately 0.63 mm from the target.

Q2: What is the scale factor for voltage output in this sensor system?
A2: The system provides 0.787 V/mm or 20 mV/mil.

Q3: What is the operating temperature range for the proximity probe?
A3: The probe operates from –35°C to +200°C and can withstand short-term exposure up to +250°C.

Q4: Can this sensor system replace older 7200 series systems?
A4: Yes, it is compatible as a drop-in replacement for standard 7200 25 mm, 35 mm, and DE integral systems.

Q5: What type of cable is used for the probe and extension?
A5: Both use a 75 Ω triaxial FluidLoc PFA-insulated cable.

Q6: What is the maximum recommended total system length?
A6: The total system length for this configuration is 9.0 meters.

Q7: How much does the entire system weigh approximately?
A7: The total weight is about 0.255 kg, depending on armor configuration.

Q8: What are the environmental compliance standards supported?
A8: The sensor complies with CE, FCC Part 15, RoHS, CSA, ATEX, and IECEx certifications.

3300 XL 25 mm Proximitor Sensor 330850-90-05 Bently Nevada
