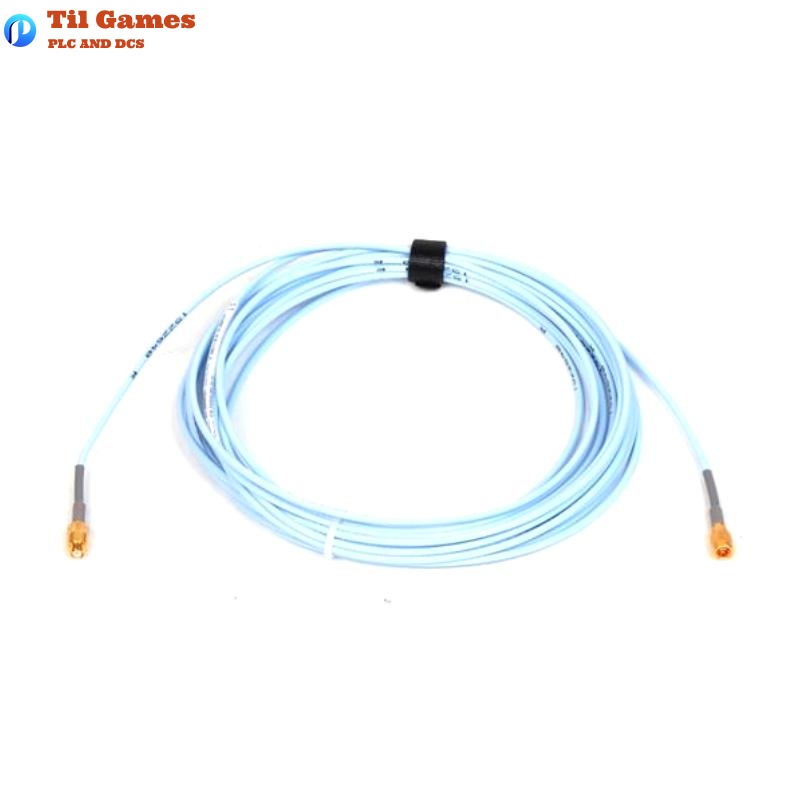

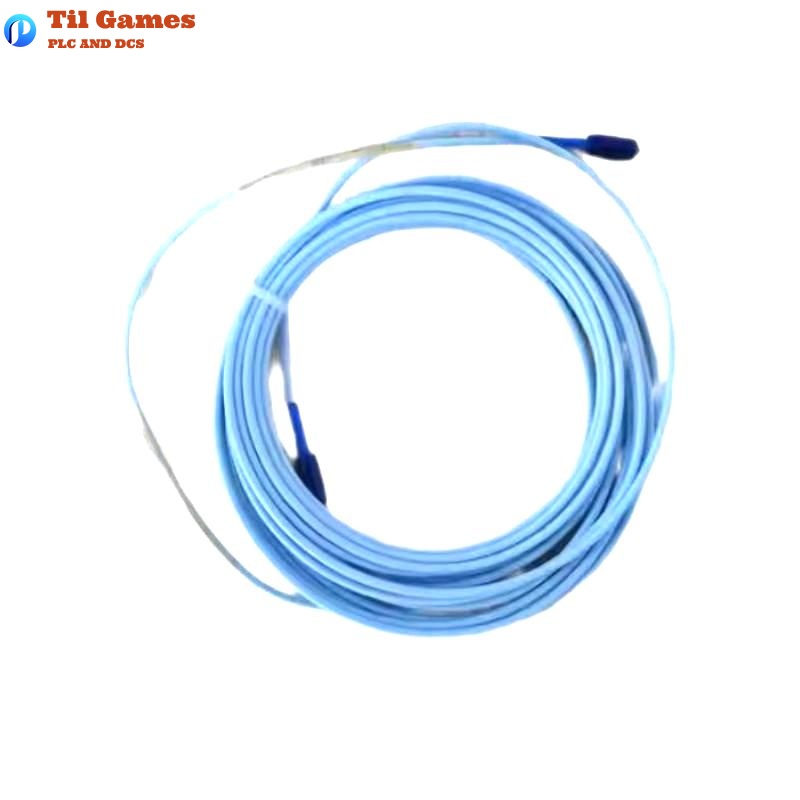

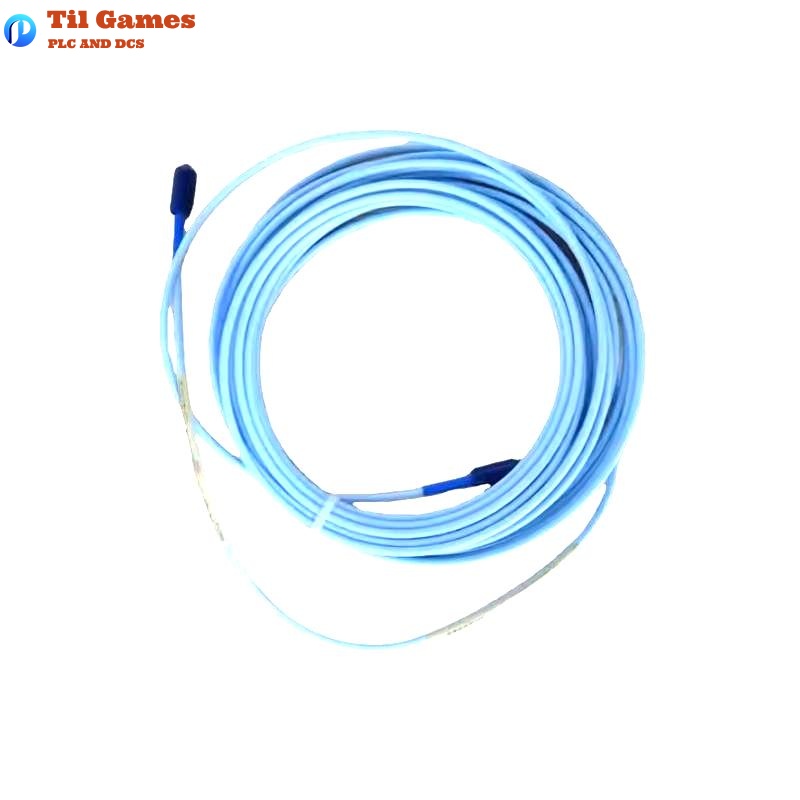

Bently Nevada 330930-040-03-05 3300 NSv Extension Cable

FAQ

Q1: What is the maximum tensile strength of the extension cable?
A1: The maximum rated tensile strength is 220 N (50 lb), applicable at all major junctions.

Q2: What is the minimum bend radius of this cable?
A2: The minimum bend radius is 25.4 mm (1.0 inch), applicable both with and without armor.

Q3: Does this extension cable include armor protection?
A3: Yes, model 330930-040-03-05 includes stainless steel armor with a FEP jacket.

Q4: Is the cable suitable for high-temperature environments?
A4: Yes, the operating and storage temperature range is -52°C to +177°C.

Q5: Are the connectors protected against liquid ingress?
A5: Yes, the connectors are ClickLoc type with connector protectors to prevent fluid entry.

Q6: What is the capacitance of the extension cable?
A6: The typical capacitance is 69.9 pF per meter.

Q7: What are the resistance values of the cable conductors?
A7: The center conductor has a resistance of 0.220 Ω/m, and the shield is 0.066 Ω/m.

Q8: Is the cable length customizable?
A8: Yes, while this model is 4.0 meters long, other standard lengths are available (e.g., 4.5 m, 6 m).
