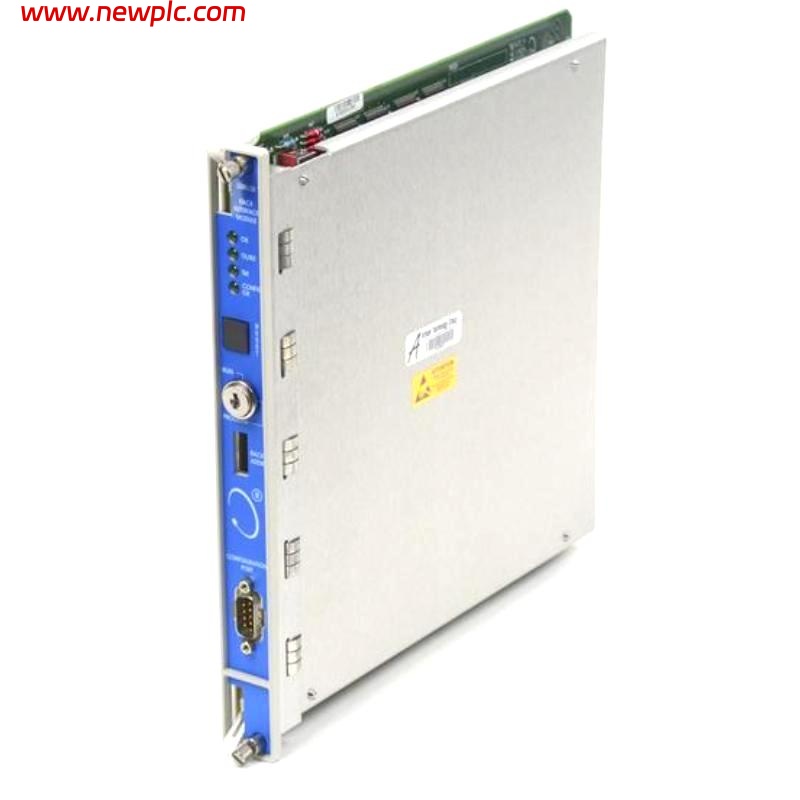

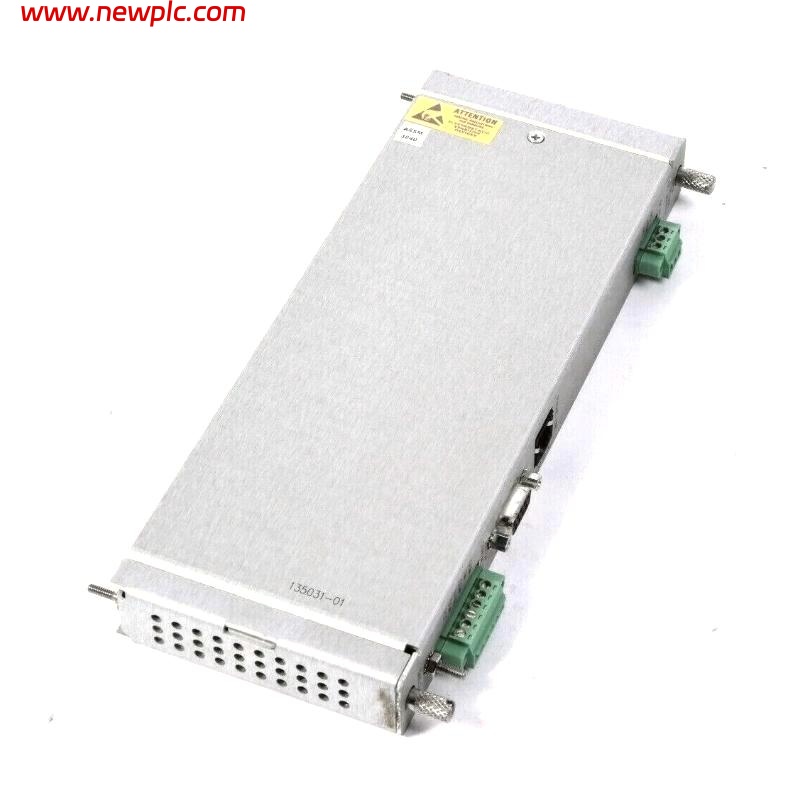

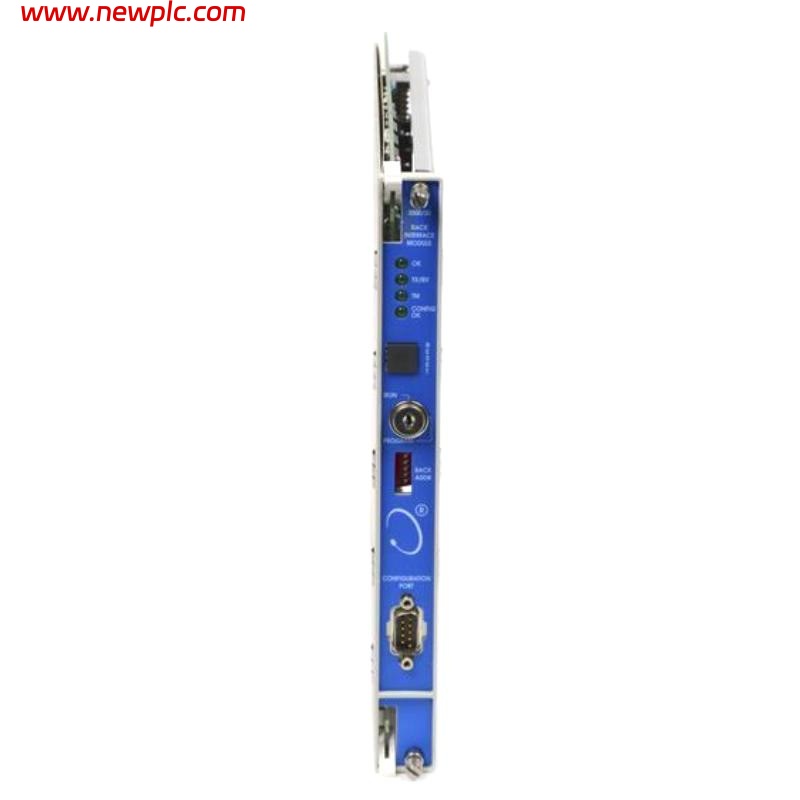

Bently Nevada 3500/20 125744-02+135031-01 3500 System Rack Interface Module

FAQ

• What is the primary function of the 3500/20 Rack Interface Module?
  The module serves as the main interface between the 3500 system rack and external devices, enabling configuration, data transfer, and communication.

• Which slot in the 3500 rack should the RIM be installed?
  It must be installed in slot 1, directly adjacent to the power supply modules.

• What types of external communication are supported by the RIM?
  The module supports TDXnet, TDIX, and DDIX communication interfaces.

• What is the operational temperature range for this module?
  It operates reliably between -30°C and +65°C.

• How is the RIM powered within the rack?
  The module draws power directly from the 3500 system rack via its designated slot.

• What is the maximum humidity the module can tolerate?
  The module can handle up to 95% relative humidity, non-condensing.

• What are the dimensions and weight of the module?
  Dimensions: 241.3 x 24.4 x 241.8 mm; Weight: 0.91 kg.

• Can the RIM be used with any other 3500 modules?
  Yes, it is compatible with other 3500 modules that require rack interface, such as standard I/O modules and communication processors.

125744-02 135031-01 3500/20 Bently Nevada Rack Interface Module
