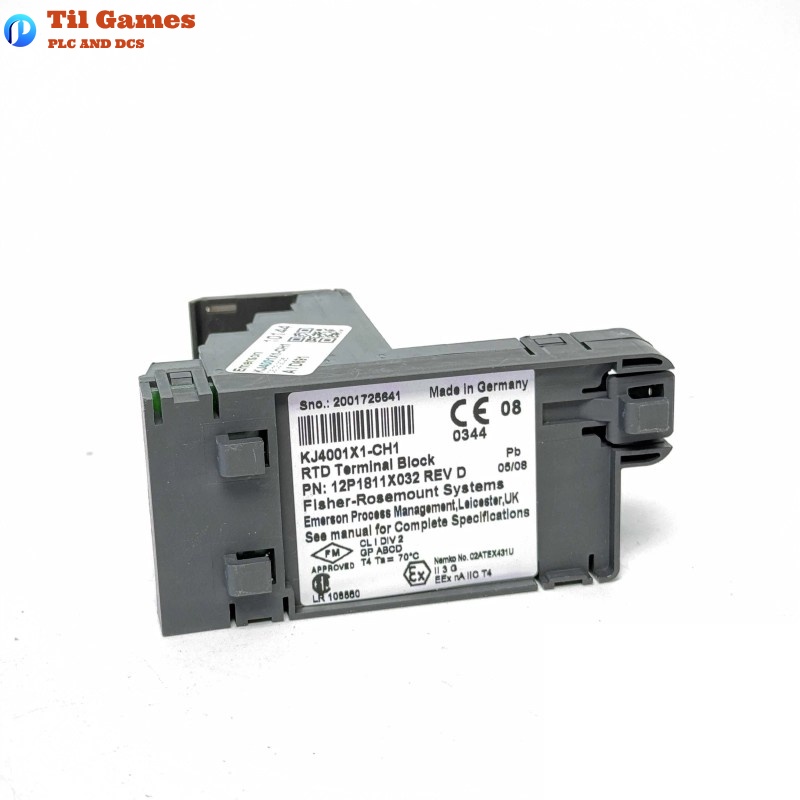

Emerson KJ4001X1-CH1 RTD Terminal

FAQ

Q1: What is the power requirement for the KJ4001X1-CH1 RTD Terminal Block?
A1: The terminal block requires 5 VDC at 100 mA.

Q2: Can the KJ4001X1-CH1 be installed or removed while the system is energized?
A2: No, it must not be installed or removed with power applied to the system.

Q3: What is the operating temperature range of the device?
A3: It can operate in environments ranging from -40 °C to +70 °C.

Q4: Is any calibration required for this terminal block?
A4: No, the unit does not require calibration.

Q5: What environmental conditions is the product rated for?
A5: It is rated for Class G3 airborne contaminants and 5%–95% non-condensing humidity.

Q6: What are the shock and vibration tolerances?
A6: It can withstand 10 g shock for 11 ms and vibrations of 1 mm peak-to-peak from 2–13.2 Hz, or 0.7 g from 13.2–150 Hz.

Q7: Are there any user-serviceable parts inside the module?
A7: No, the unit does not contain any user-serviceable components.

Q8: What certifications does the KJ4001X1-CH1 carry?
A8: It is certified under ATEX, IECEx, FM, UKEX, and meets Class I Div. 2 / Zone 2 standards.

Emerson KJ4001X1 KJ4001X1-CH1 RTD Terminal Block
