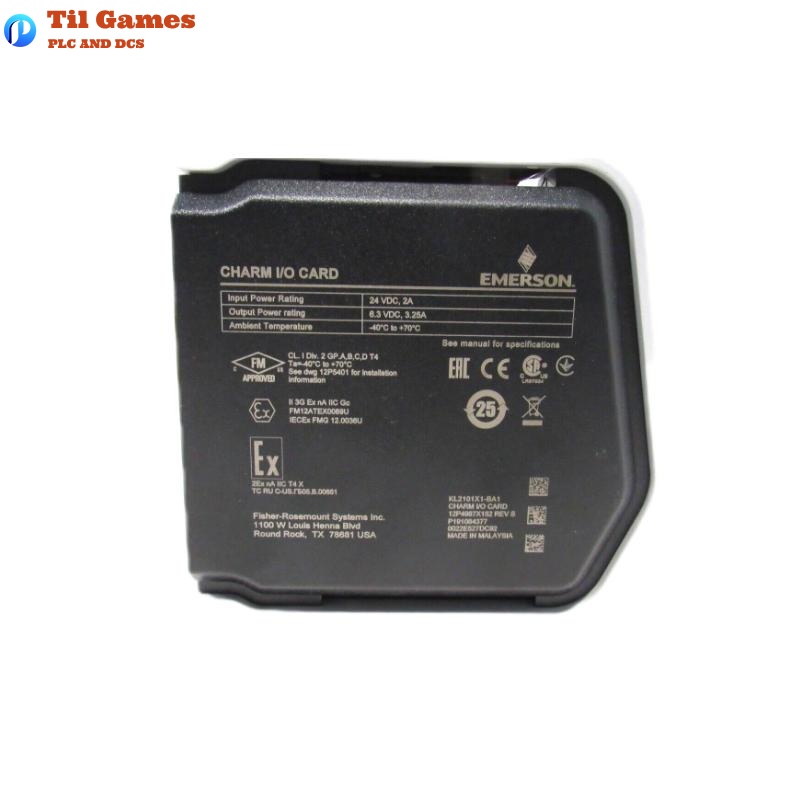

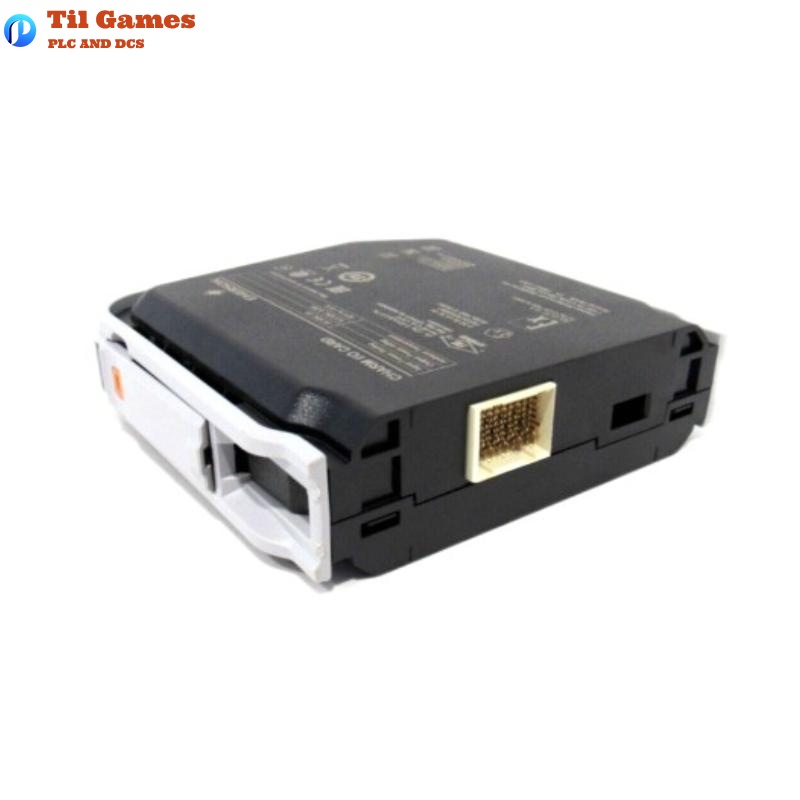

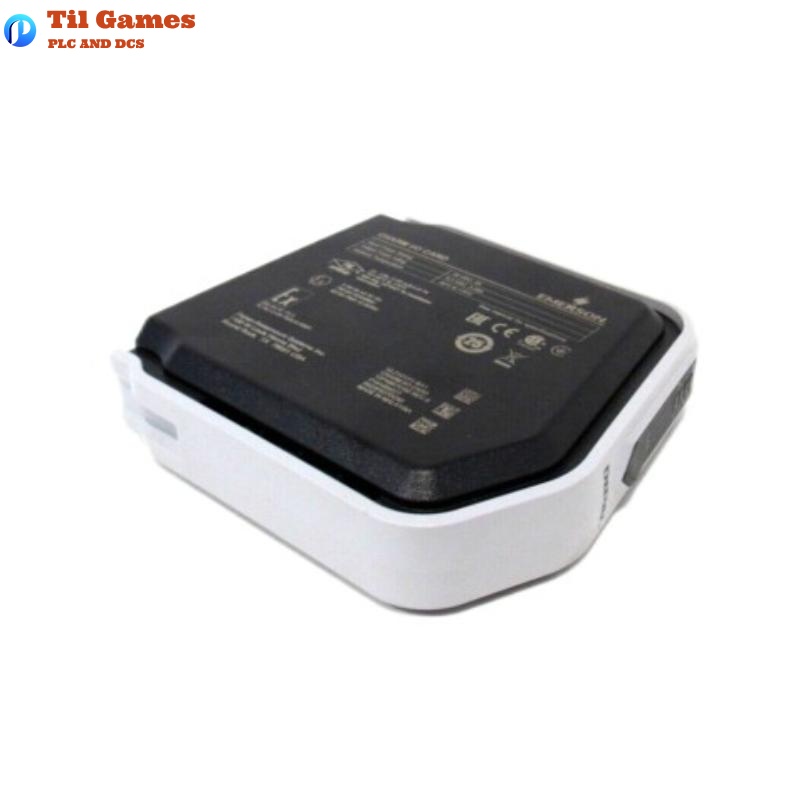

Emerson KL2101X1-BA1 CHARM I/O Card (CIOC)

FAQ

Q1: What is the input power requirement for KL2101X1-BA1?
A1: It requires a 24 VDC power supply at 2 A.

Q2: What is the output power of the KL2101X1-BA1?
A2: It provides 6.3 VDC at 3.25 A.

Q3: What temperature range is the module rated for?
A3: It operates from -40°C to +70°C.

Q4: Can this module be hot-swapped?
A4: No, it can only be removed or inserted with the power off or in a known non-hazardous area.

Q5: Does the KL2101X1-BA1 require calibration or maintenance?
A5: No, it requires no calibration and contains no user-serviceable parts.

Q6: How does it perform under vibration?
A6: It tolerates 1mm peak-to-peak from 2–13.2Hz and 0.7g from 13.2–150Hz.

Q7: Is the module certified for hazardous environments?
A7: Yes, it is certified with ATEX, IECEx, FM, and UKEX approvals.

Q8: What are the physical dimensions and weight of the module?
A8: It measures 144 × 42 × 106 mm and weighs 0.454 kg.

CHARM I/O Card Emerson KL2101X1 KL2101X1-BA1
