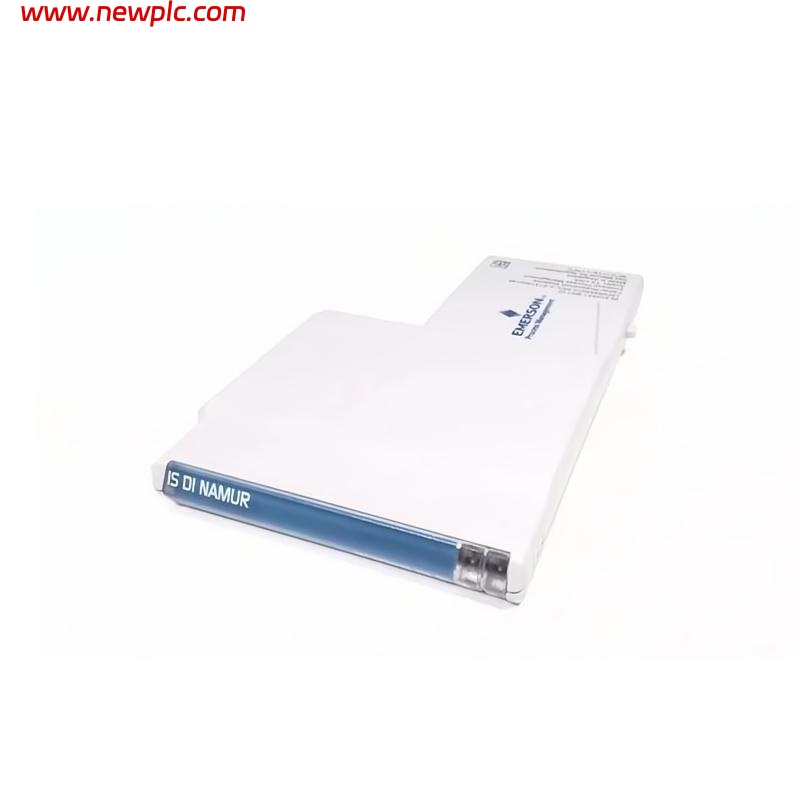

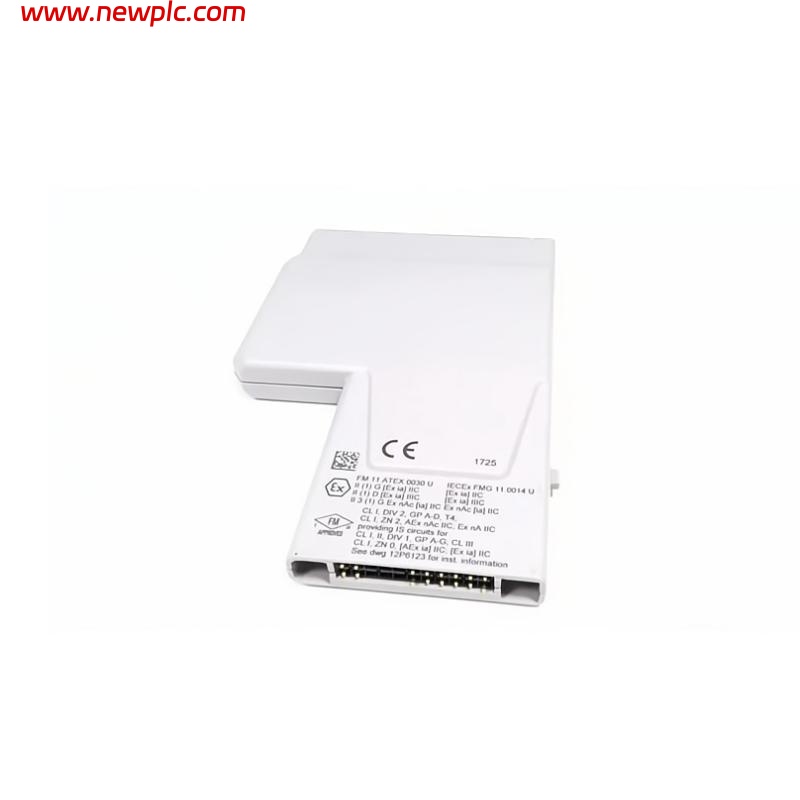

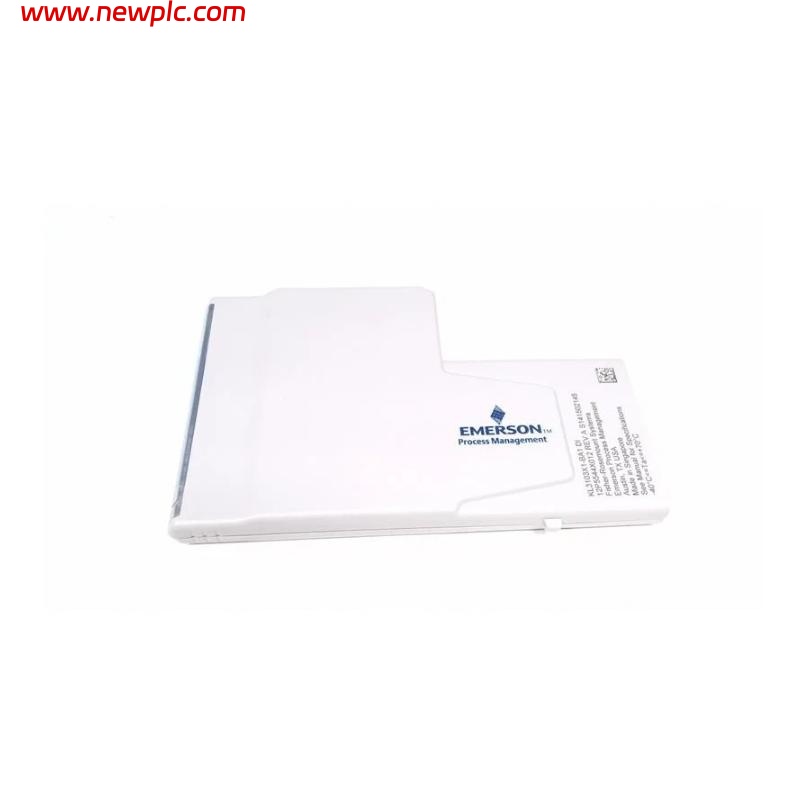

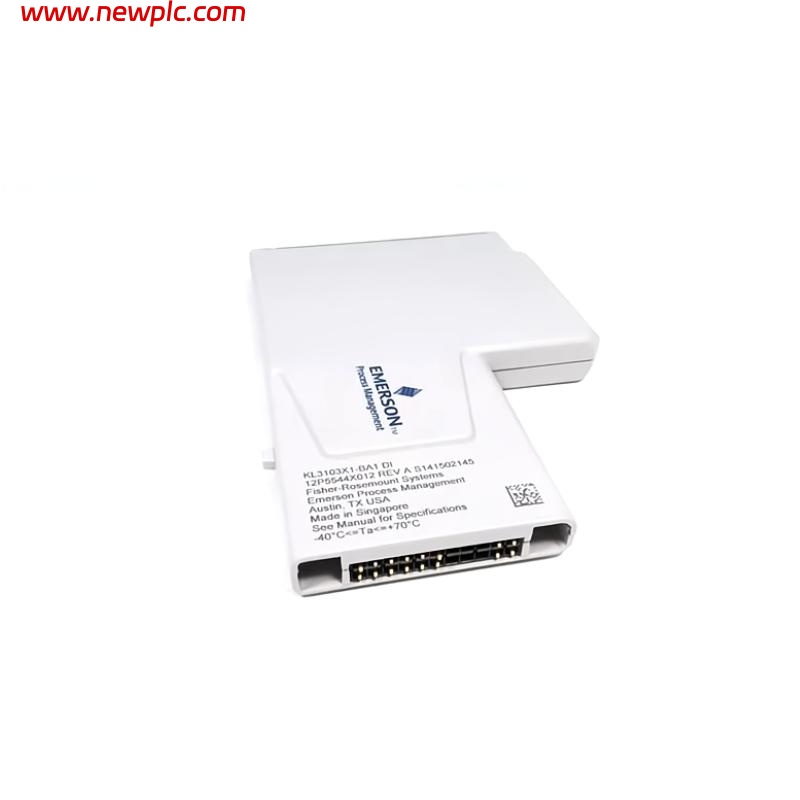

Emerson KL3103X1-BA1 DeltaV Digital Input 24 VDC Dry Contact CHARM

FAQ

Q1: What is the power specification of the module?
A1: The CHARM bus power is +6.3 VDC at 32 mA, and the field circuit power is +24 VDC at 10 mA.

Q2: What is the operating temperature range of the product?
A2: The operating temperature range is -40 °C to +70 °C.

Q3: How is the vibration resistance of the module specified?
A3: It withstands 1 mm peak-to-peak from 2–13.2 Hz and 0.7g from 13.2–150 Hz.

Q4: Does the module require calibration?
A4: No calibration is required; it is fully adjusted at the factory.

Q5: Can the module be inserted or removed while powered?
A5: Yes, only if the area is confirmed to be non-hazardous; otherwise, power must be turned off.

Q6: What is the supported humidity range?
A6: The relative humidity range is 5% to 95%, non-condensing.

Q7: Is the module user-serviceable?
A7: The module contains no user-serviceable parts and should not be disassembled.

Q8: Which environmental standard does the module meet?
A8: It meets ISA-S71.04-1985 Class G3 for airborne contaminants.

DeltaV Digital Input Dry Contact CHARM Emerson KL3103X1 KL3103X1-BA1
