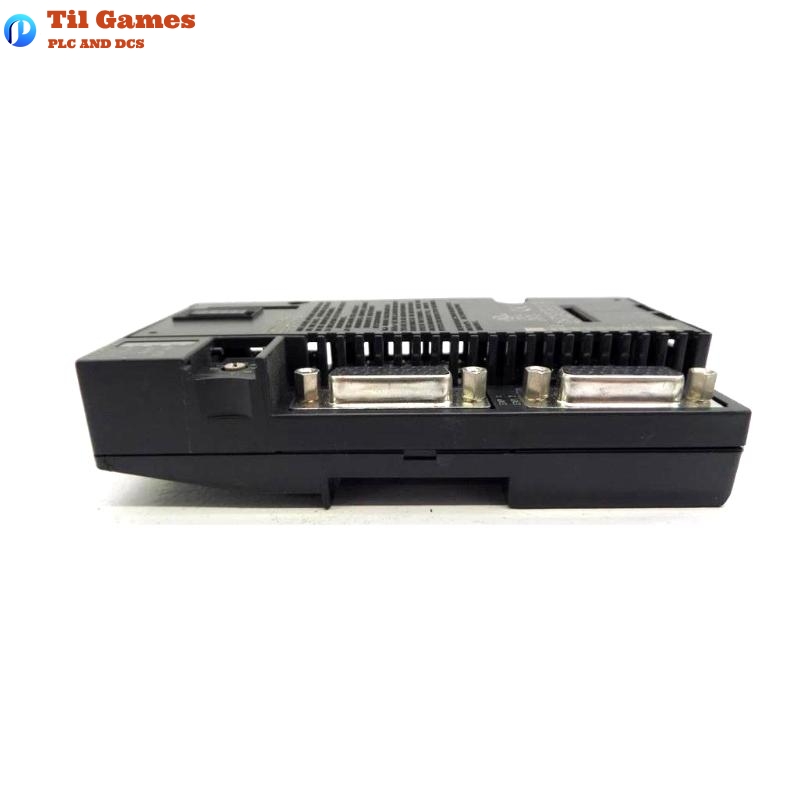

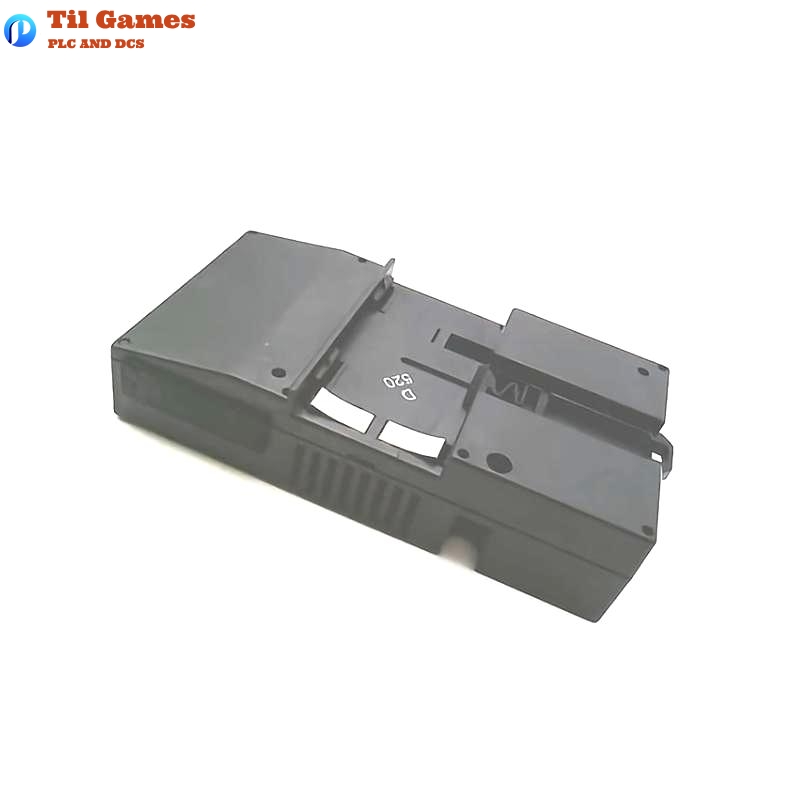

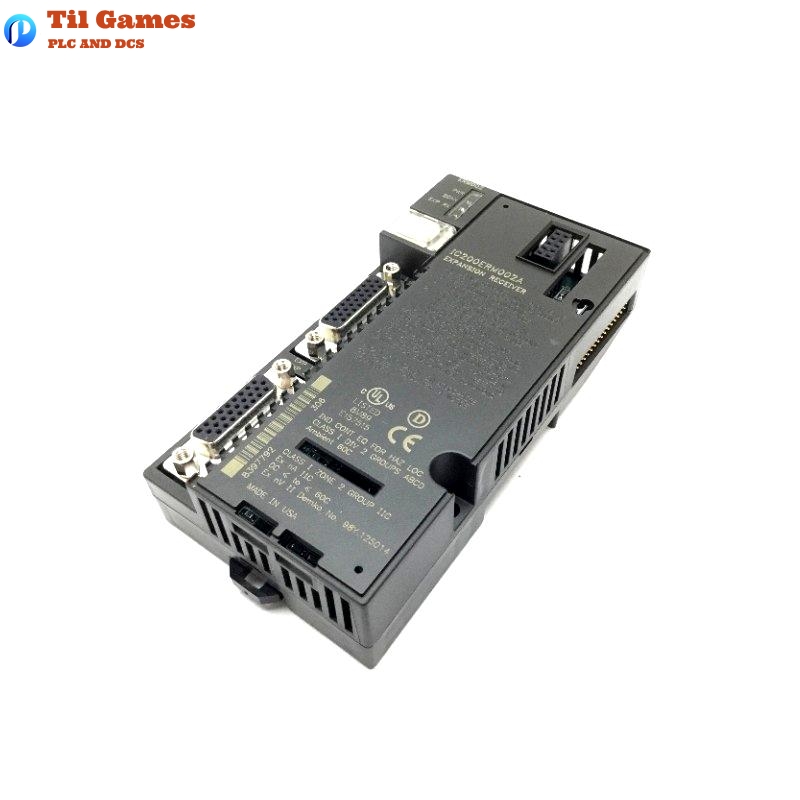

GE IC200ERM002A VersaMax Expansion Receiver Module

FAQ

Q1: What is the IC200ERM002A?
A1: The IC200ERM002A is an expansion receiver module in the GE VersaMax series that allows additional I/O units to be added to a VersaMax PLC system.

Q2: What is the maximum distance supported by IC200ERM002A?
A2: IC200ERM002A supports up to 2460 feet of connection distance, with a maximum of 50 feet for non-isolated receivers.

Q3: What are the power requirements for IC200ERM002A?
A3: The module requires 430 mA current from a 5V backplane and 20 mA current from a 3.3V backplane.

Q4: What LED indicators are available on IC200ERM002A?
A4: IC200ERM002A has PWR LED, EXP RX LED, and SCAN LED indicators that show power status, expansion bus status, and whether the CPU is scanning the expansion I/O.

Q5: What are the dimensions and weight of IC200ERM002A?
A5: The dimensions are 66.8mm x 128mm x 69.1mm, and the weight is 0.222 kg.

Q6: Does IC200ERM002A support isolation?
A6: IC200ERM002A is a non-isolated version of the receiver module. If isolation is required, the IC200ERM001 module should be used.

Q7: What is the maximum number of I/O points supported by IC200ERM002A?
A7: IC200ERM002A can support up to 8 modules per expansion rack, with a maximum of 8 I/O points per module.

Q8: What types of systems is IC200ERM002A compatible with?
A8: IC200ERM002A is compatible with GE VersaMax PLCs and I/O stations, providing modular expansion capabilities to enhance the system.

GE IC200ERM002A VersaMax Expansion Receiver Module

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
