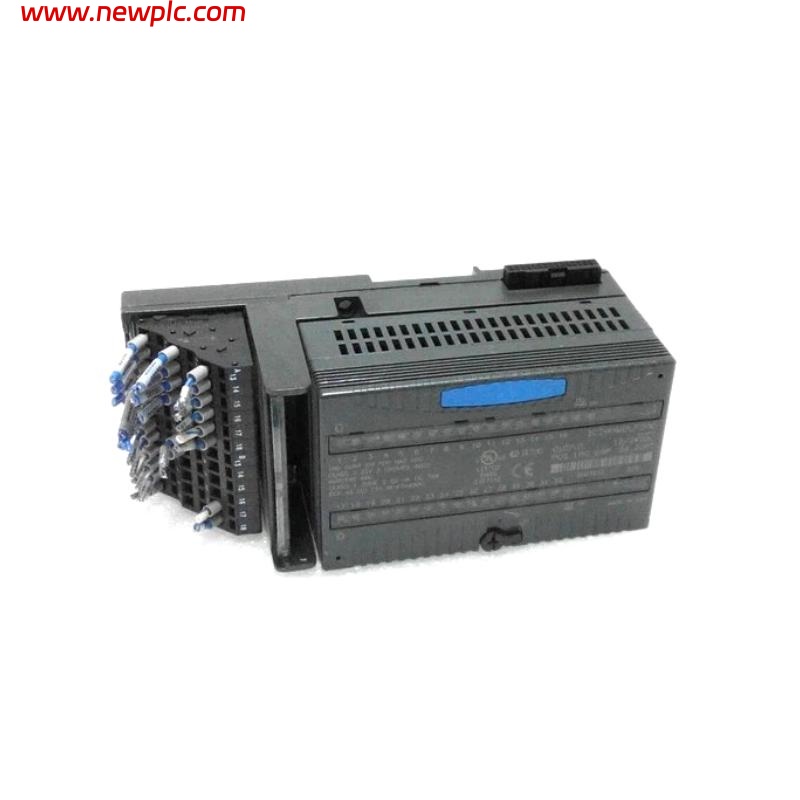

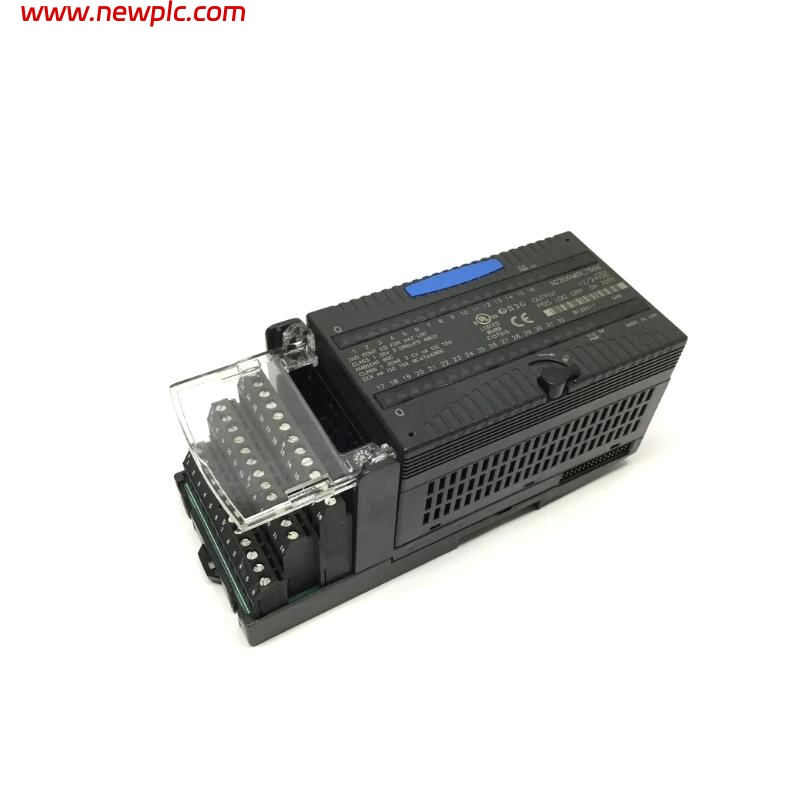

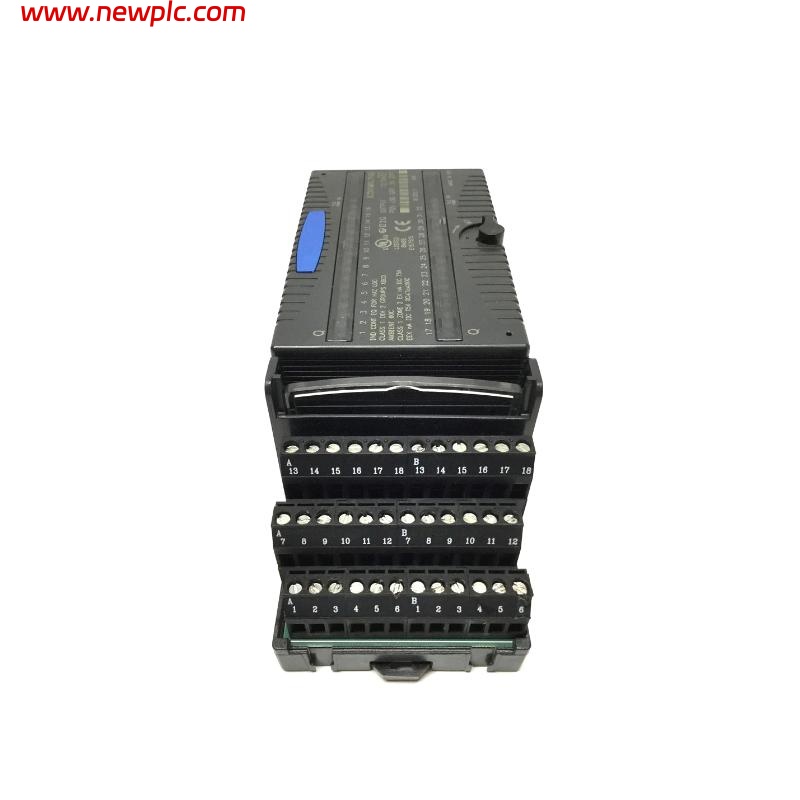

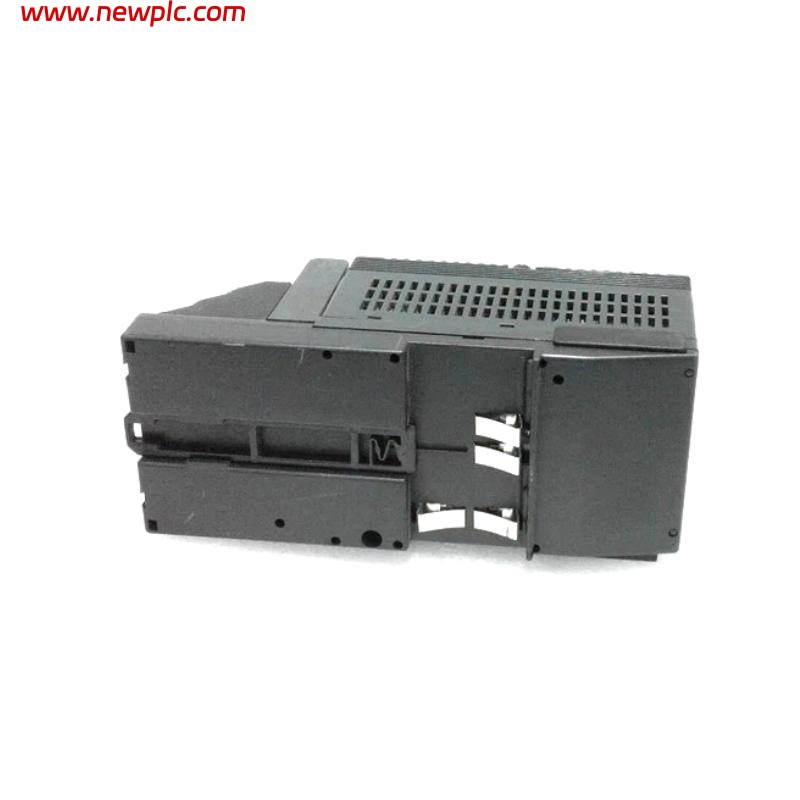

GE IC200MDL750 Discrete Output Module

FAQ

Q1. What type of module is the IC200MDL750?
It is a discrete output module for GE Fanuc VersaMax I/O systems.

Q2. How many outputs does this module provide?
It provides 32 output channels, arranged in two groups of 16.

Q3. What voltage range can the IC200MDL750 switch?
It supports DC output in the range of 10.2 – 30 V, with nominal 12/24 V.

Q4. How much current can each output handle?
Each output is rated for 0.5 A continuous per point.

Q5. Does this module draw power from the PLC backplane?
Yes, it consumes up to 90 mA from the 5 V backplane supply.

Q6. What visual indicators are provided?
It includes LEDs for each output channel, an OK LED for backplane power, and a field power LED.

Q7. What environmental conditions can it operate in?
It’s designed for standard industrial use, typically from 0 °C to about 30 °C.

Q8. How is the IC200MDL750 physically mounted?
It mounts on a DIN rail using a VersaMax carrier base.

GE IC200MDL750

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
