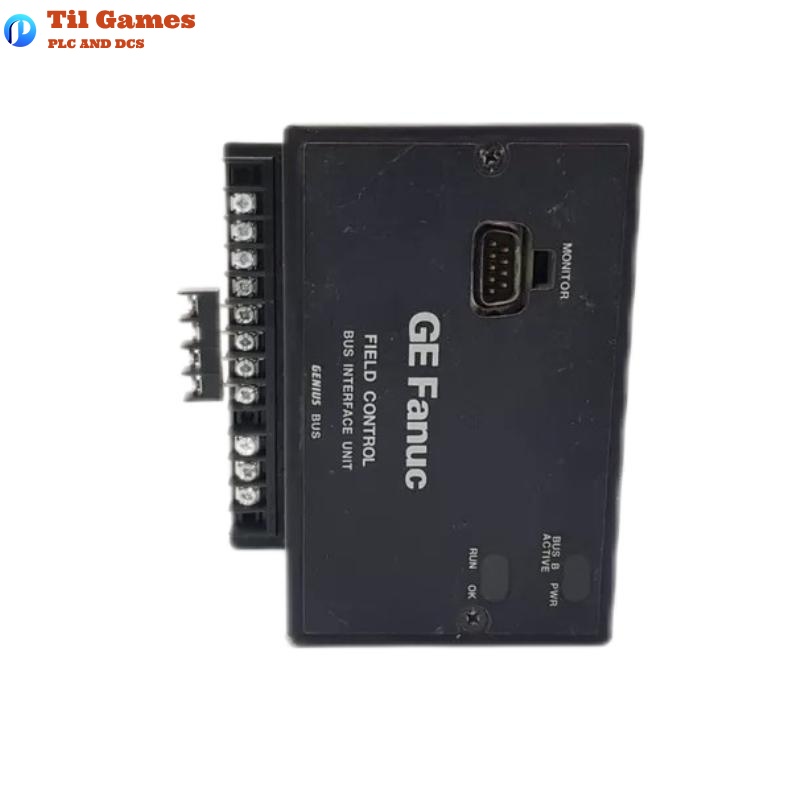

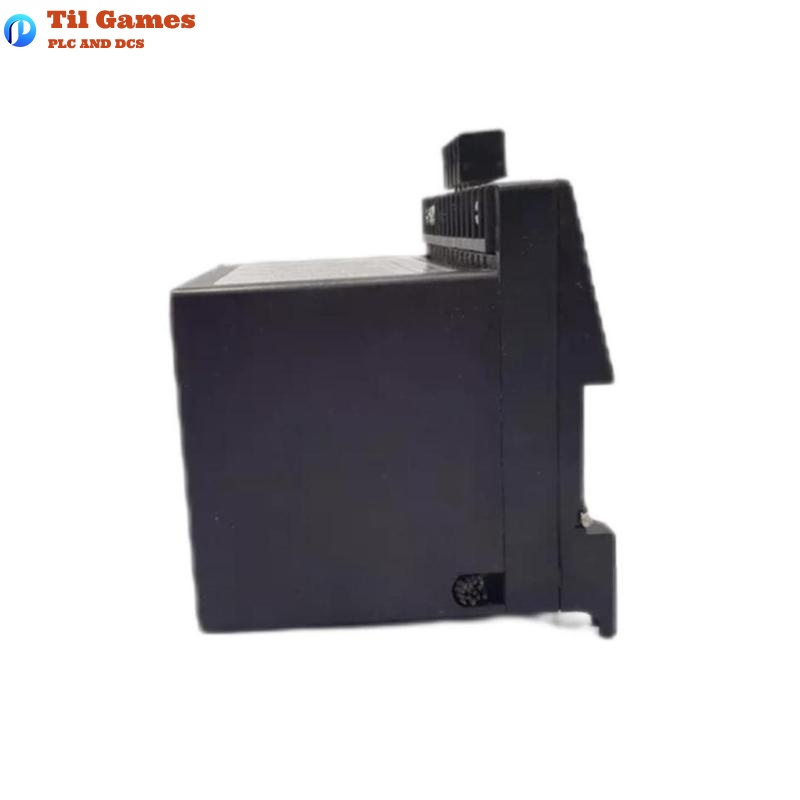

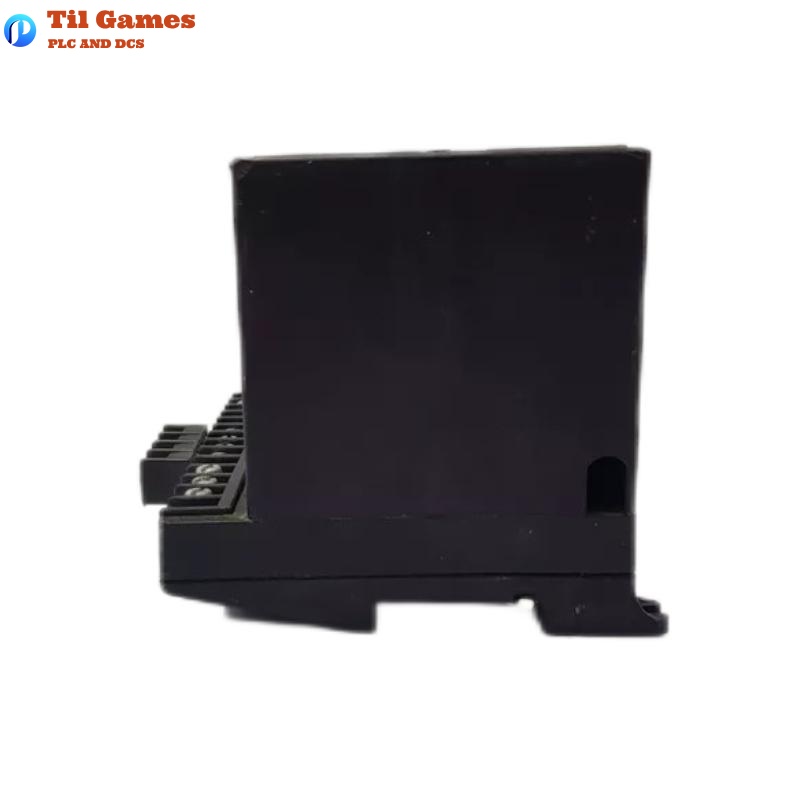

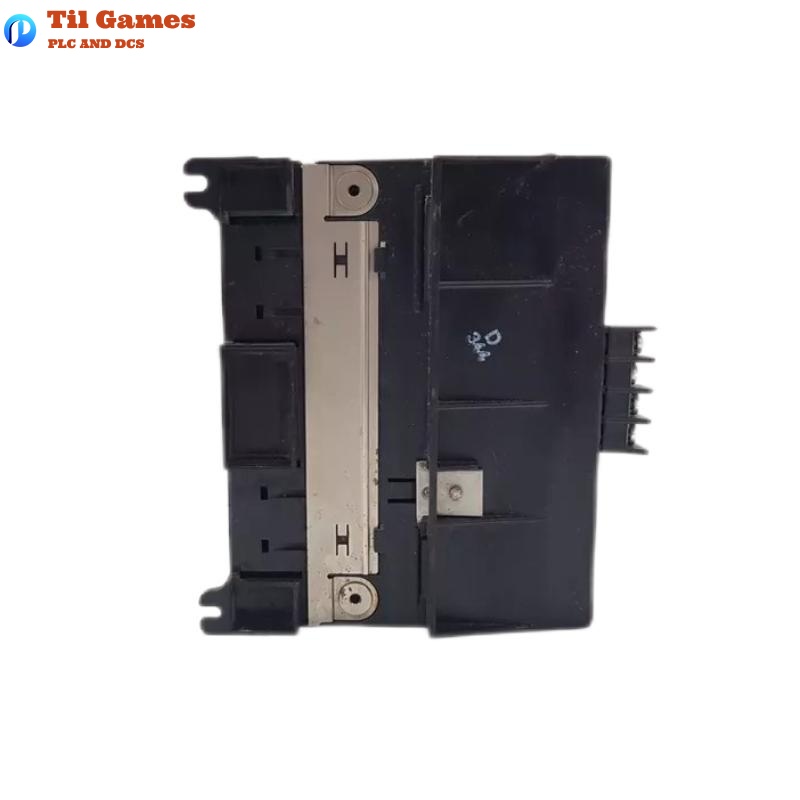

GE IC670GBI002H Genius Bus Interface Unit

FAQ

Q1: What is the input power requirement for the IC670GBI002H?
A1: The unit requires a 24 VDC power supply.

Q2: Can this unit be used in hazardous environments?
A2: Yes, it is certified for Class I, Division 2 (Groups A, B, C, D) or non-hazardous locations.

Q3: Does it support redundant communication buses?
A3: Yes, both single and redundant (dual) bus configurations are supported.

Q4: What terminal block types are compatible for hot swap?
A4: IC670CHS101, IC670CHS102, and IC670CHS103 support hot insertion/removal.

Q5: How many I/O terminal blocks can be connected?
A5: Up to four I/O terminal blocks can be connected to one BIU.

Q6: What are the recommended wiring specifications?
A6: Use copper conductors only: AWG #14 or two AWG #16 wires per terminal.

Q7: What are the installation considerations for noise immunity?
A7: A grounded, conductive DIN rail must be used; local transient protection is advised for high-surge environments.

Q8: Are terminating resistors required?
A8: Yes, 75 to 150-ohm resistors must be installed at bus ends or during standalone testing.

GE Genius Bus Interface Unit IC670GBI002H
