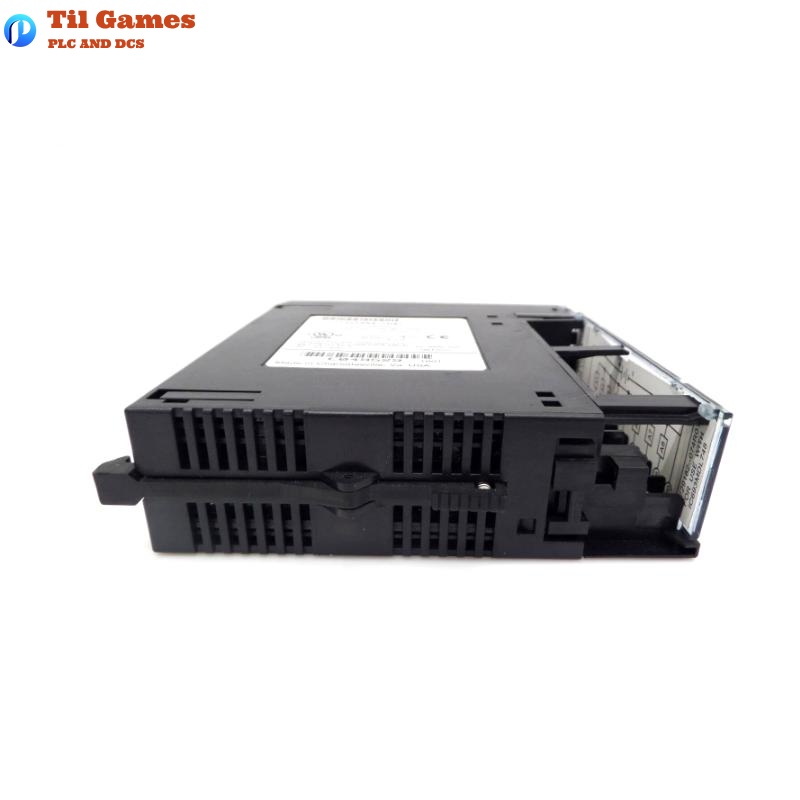

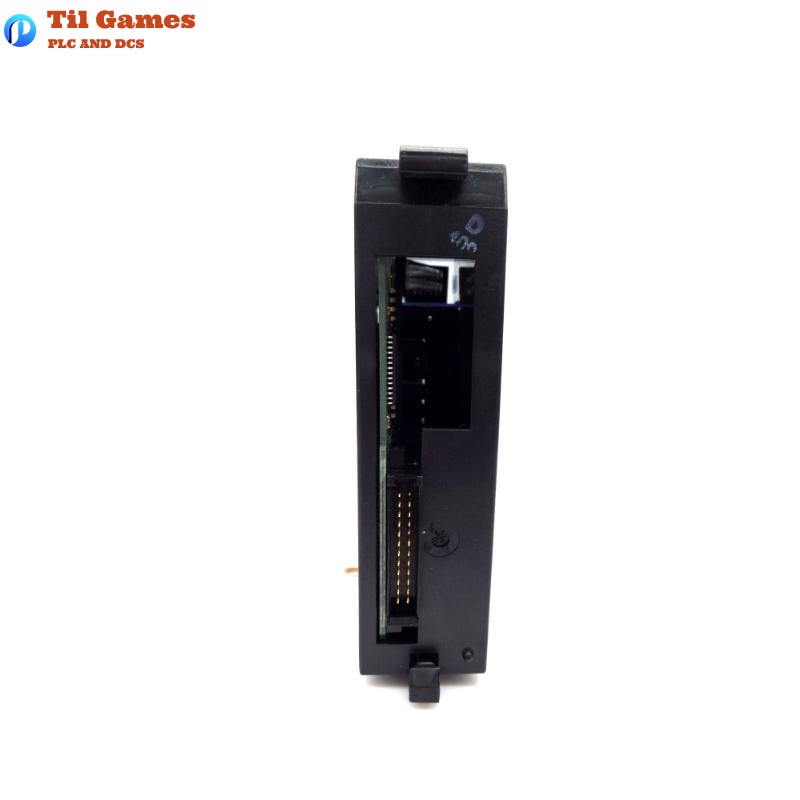

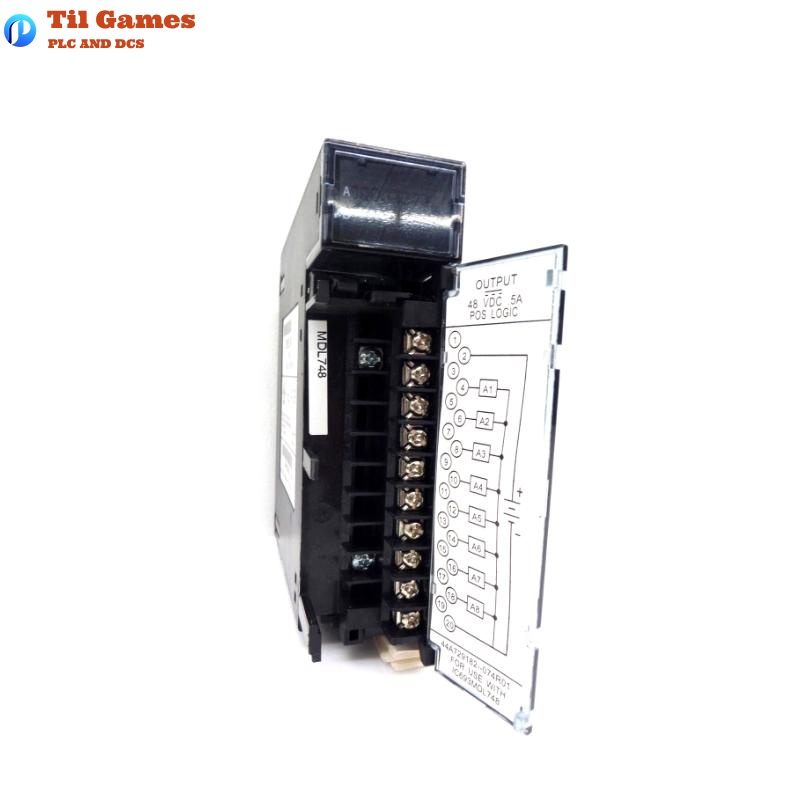

GE IC693MDL748 Series 90-30 DC Voltage Output Module

Frequently Asked Questions (FAQ)

Q1: What type of output logic does the module use?
A1: The IC693MDL748 uses positive logic, sourcing current to the load from a positive power supply.

Q2: What is the maximum current per output point?
A2: Each output point can handle up to 0.5 Amps.

Q3: Does the module have built-in fuse protection?
A3: Yes, it includes two 3.15 A fuses, one for outputs A1–A4 and another for A5–A8.

Q4: Can this module be used with both 24V and 48V DC systems?
A4: Yes, it supports both 24V and 48V DC with ±25% voltage tolerance.

Q5: Are there status indicators on the module?

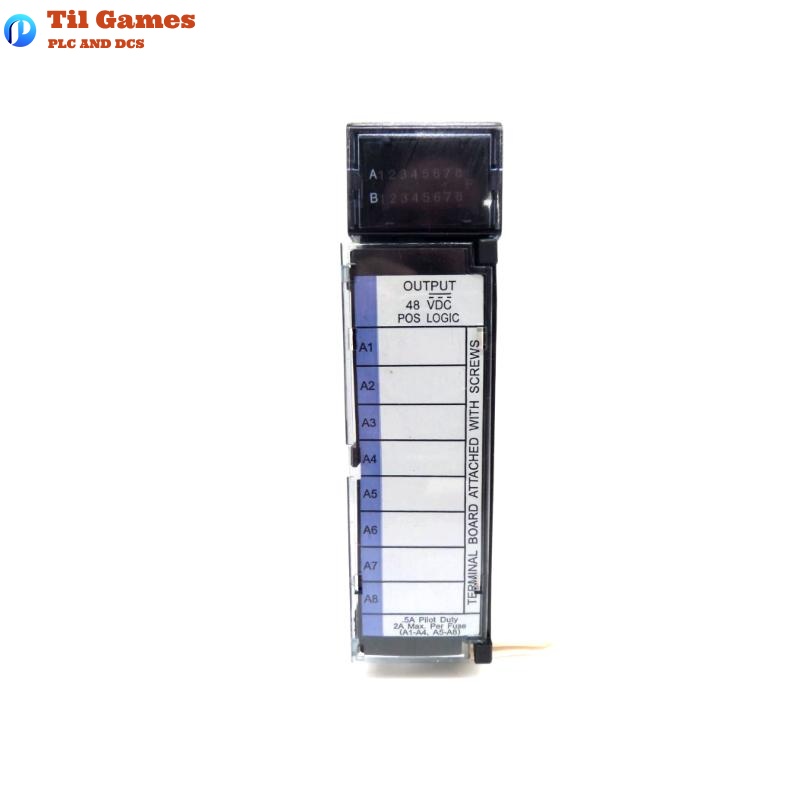

A5: Yes, each output has a green LED indicator and a red LED indicates a blown fuse.

Q6: How many output points are available?
A6: The module provides 8 discrete output points in a single group.

Q7: Is there isolation between logic and field side?
A7: Yes, the module provides 1500V isolation between the logic side and field side.

Q8: Does the module require a specific slot in the rack?
A8: No, it can be installed in any I/O slot of a 5- or 10-slot baseplate.
