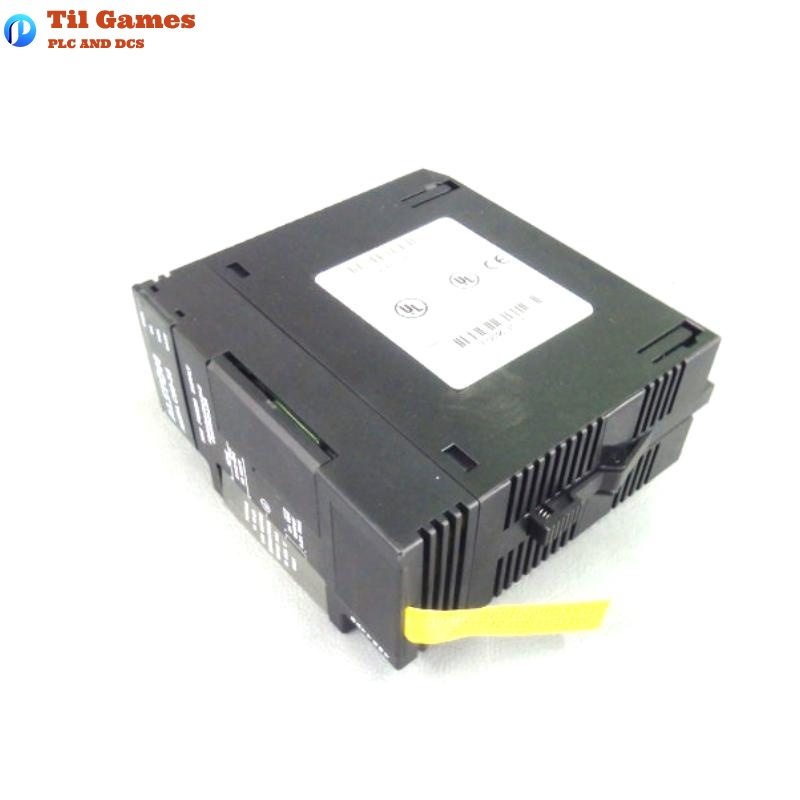

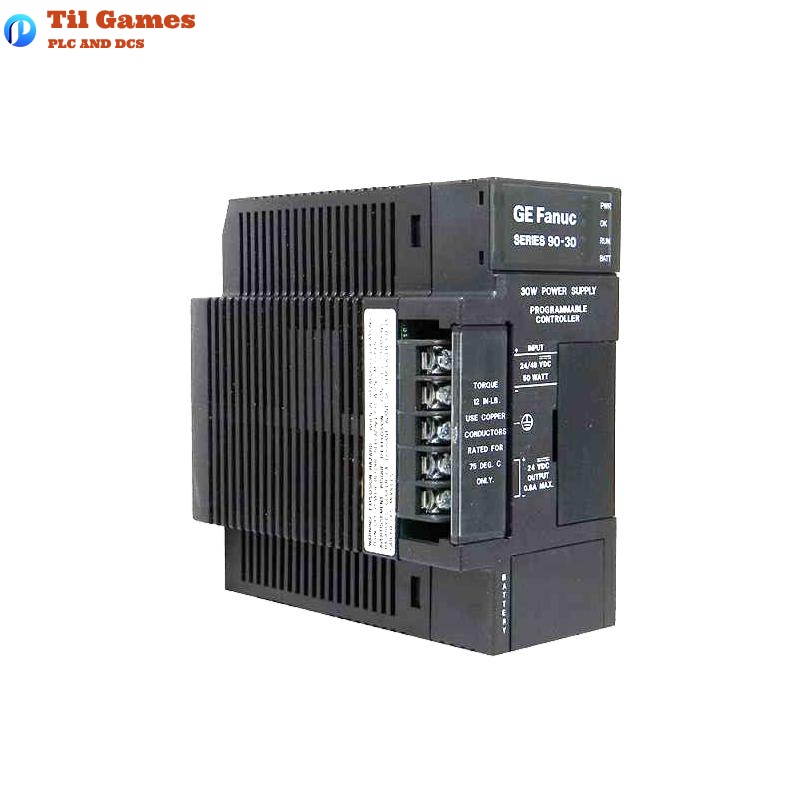

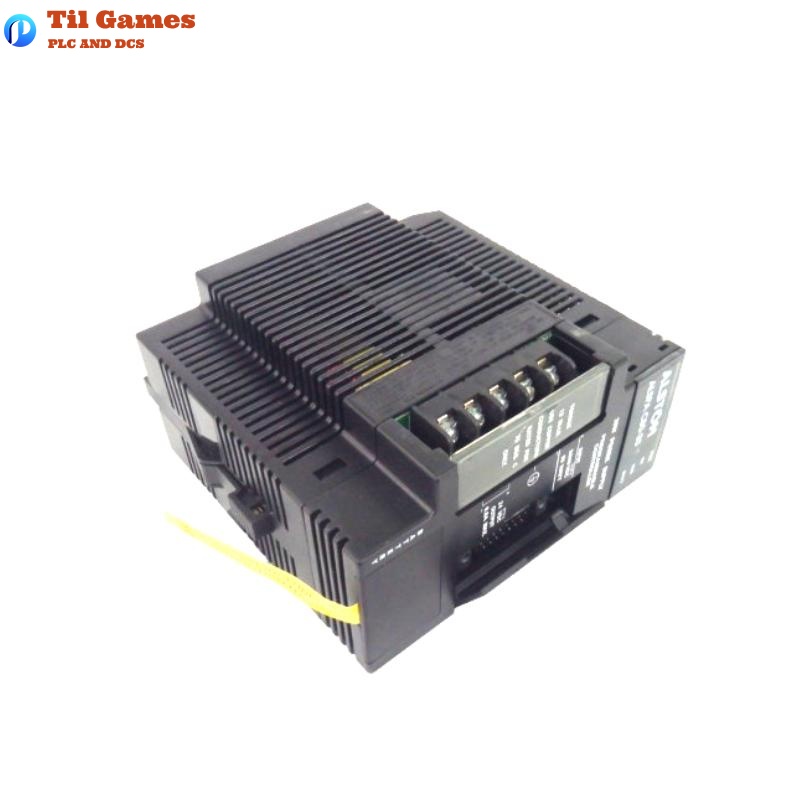

GE IC693PWR325 Series 90-30 Power Supply Module

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range supported by the IC693PWR325?
A1: The module accepts input voltages from 21 VDC to 56 VDC, although it can continue operating at voltages as low as 18 VDC.

Q2: Can the IC693PWR325 start with a voltage lower than 21 VDC?
A2: No, the power supply cannot start if the initial input voltage is below 21 VDC.

Q3: What are the output voltage levels provided by this power supply?
A3: It provides +5 VDC and +24 VDC outputs (relay and isolated).

Q4: What is the maximum load this power supply can handle?
A4: The IC693PWR325 supports a maximum load capacity of 30 Watts.

Q5: Where should this power supply be installed in a GE 90-30 baseplate?
A5: It must be installed in the leftmost slot of the baseplate.

Q6: Is the +24 VDC output isolated?
A6: Yes, the +24 VDC output is isolated and can be used to power some input modules.

Q7: What kind of overvoltage protection is implemented?
A7: The +5 VDC output has an overvoltage protection threshold ranging from 6.4 V to 7 V.

Q8: What type of communication interface does the module support?
A8: It supports RS-485 serial communication.

GE IC693PWR325 Power Supply Module Series 90-30
