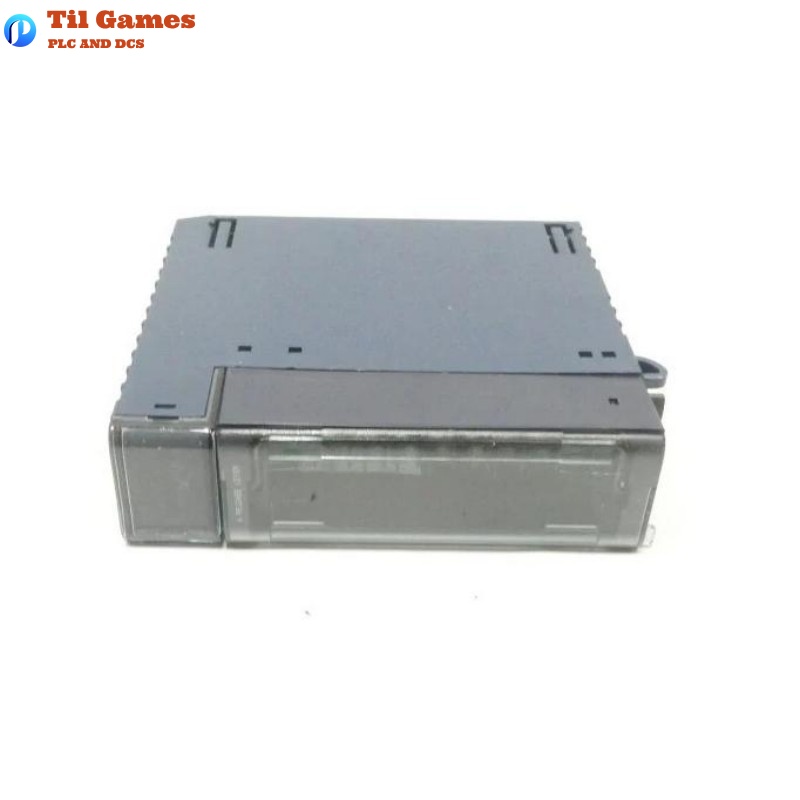

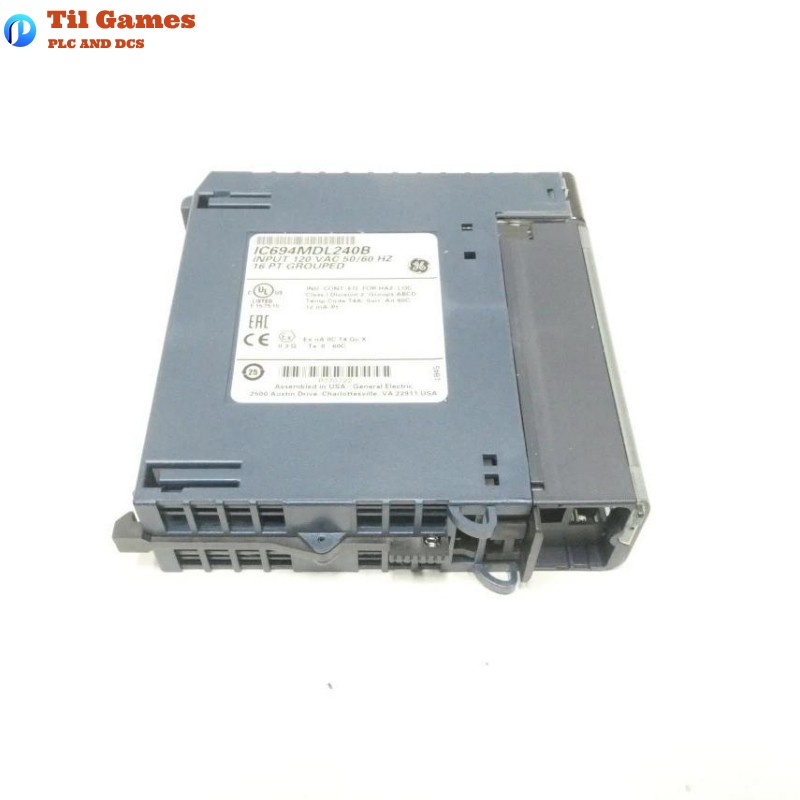

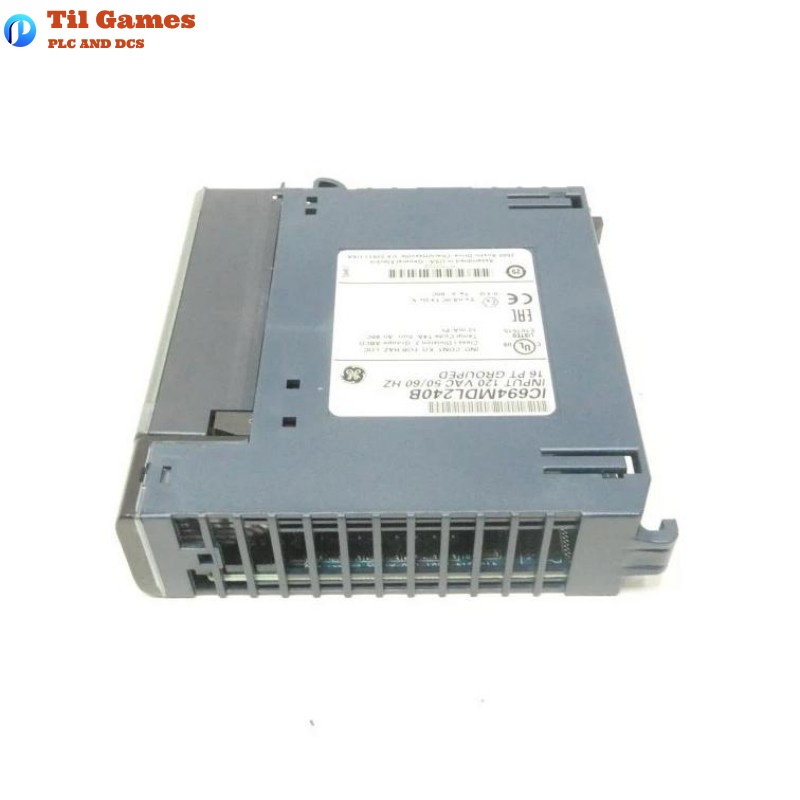

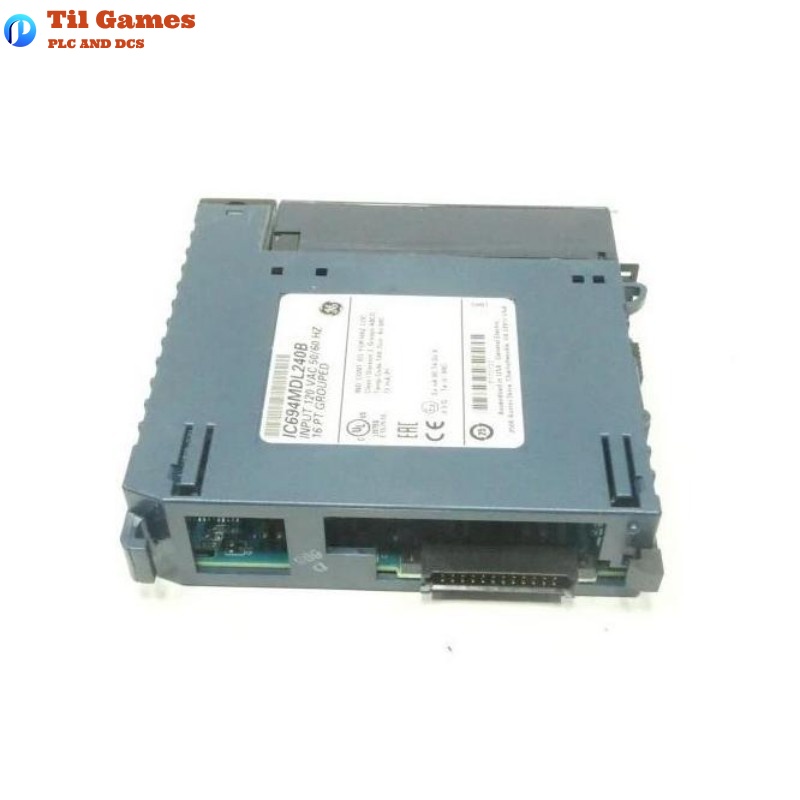

GE IC694MDL240 PACSystems RX3i AC Voltage Input Module

Frequently Asked Questions (FAQ)

Q1: What type of input voltage does the IC694MDL240 support?
A1: It supports 120 VAC input voltage with a range from 0 to 132 VAC at 50/60 Hz.

Q2: How many input channels does this module provide?
A2: The module provides 16 input points with a single common return.

Q3: Can this module be used with DC voltage sources?
A3: No, the IC694MDL240 is designed exclusively for AC voltage input.

Q4: What kind of field devices can be connected?
A4: It supports a wide range of devices including pushbuttons, limit switches, and proximity sensors.

Q5: How is the module’s input status indicated?
A5: Each input point is associated with a green LED that indicates ON/OFF status.

Q6: What is the isolation level between field inputs and backplane?
A6: 250 VAC continuous and 1500 VAC for one minute via optical isolation.

Q7: How does ambient temperature affect input operation?
A7: At higher ambient temperatures, the number of input points that can be simultaneously ON may reduce.

Q8: Can this module be installed in any RX3i I/O slot?
A8: Yes, it can be mounted in any available RX3i I/O slot.

AC Voltage Input Module GE IC694MDL240 PACSystems RX3i
