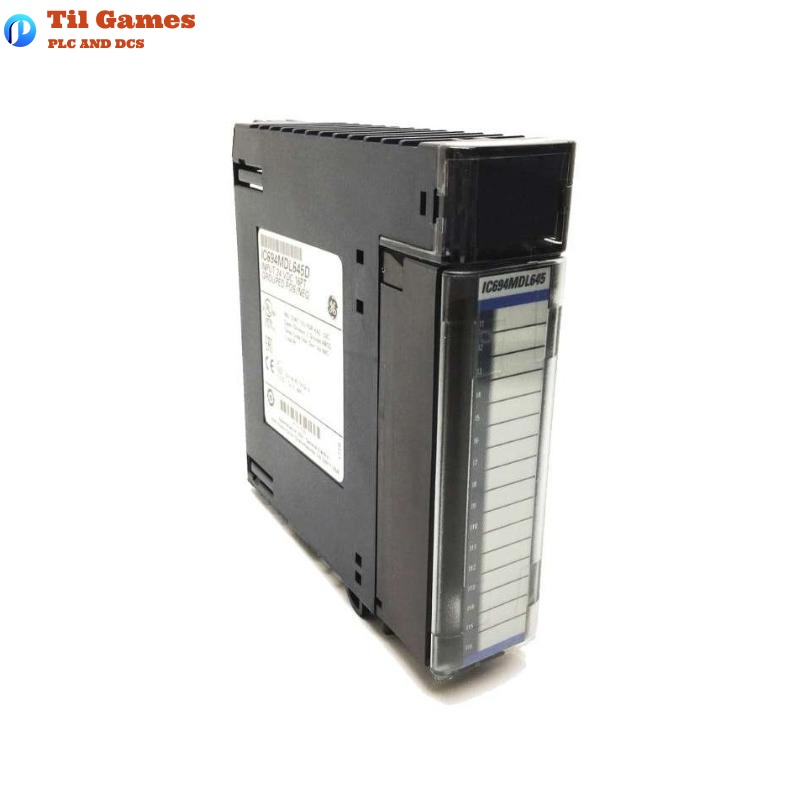

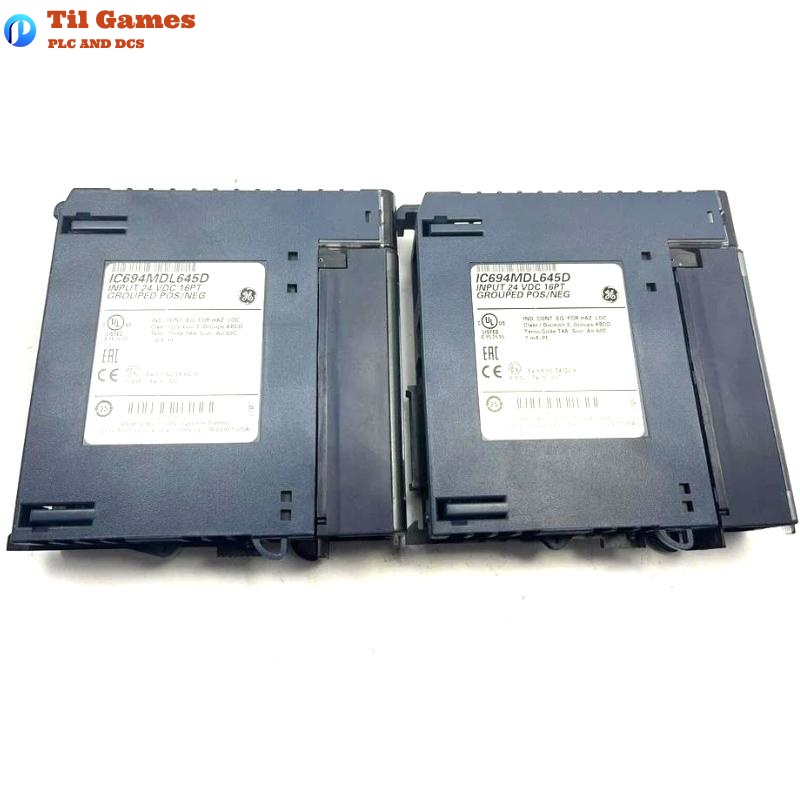

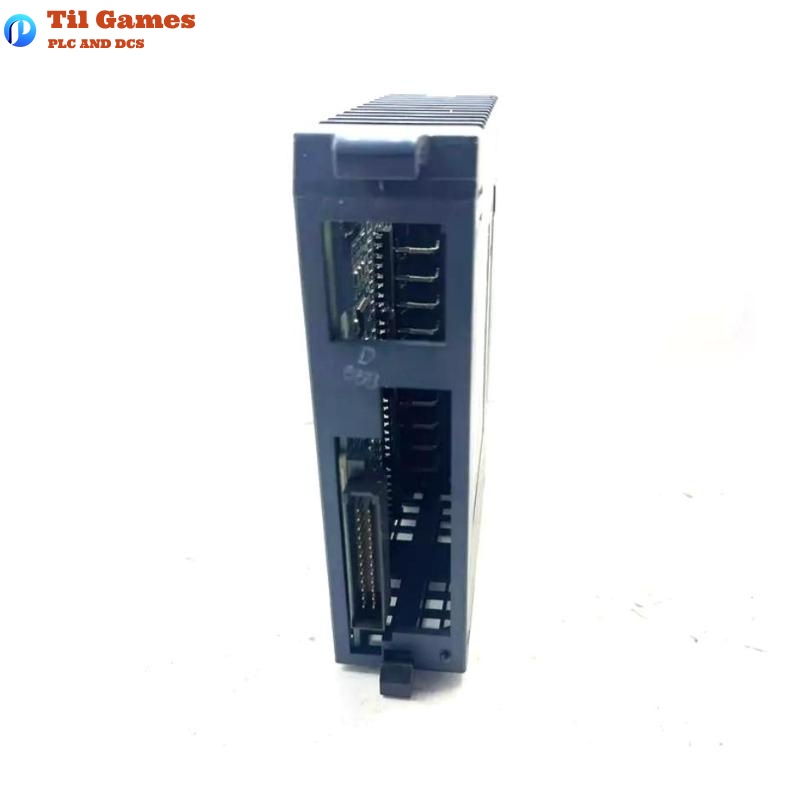

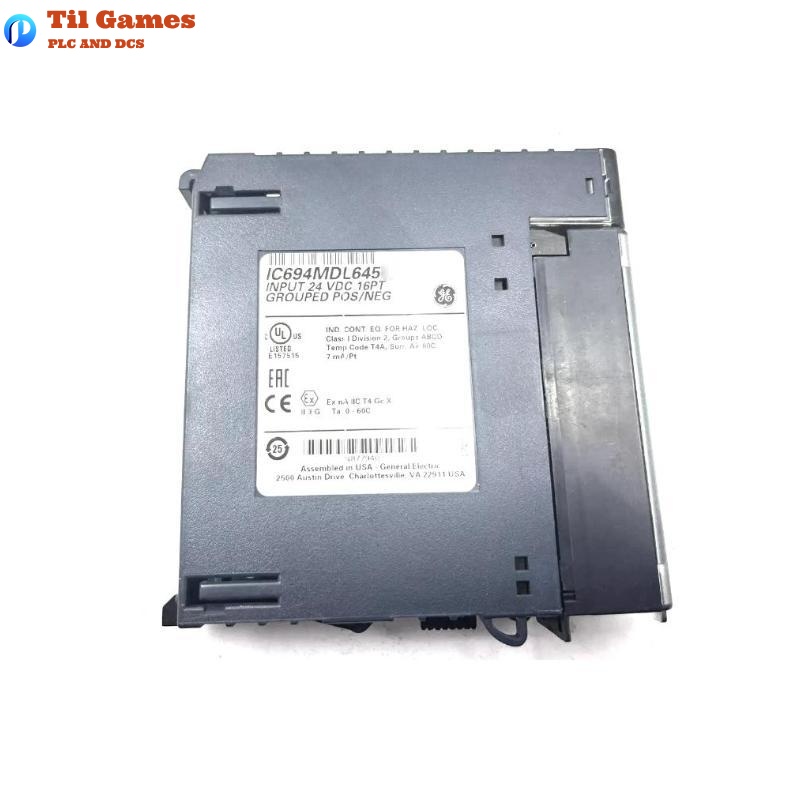

GE IC694MDL645 PACSystems RX3i DC Voltage Input Module

FAQs

Q1: What type of input logic does the IC694MDL645 support?
A1: It supports both positive and negative logic input configurations.

Q2: How many input points are available on this module?
A2: There are 16 discrete input points grouped with a single common terminal.

Q3: Can this module power field devices?
A3: Yes, field devices can be powered using the module’s 24V OUT and 0V OUT terminals.

Q4: What is the isolation rating of the IC694MDL645?
A4: Standard isolation is 250 VAC continuous; if using 24V OUT, it reduces to 50 VAC continuous.

Q5: What is the on-state current requirement for the input signal?
A5: The on-state current must be at least 3.2 mA.

Q6: Is this module hot-swappable?
A6: No, it is not hot-swappable. Ensure power is off before replacing.

Q7: Where can this module be installed within the RX3i system?
A7: It can be installed in any available I/O slot of the RX3i backplane.

Q8: What kind of field devices are compatible with this input module?
A8: Compatible with pushbuttons, limit switches, and electronic proximity switches.

DC Voltage Input Module GE IC694MDL645 PACSystems RX3i
