GE IC694MDL732 DC Output Module (Positive Logic)

FAQ

Q1. What type of module is IC694MDL732?
It is an 8‑point DC output module with positive logic for GE Fanuc PACSystems RX3i PLCs, suitable for driving discrete DC loads.

Q2. How many output channels does this module have?

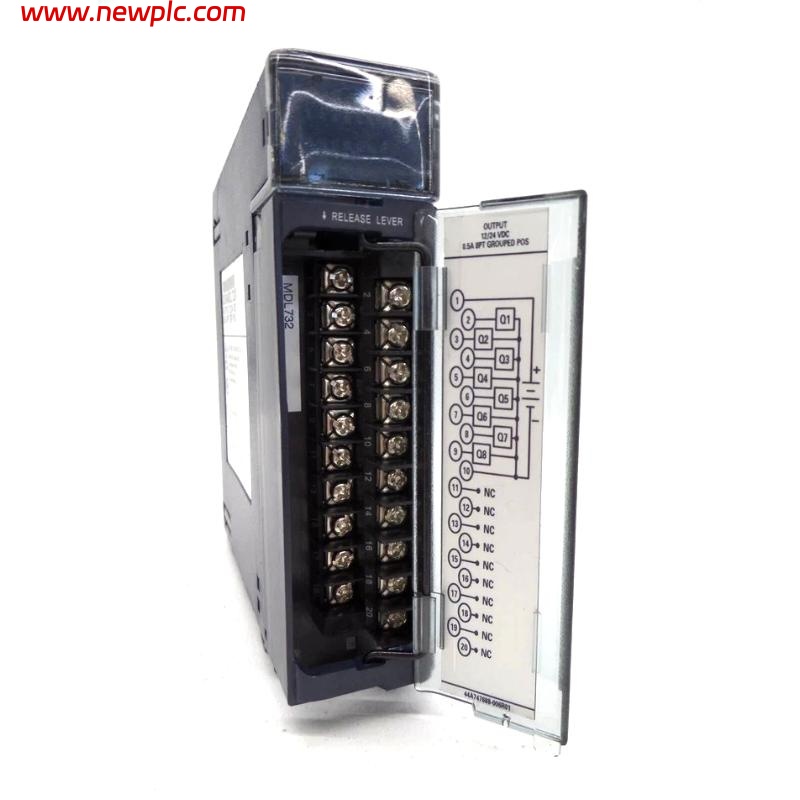

It provides 8 discrete output points configured as one common group.

Q3. What voltage range does it support?
The module operates at 12–24 V DC with standard industrial tolerances.

Q4. How much current can each output deliver?
Each output can source up to 0.5 A, with the group rated up to 2 A total.

Q5. Does this module have electrical isolation?
Yes; it uses optical isolation between field outputs and the backplane/frame for noise immunity and safety.

Q6. What protection indicators are included?

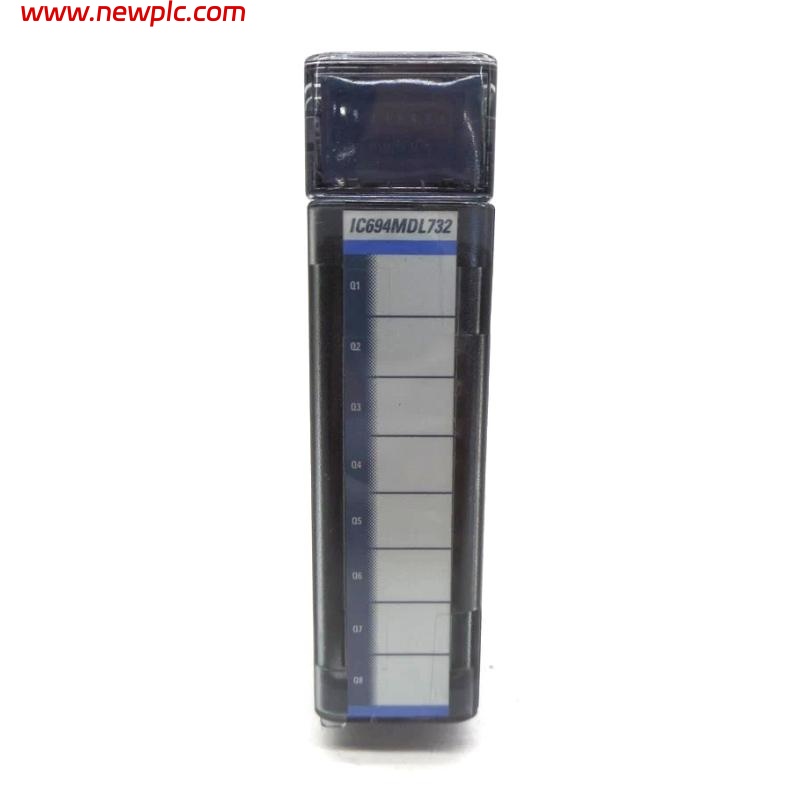

It has individual LEDs to show the ON/OFF status of each output channel.

Q7. Where is this module installed?

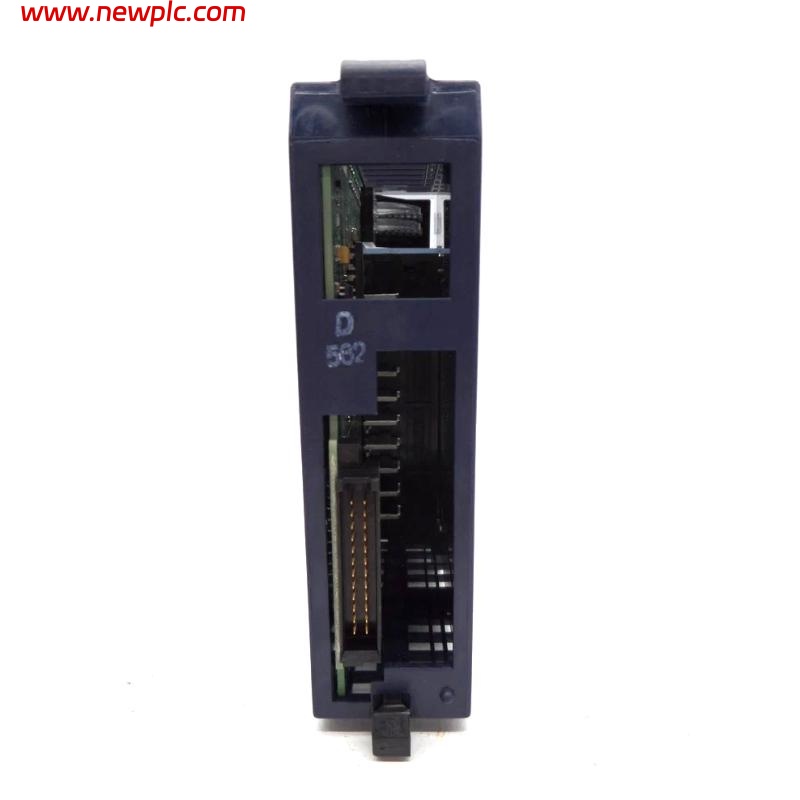

It plugs into a compatible RX3i PLC backplane slot and is hot‑swappable within supported racks.

Q8. What kinds of loads is it suitable for?
It is used for low‑voltage DC loads such as solenoids, indicators, relays, or small actuators in industrial control systems.
