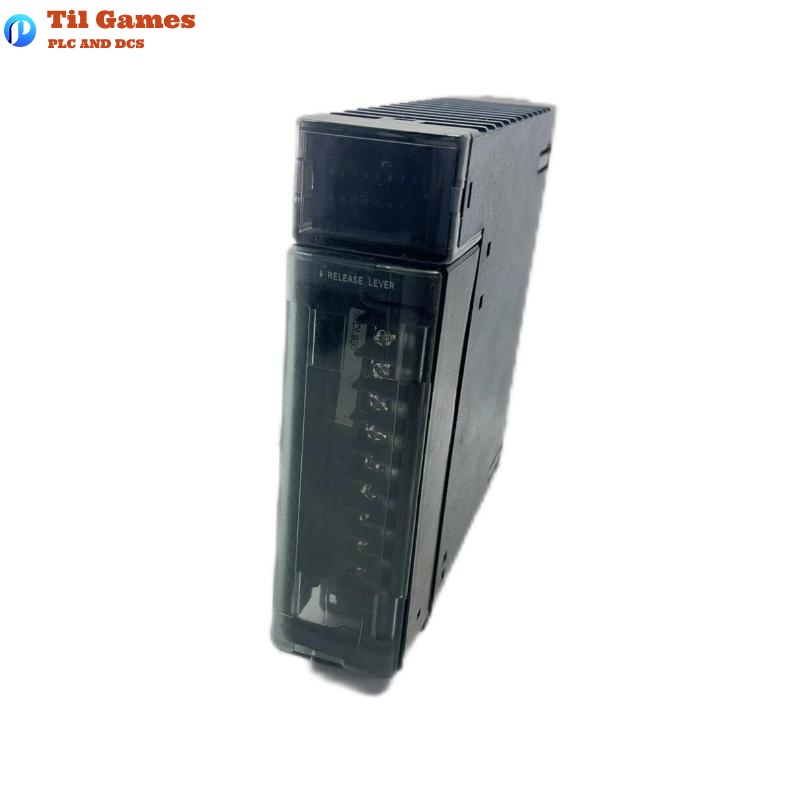

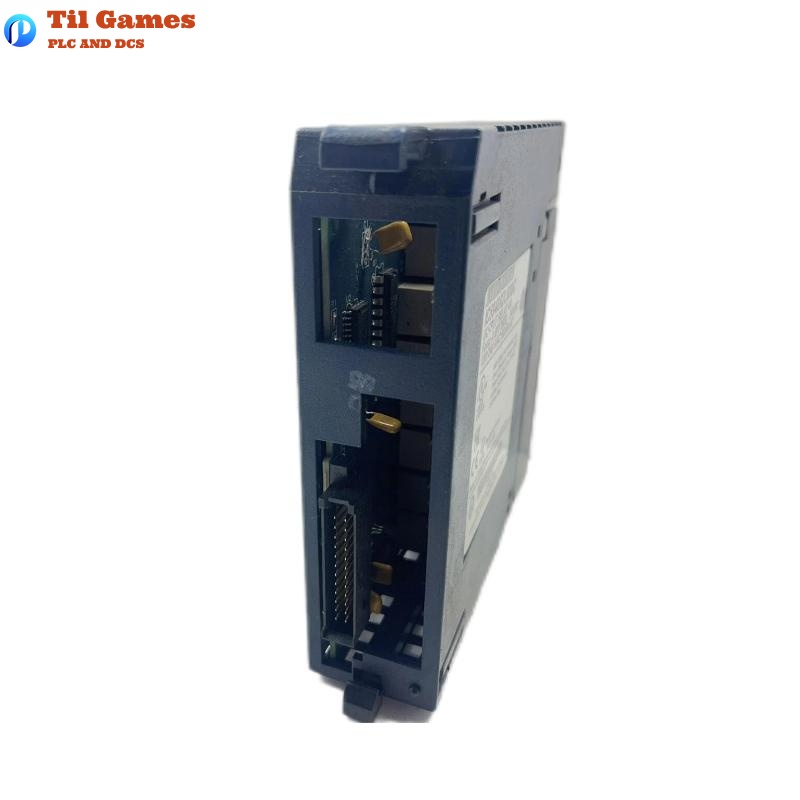

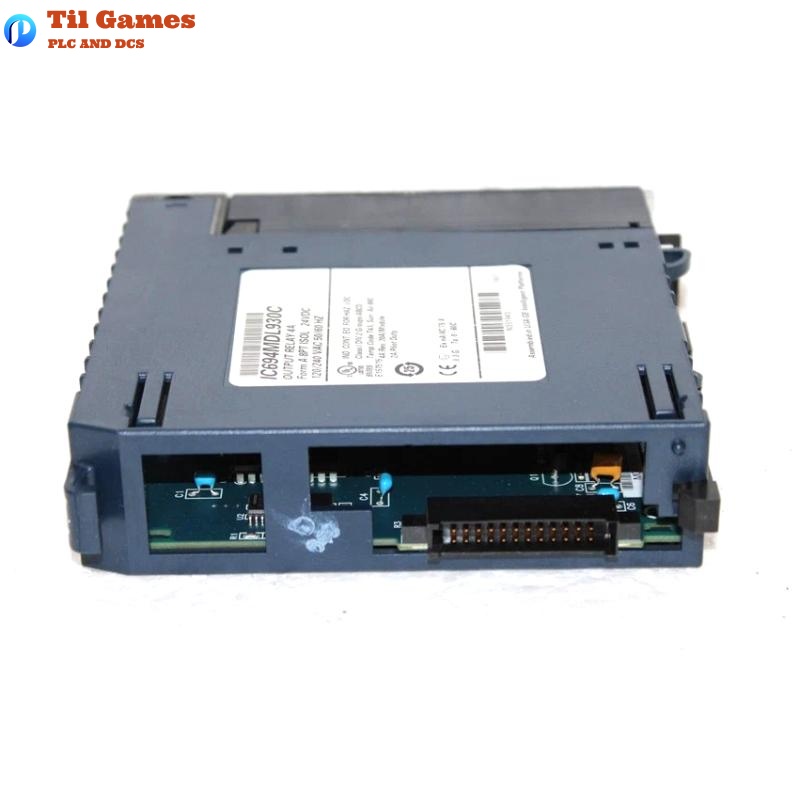

GE IC694MDL930 PACSystems RX3i AC/DC Voltage Output Module

GE IC694MDL930 PACSystems RX3i AC/DC Voltage Output Module FAQ

• Q1: What is the input voltage range for the IC694MDL930 module?

  • A1: The IC694MDL930 module supports an input voltage range of 0 to 125 VDC, 5/24/125 VDC nominal, and 0 to 265 VAC (47 to 63 Hz), with a nominal of 120/240 VAC.

• Q2: How many output points are available on the IC694MDL930 module?

  • A2: The IC694MDL930 module provides 8 output points.

• Q3: What is the load current per point for the IC694MDL930?

  • A3: The load current per point is 2 A.

• Q4: What is the response time of the module?

  • A4: The response time is 15 ms, with a cycle of 15 ms on and 15 ms off.

• Q5: What type of output does the IC694MDL930 module use?

  • A5: The IC694MDL930 uses relay output type.

• Q6: What are the dimensions of the IC694MDL930 module?

  • A6: The module’s dimensions are 34 x 145 x 140 mm.

• Q7: How much does the IC694MDL930 module weigh?

  • A7: The IC694MDL930 weighs 0.159 kg.

• Q8: How is the module connected to the system?

  • A8: The IC694MDL930 module is connected using a terminal block with 20 screws, which is included with the module.

AC/DC Voltage Output Module GE IC694MDL930 PACSystems RX3i
