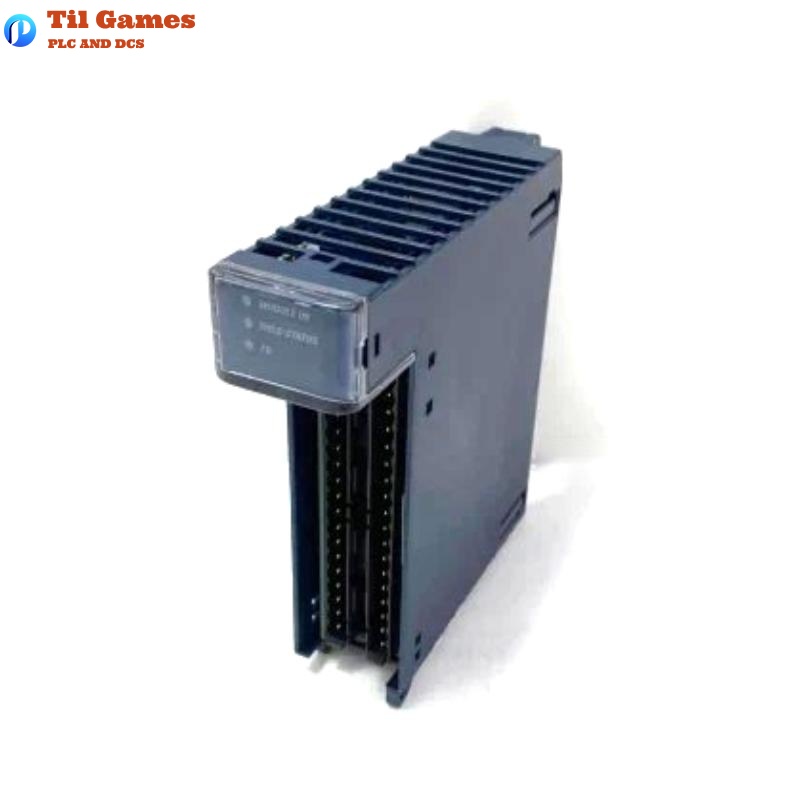

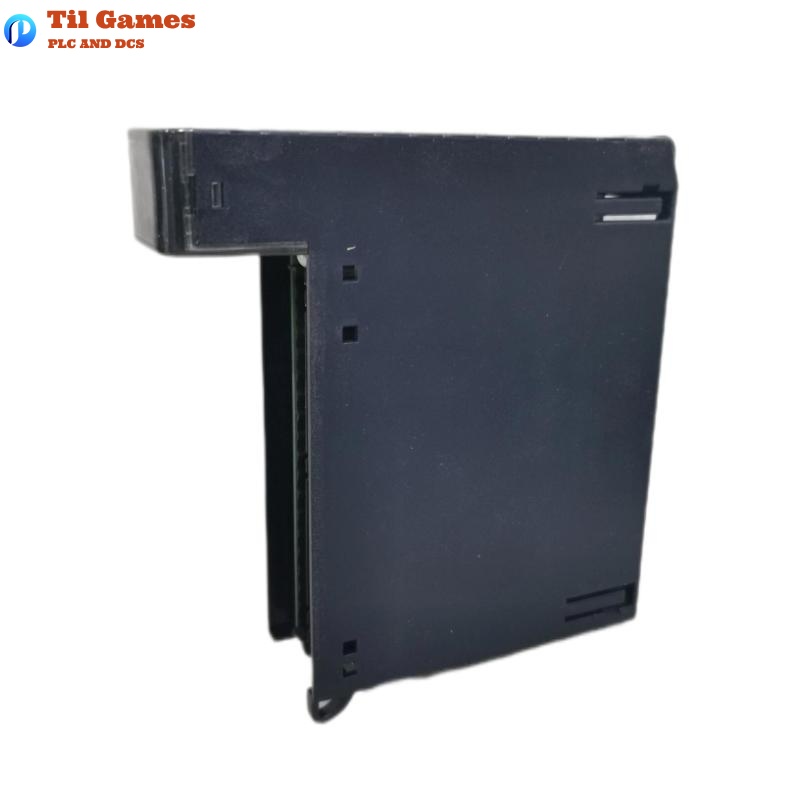

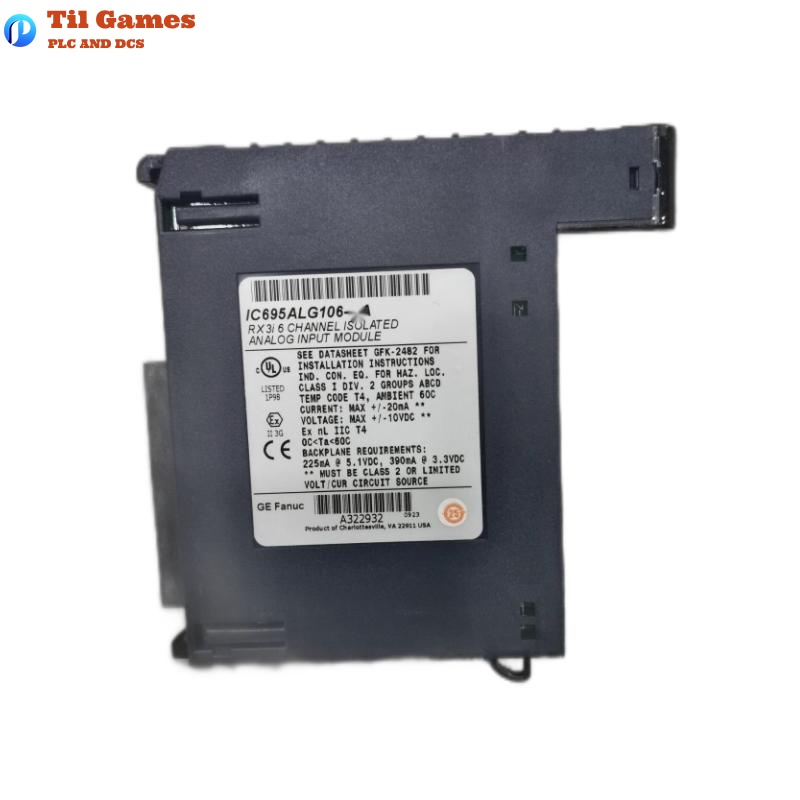

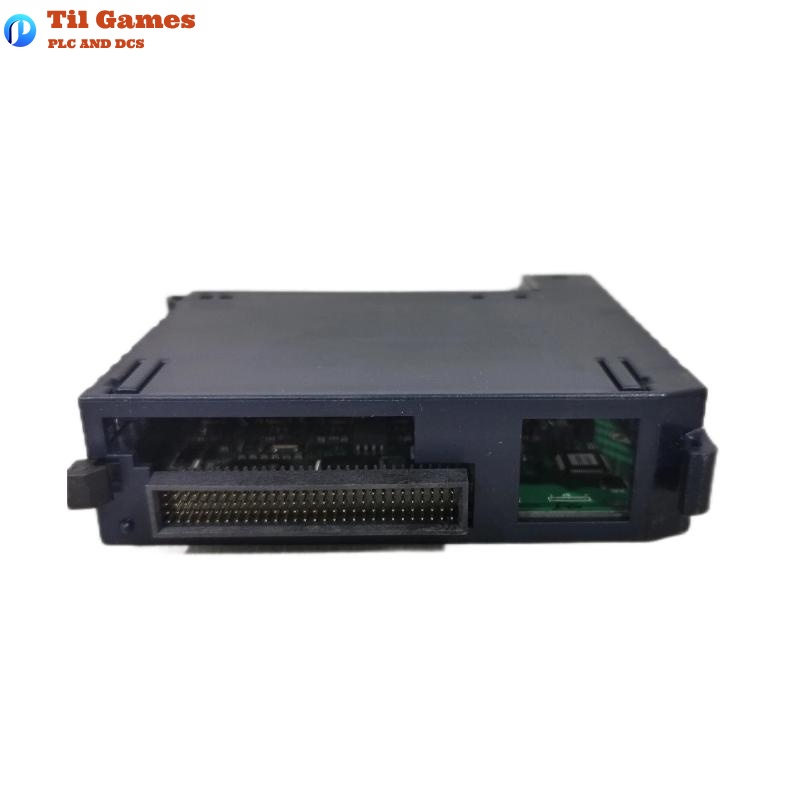

GE IC695ALG106 PACSystems RX3i Isolated Analog Input Module

Frequently Asked Questions (FAQ)

Q1: What type of input signals does the IC695ALG106 support?
A1: It supports both voltage and current signals. Voltage ranges include ±10V, 0–10V, ±5V, 0–5V, and 1–5V. Current ranges include 0–20mA, 4–20mA, and ±20mA.

Q2: How many channels are available on this module?
A2: The IC695ALG106 module has 6 fully isolated input channels.

Q3: What is the module’s resolution?
A3: It features a 16-bit ADC, and the data can be output as either a 32-bit floating point or integer.

Q4: What kind of isolation is provided?
A4: The module provides 250 VAC continuous isolation (1500 VAC for 1 minute) between channels and from the terminal block to the backplane.

Q5: Does the module require external power?
A5: Yes, it requires an external isolated +24 VDC power source ranging from 19.2 to 30 VDC.

Q6: What CPU firmware version is required?
A6: It requires a PACSystems RX3i CPU with firmware version 5.0 or later.

Q7: How accurate is the input measurement?
A7: Accuracy is ±0.1% at 25°C and ±0.2% across the full operating temperature range.

Q8: How often should the module be calibrated?
A8: It is recommended to calibrate the module every 12 months to maintain accuracy.

GE IC695ALG106 Isolated Analog Input Module PACSystems RX3i
