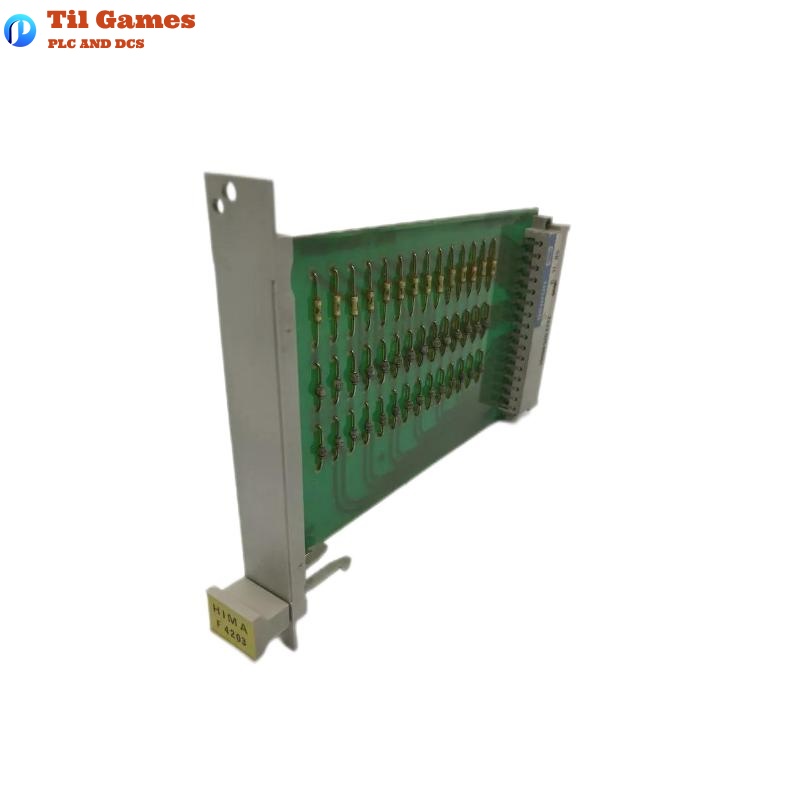

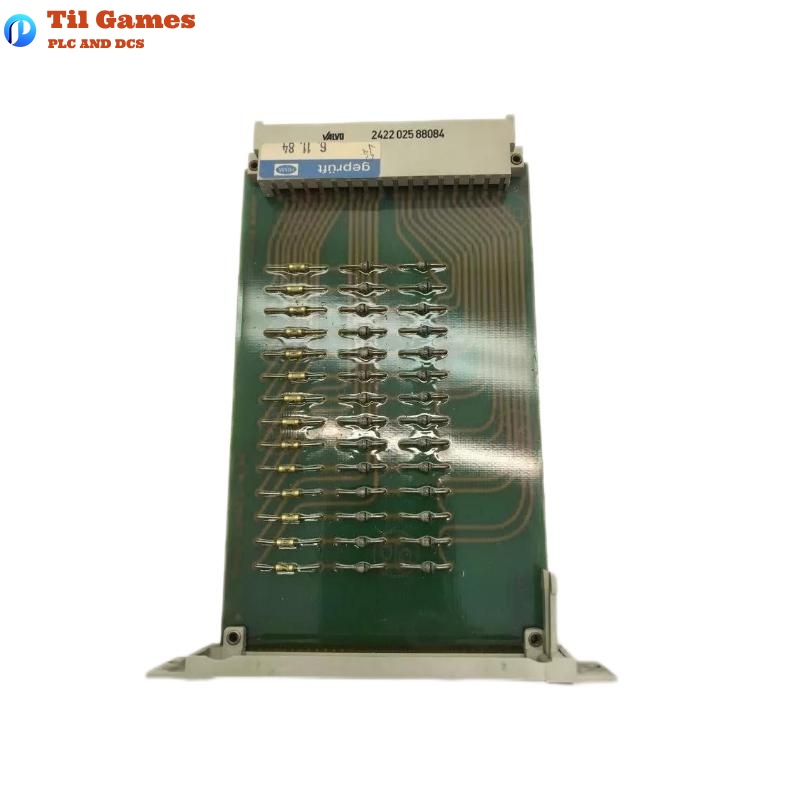

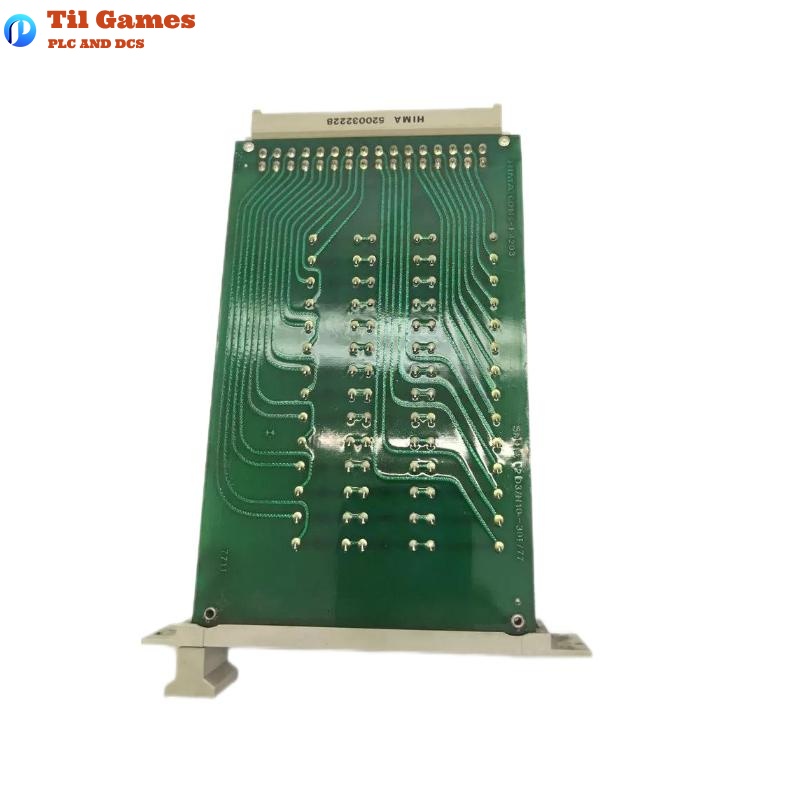

HIMA F4203 Planar F System Safety-Related Diode Pre-Unit

Frequently Asked Questions (FAQ)

Q1: What is the main function of the HIMA F4203 module?
A1: Its primary function is diode pre-processing of input signals, offering overvoltage protection and signal isolation to safeguard downstream modules.

Q2: Which systems is the F4203 compatible with?
A2: The F4203 is specifically designed for the HIMA Planar F safety system and integrates seamlessly with other safety-related modules in that platform.

Q3: Does the F4203 provide electrical isolation?
A3: Yes, it provides full electrical isolation between input and output for enhanced noise immunity and system safety.

Q4: What is the installation method of the F4203 module?
A4: The module supports DIN rail mounting, allowing flexible configuration within control cabinets.

Q5: What is the operating temperature range of this module?
A5: It operates reliably in environments ranging from 0°C to +60°C, suitable for most industrial sites.

Q6: What are the typical application areas for the F4203?
A6: Typical applications include process industries, chemical plants, petrochemical facilities, and power automation systems requiring signal protection and reliability.

Q7: Are there any storage precautions for the module?
A7: Yes, it should be stored in environments between -25°C and +85°C, avoiding moisture and condensation.

Q8: What are the physical dimensions and weight of the module?
A8: The module measures 220 x 100 x 30 mm and weighs approximately 0.14 kg, making it suitable for compact system integration.
