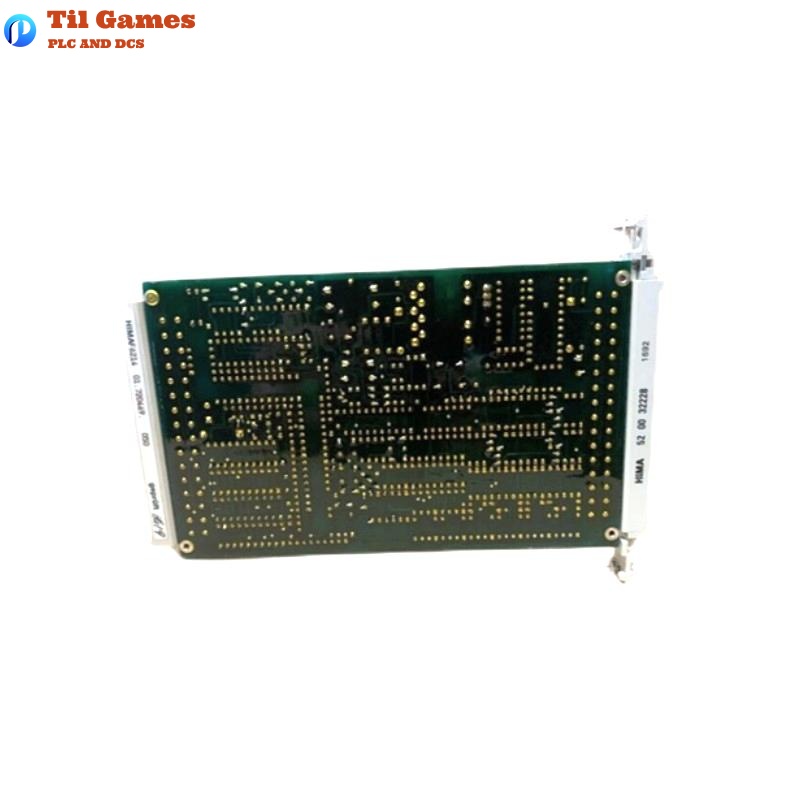

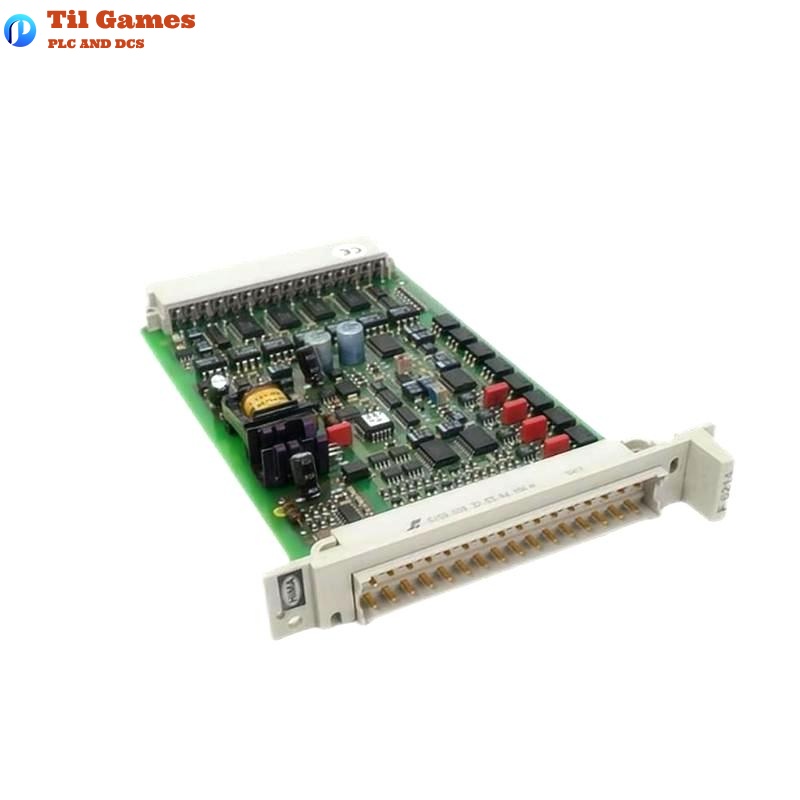

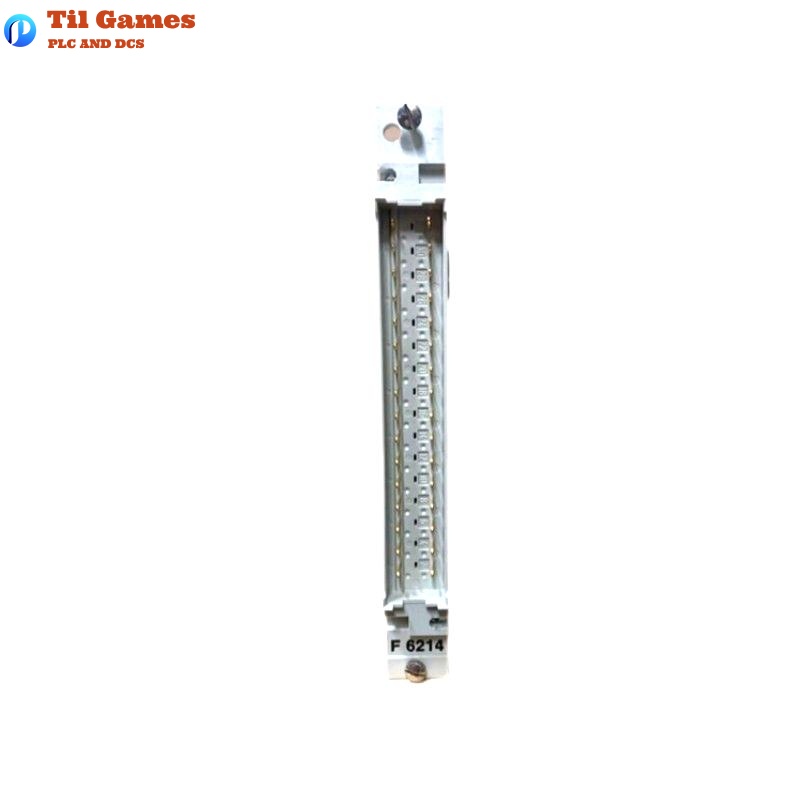

HIMA F6214 Safety Related 4-Fold Analog Input Module

FAQ

Q1: What types of input signals are supported by the F6214 module?
A1: It supports 0…20 mA current inputs, 0…1 V, 0…5 V, 0…10 V voltage inputs, and 4…20 mA 2-wire transmitters.

Q2: What is the resolution of the module?
A2: The module has a resolution of 12 bits for precise analog signal processing.

Q3: Does the F6214 provide safety isolation?
A3: Yes, the module provides safety isolation between inputs and the system for safety-critical applications.

Q4: What is the typical error range of the module?
A4: Basic error is 0.2% at 25°C, and operating error is 0.3% between 0°C and +60°C.

Q5: What are the power supply requirements for the module?
A5: It requires dual power supply: 5 V DC (150 mA) and 24 V DC (250 mA).

Q6: What is the maximum supported load impedance?
A6: The module supports a maximum load impedance of 900 Ω.

Q7: How many analog input channels does the module support?
A7: It supports 4 analog input channels.

Q8: What are the dimensions and weight of the module?
A8: Dimensions are 120 × 80 × 30 mm, and the weight is 0.35 kg.

4-Fold Analog Input Module F6214 HIMA Safety Related
