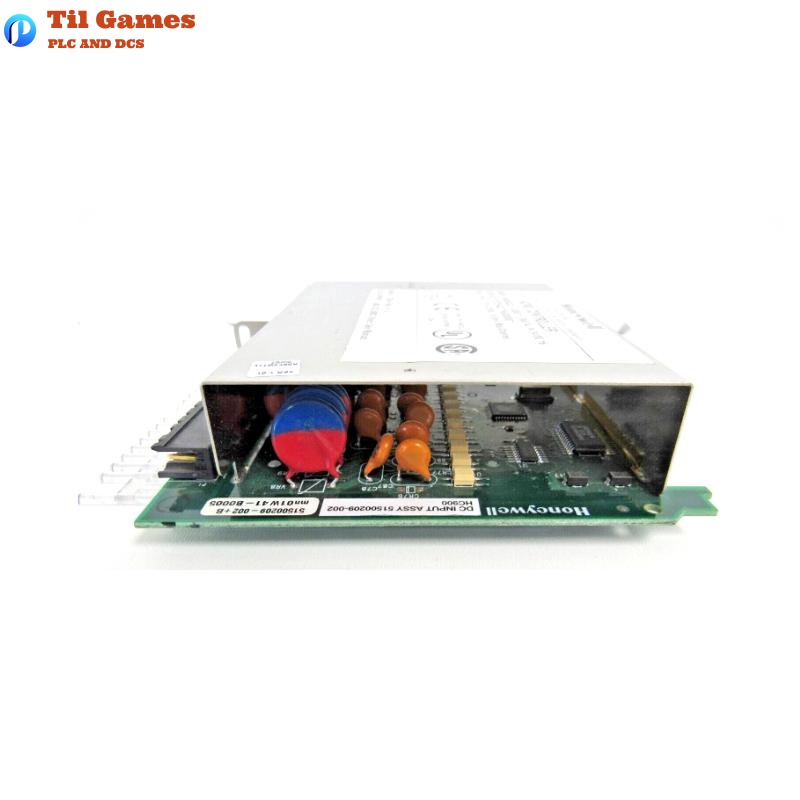

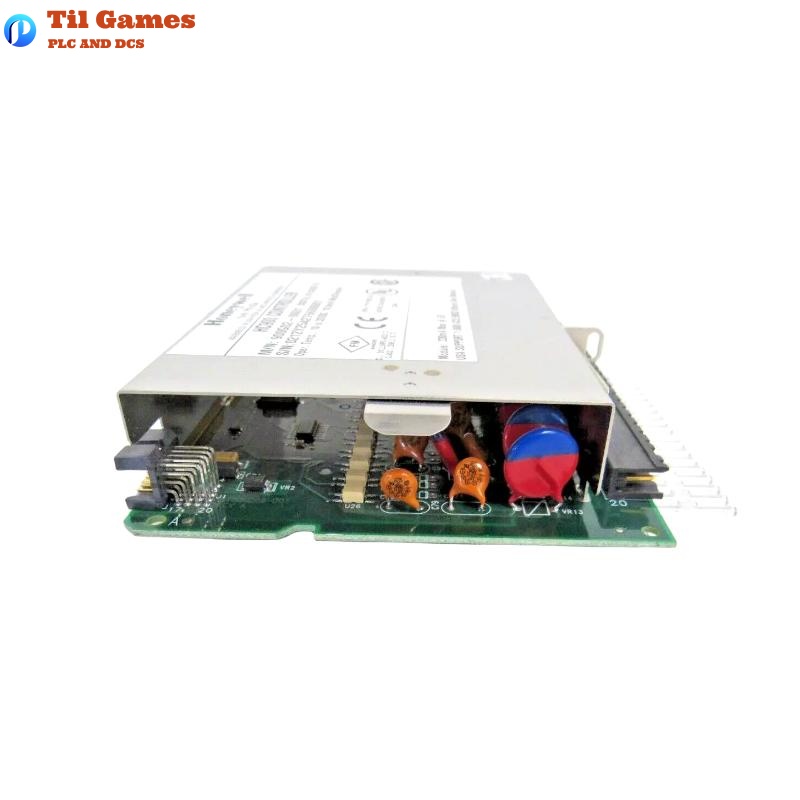

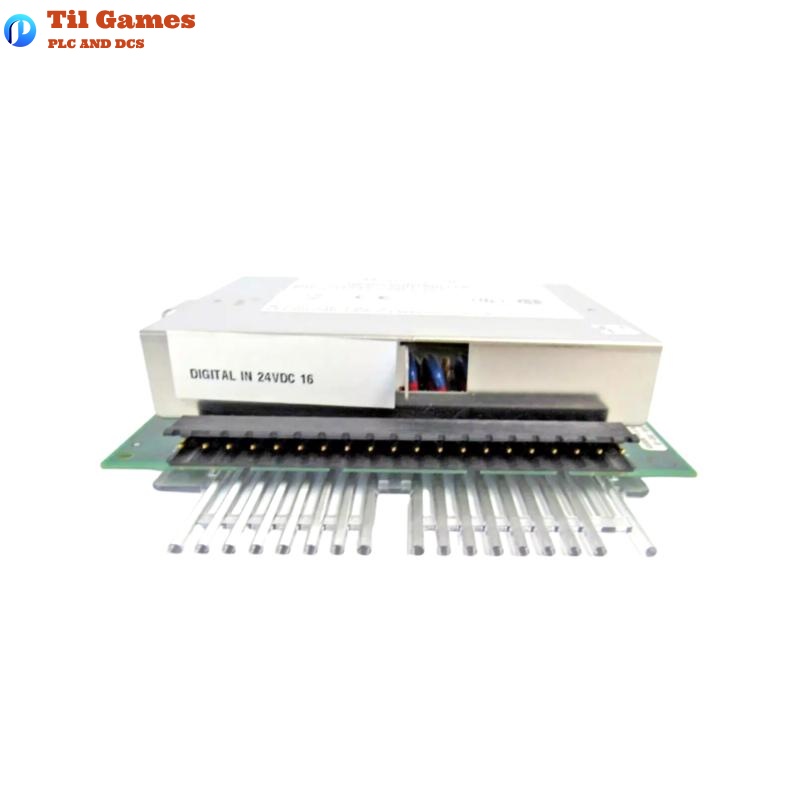

Honeywell 900G02-0001 ControlEdge HC900 Digital Input Module

FAQ

Q1: What type of input does the 900G02-0001 module support?
A1: It supports digital DC voltage input using a sinking (low-side switching) configuration.

Q2: How many input channels are available on the module?
A2: The module provides 16 input channels, organized into two electrically isolated groups of 8.

Q3: What is the acceptable input voltage range?
A3: The input voltage range is 10 to 32 VDC, with a peak tolerance of 32 VDC.

Q4: What voltage thresholds define ON and OFF states?
A4: The ON voltage must be at least 9.5 VDC, and the OFF voltage must be 3.5 VDC or less.

Q5: Is channel-to-channel isolation provided on the module?
A5: Yes, the module provides galvanic isolation for each group of 8 channels to the controller logic.

Q6: What is the response time for input state changes?
A6: The OFF-to-ON and ON-to-OFF response times are both less than or equal to 4 milliseconds.

Q7: What are the power requirements for the module?
A7: The module requires 5VDC power with a maximum current of 130mA. It does not require 24VDC power.

Q8: What are the module’s physical dimensions and weight?
A8: The module measures 137 x 35.6 x 151.7 mm and weighs 0.354 kg.
