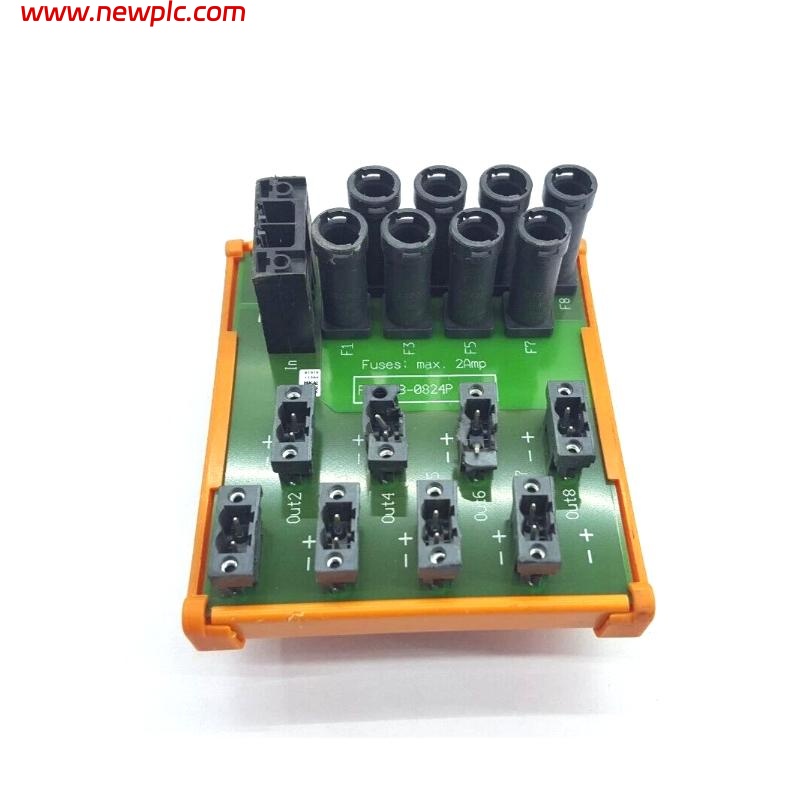

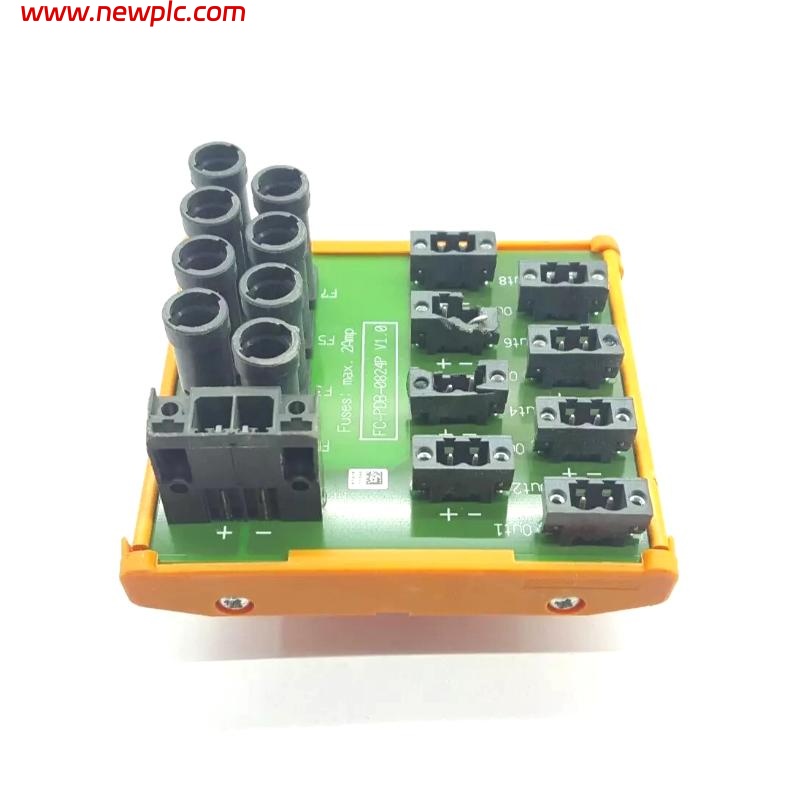

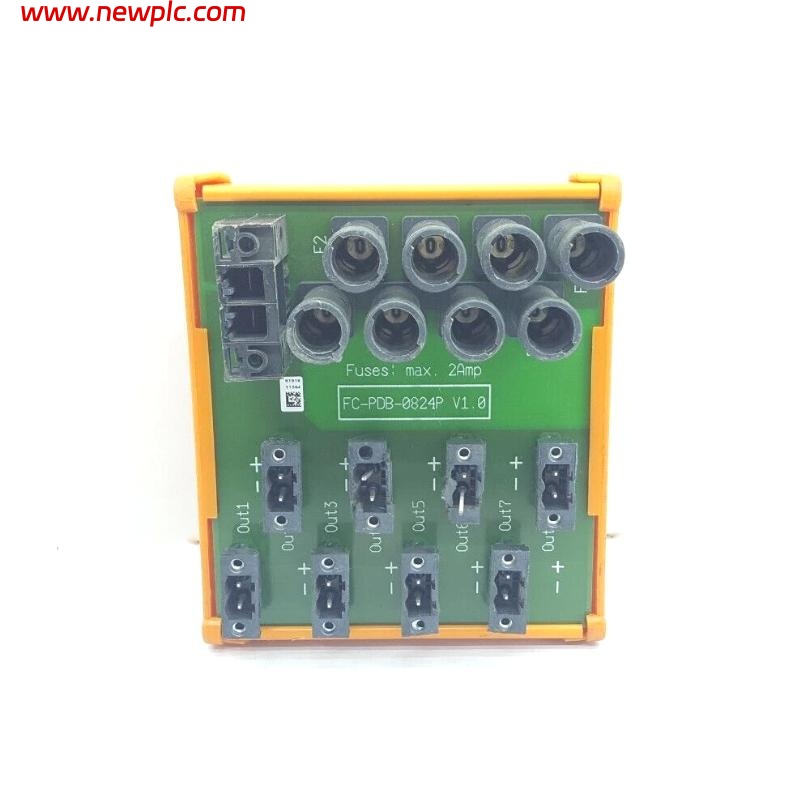

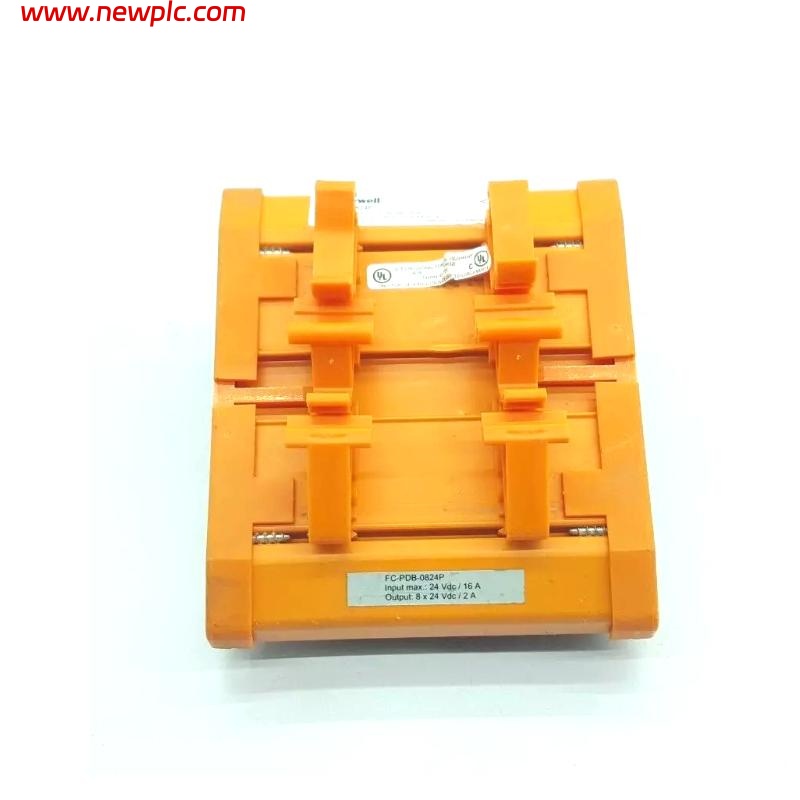

Honeywell FC-PDB-0824P Power Distribution Board

FAQ

• Q1: What is the maximum current capacity per output channel?
  A1: Each output channel supports up to 2 A.

• Q2: What is the input voltage range for the FC-PDB-0824P?
  A2: The board operates with a nominal input of 24 VDC, supporting up to 16 A.

• Q3: What type of mounting does the power distribution board support?
  A3: The FC-PDB-0824P is designed for DIN rail mounting.

• Q4: What are the environmental operating conditions for this board?
  A4: It can operate in temperatures ranging from -40°C to +70°C.

• Q5: What type of connectors are used for input and output wiring?
  A5: Input uses a 2-pole header with keying, and output uses a 2-pole socket block.

• Q6: What fuse rating is required for each output?
  A6: The board uses slow-acting fuses rated up to 2 AT, size 5 x 20 mm.

• Q7: What approvals and certifications does this board have?
  A7: It has CE, UL, TUV, and CSA approvals (CSA pending).

• Q8: What are the physical dimensions and weight of the FC-PDB-0824P?
  A8: The board measures 94 x 109 x 71 mm and weighs 0.93 kg.

FC-PDB-0824P Honeywell Power Distribution Board
