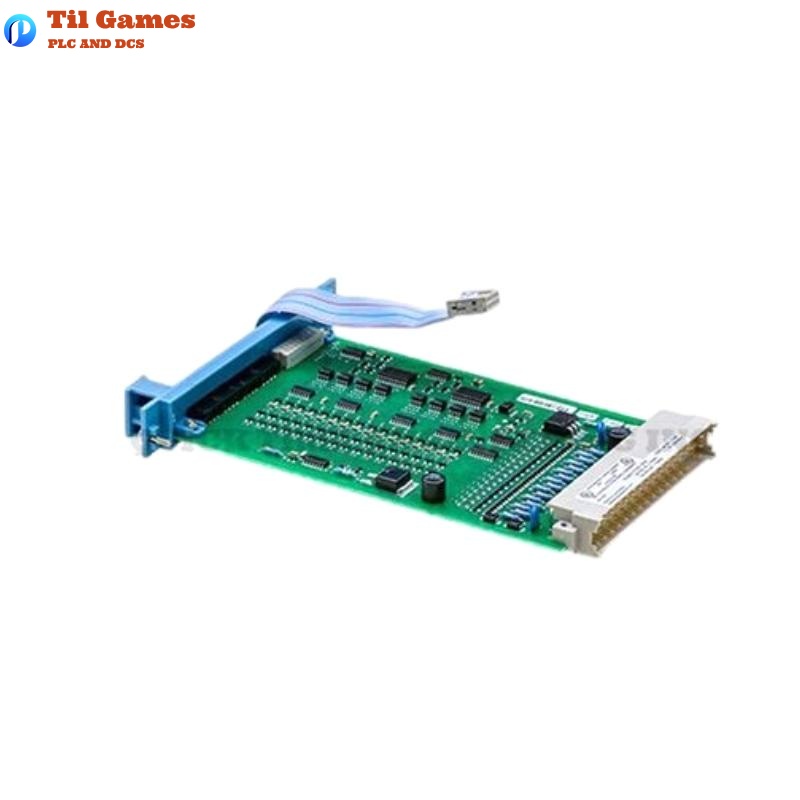

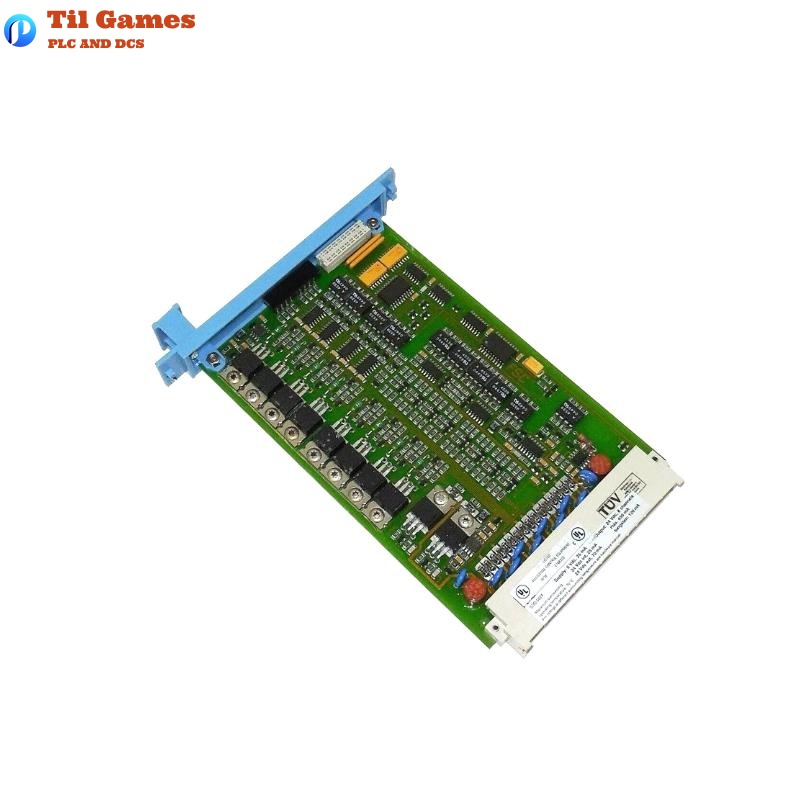

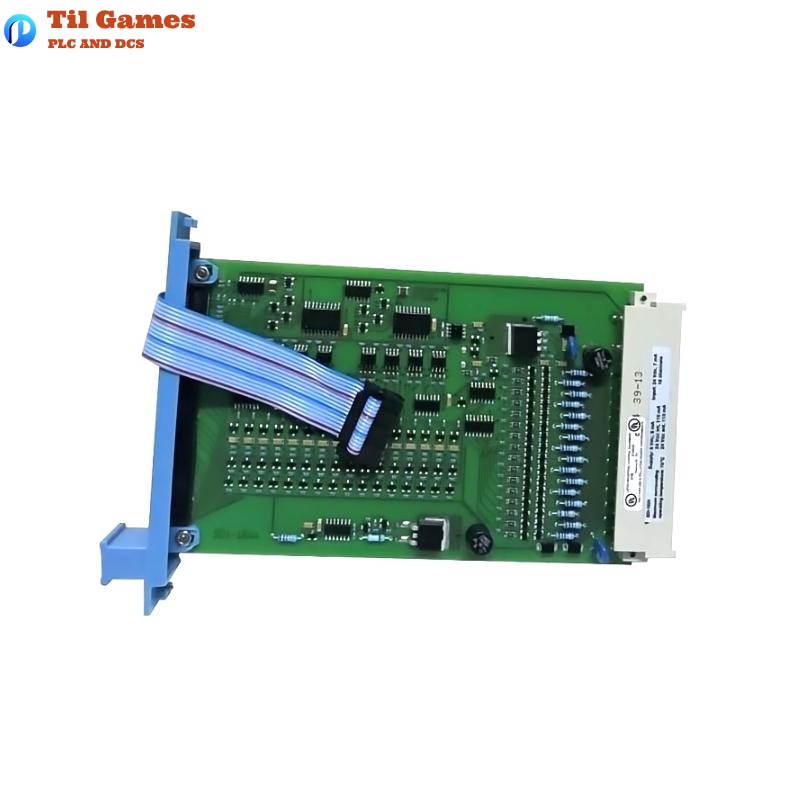

Honeywell FC-SDO-1624 Safe Digital Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the FC-SDO-1624 provide?
A1: It provides 16 digital output channels.

Q2: What is the maximum output current per channel?
A2: 100 mA per channel.

Q3: Does the module feature short-circuit protection?
A3: Yes, it is equipped with short-circuit protection on all outputs.

Q4: What is the typical voltage drop under full load?
A4: Less than 1.2 V DC at 100 mA.

Q5: What is the maximum supported capacitive load?
A5: Up to 1 µF.

Q6: What are the power requirements?
A6: Requires 5 V DC at 35 mA and 24 V DC at 85 mA (without output load).

Q7: Is the module certified for industrial use?
A7: Yes, it is certified with CE, TUV, UL, and CSA.

Q8: What are the dimensions and weight of the module?
A8: 100 × 160 × 20.32 mm in size, weighs 0.5 kg.

FC-SDO-1624 Honeywell Safe Digital Output Module

We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.

For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.

Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
