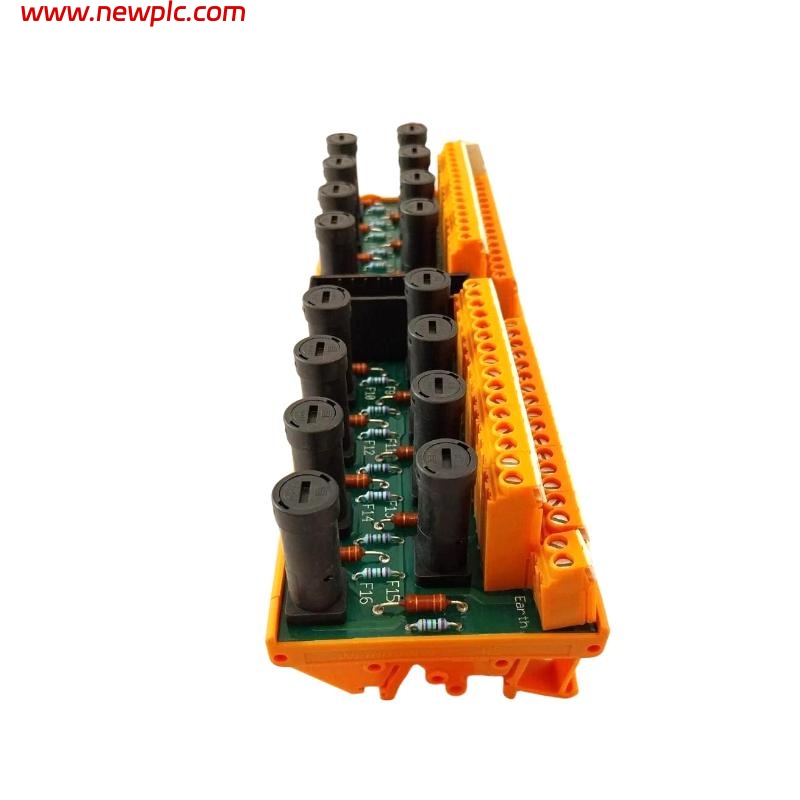

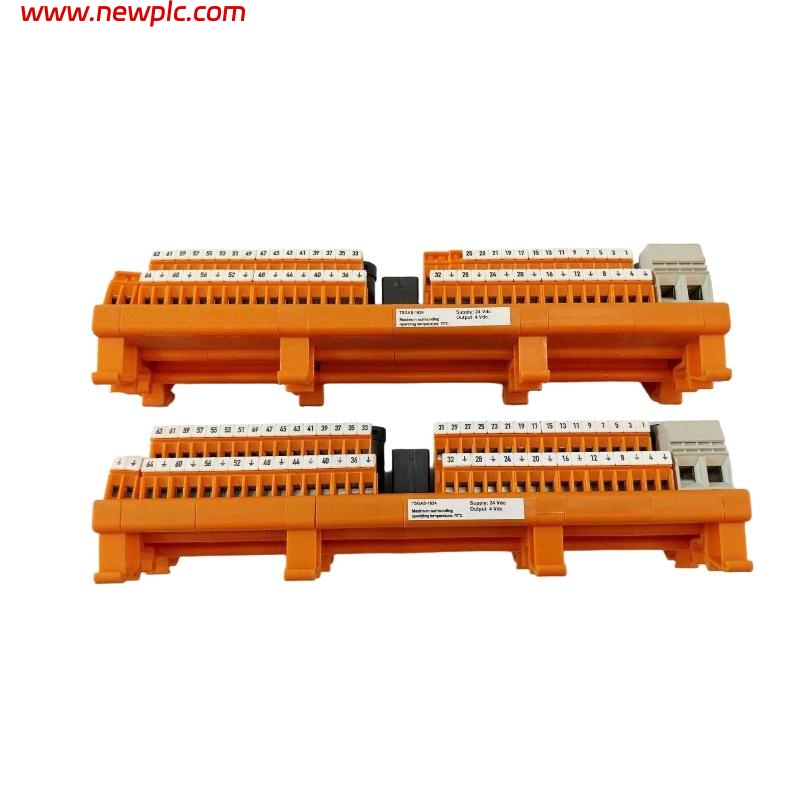

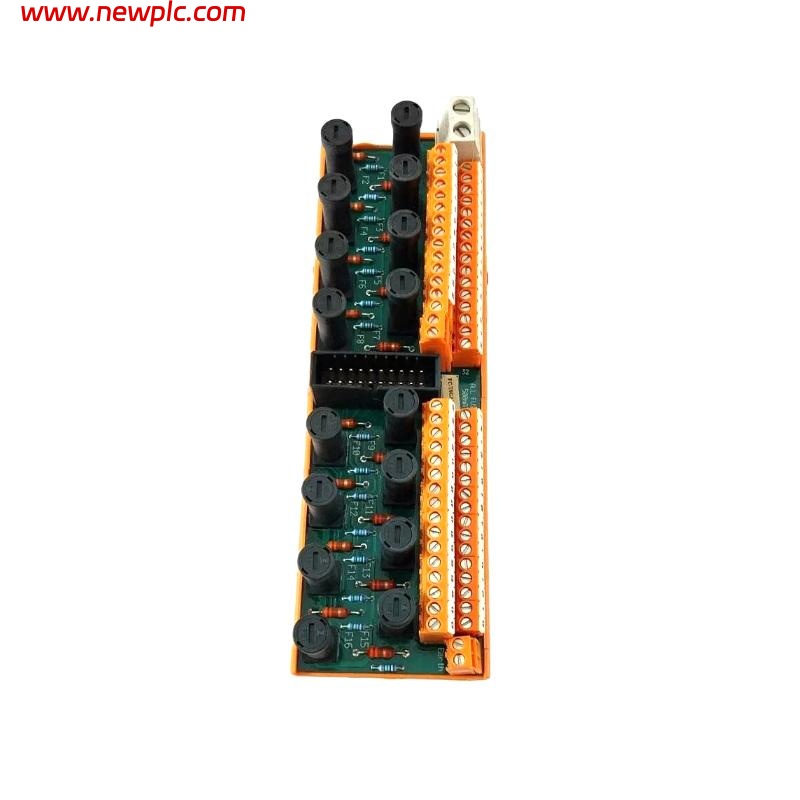

Honeywell FS-TSGAS-1624 Fail-Safe Gas-Flame Detector Input Field Termination Assembly (FTA)

FAQ

• Q1: What is the maximum input signal the FS-TSGAS-1624 can accurately process?
  A1: The module accurately processes 0–20 mA DC signals from gas and flame detectors.

• Q2: How is the module powered and what is the power consumption without field loads?
  A2: The module is powered by an external 24 V DC supply and consumes approximately 3 mA without field loads.

• Q3: Can the FS-TSGAS-1624 provide fused power to connected detectors?
  A3: Yes, each channel is protected by a 500 mA fuse to safeguard connected transmitters.

• Q4: How does the module interface with the SAI-1620m Safety Manager module?
  A4: It converts 0–20 mA DC field signals into 0–4 V DC signals compatible with the SAI-1620m module with 0.1% accuracy.

• Q5: What mounting options are available for installation?

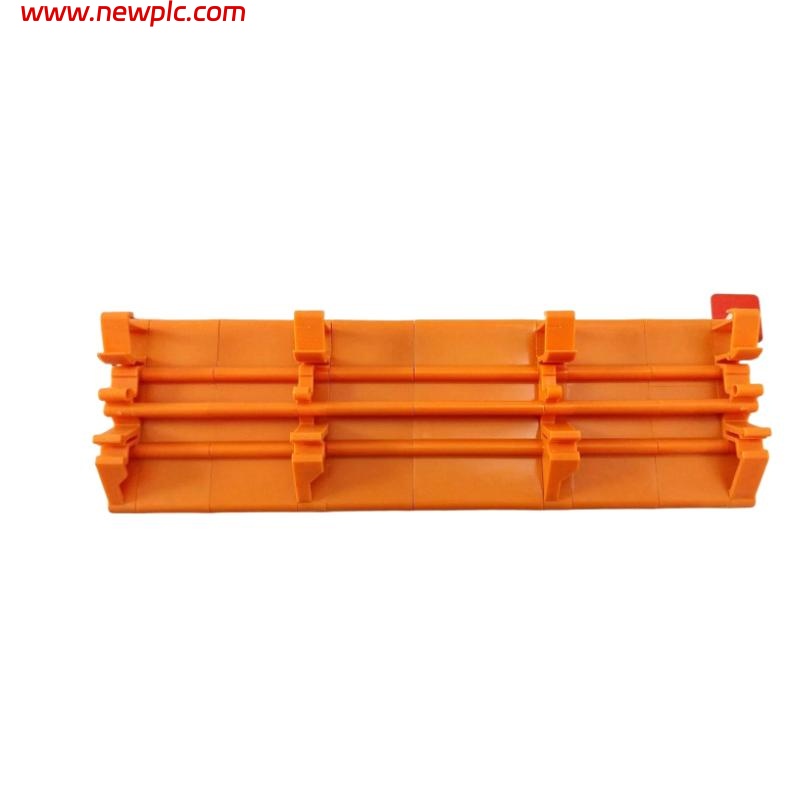

  A5: The module is designed for DIN rail mounting, compatible with TS32 or TS35 × 7.5 rails.

• Q6: How is the input signal integrity ensured over long cable runs?
  A6: The module has a 500 Ω input resistance which stabilizes the 0–20 mA signal, maintaining signal integrity.

• Q7: Are there built-in diagnostic features for testing connected detectors?
  A7: Yes, the module includes a built-in test switch to verify the operation of connected gas and flame detectors.

• Q8: What safety certifications does the FS-TSGAS-1624 comply with?
  A8: The module is certified to CE, TUV, UL, CSA, and FM standards.

Fail-Safe Gas-Flame Detector Input Field Termination Assembly FS-TSGAS-1624 Honeywell
