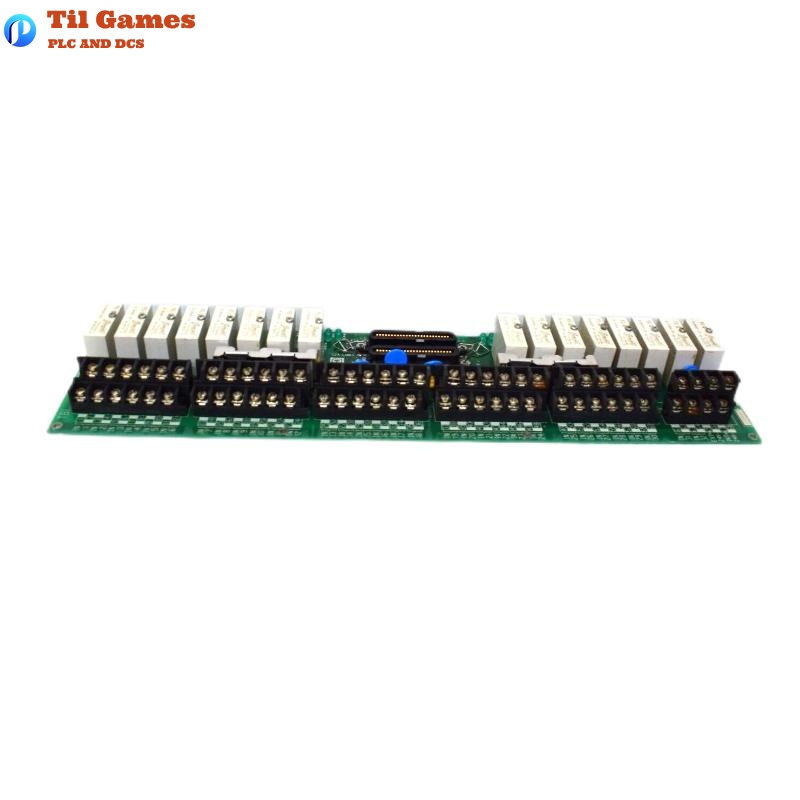

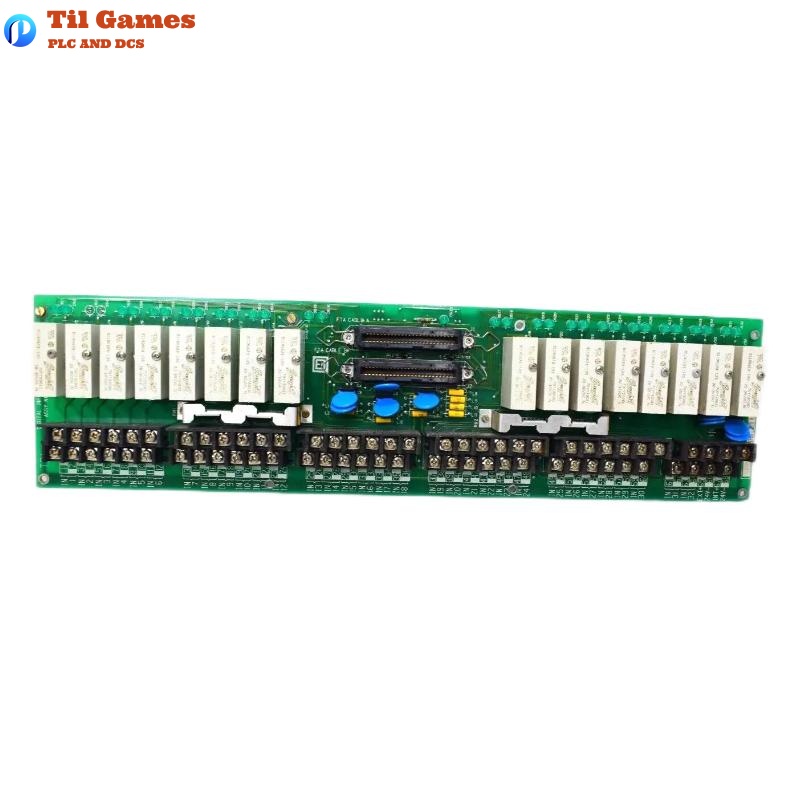

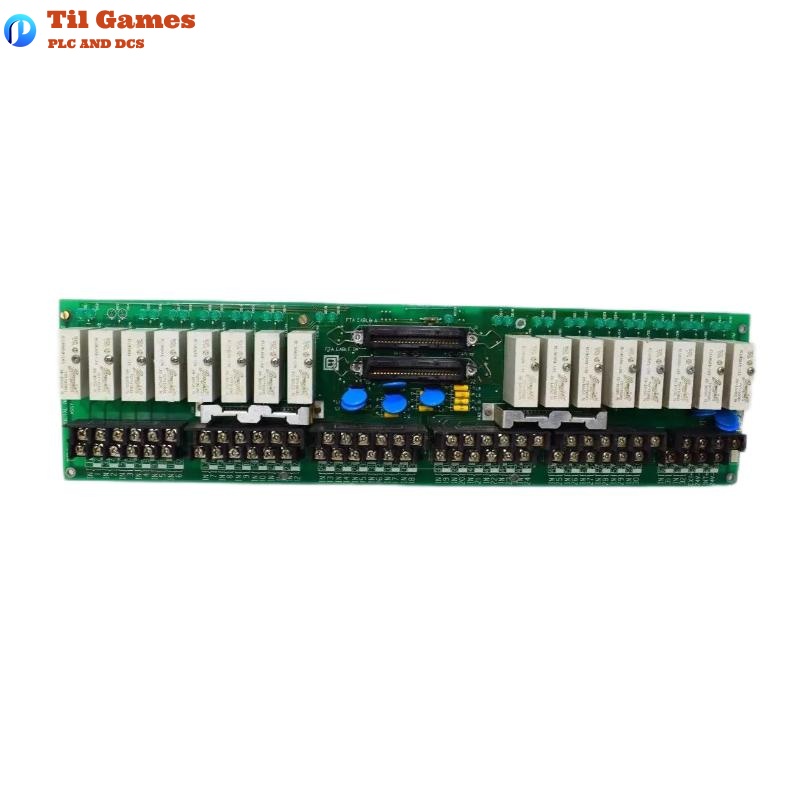

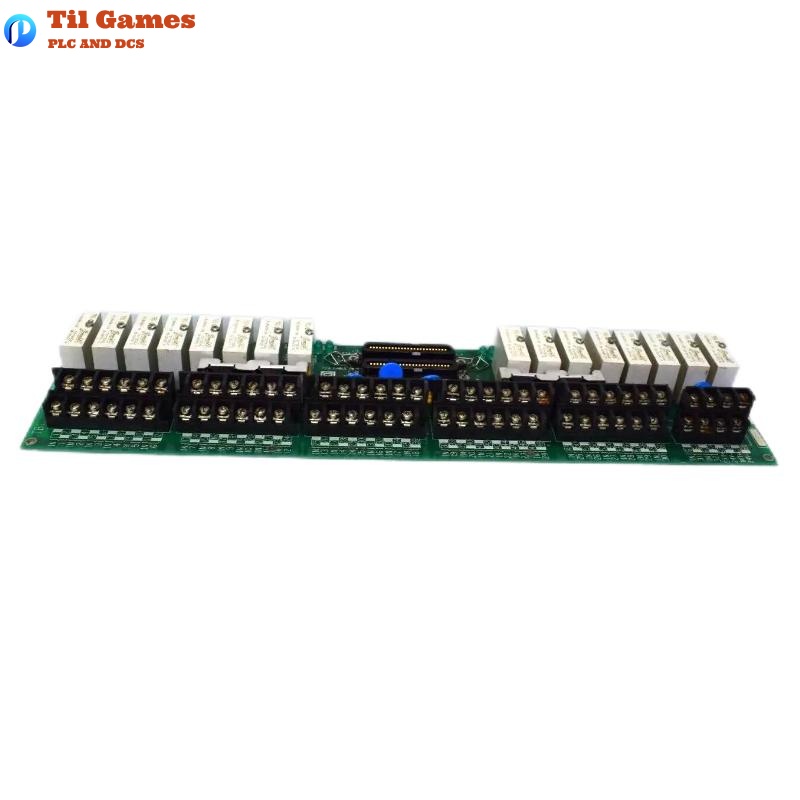

Honeywell MU-TDID52 51304441-200 Digital Input 24 Vdc FTA

FAQ (Frequently Asked Questions)

Q1: How many digital input channels are supported?
A1: The module supports 32 digital input channels.

Q2: What is the rated input voltage of this module?
A2: The rated input voltage is 24 VDC, and the operating range is 20-30 VDC.

Q3: What is the optical isolation level for each input?
A3: Each channel is optically isolated to 1500 VAC rms or ±1500 VDC.

Q4: What is the typical input delay for the module?
A4: The maximum input delay is 2.0 ms.

Q5: What are the dimensions and weight of the module?
A5: The module measures 462.3 x 120.7 mm and weighs 0.68 kg.

Q6: What are the sense current values for ON and OFF states?
A6: Sense current is at least 4.5 mA (ON), and not more than 2.8 mA (OFF).

Q7: What are the typical application scenarios for this module?
A7: It is typically used for digital signal acquisition in industrial automation, such as monitoring switch signals.

Q8: What are the environmental conditions for operation?
A8: Operating temperature is 0°C to 50°C, with relative humidity of 10%–90% (non-condensing).

51304441-200 Digital Input 24 Vdc FTA Honeywell MU-TDID52
