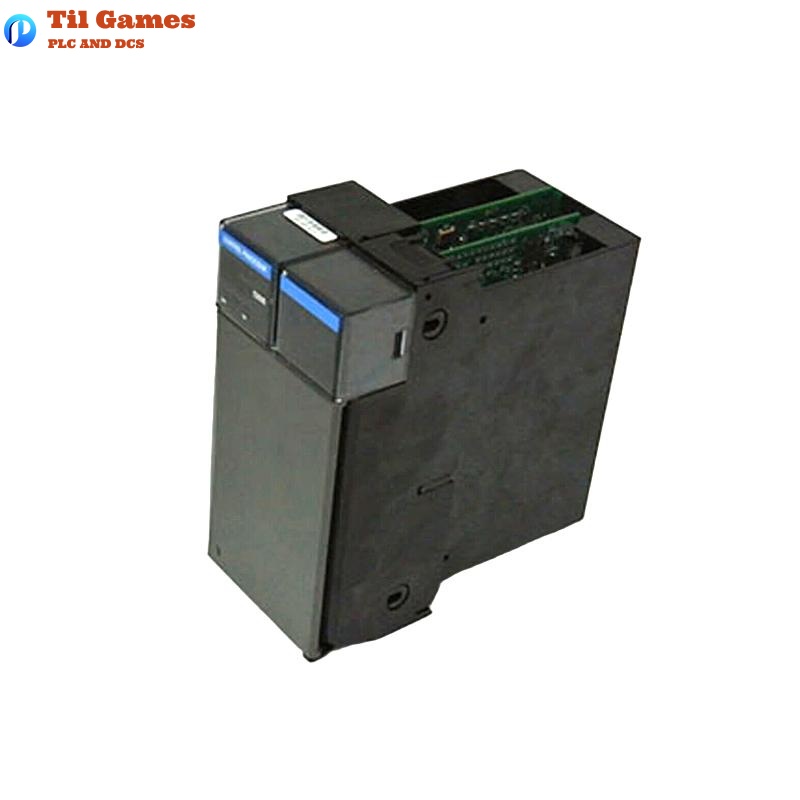

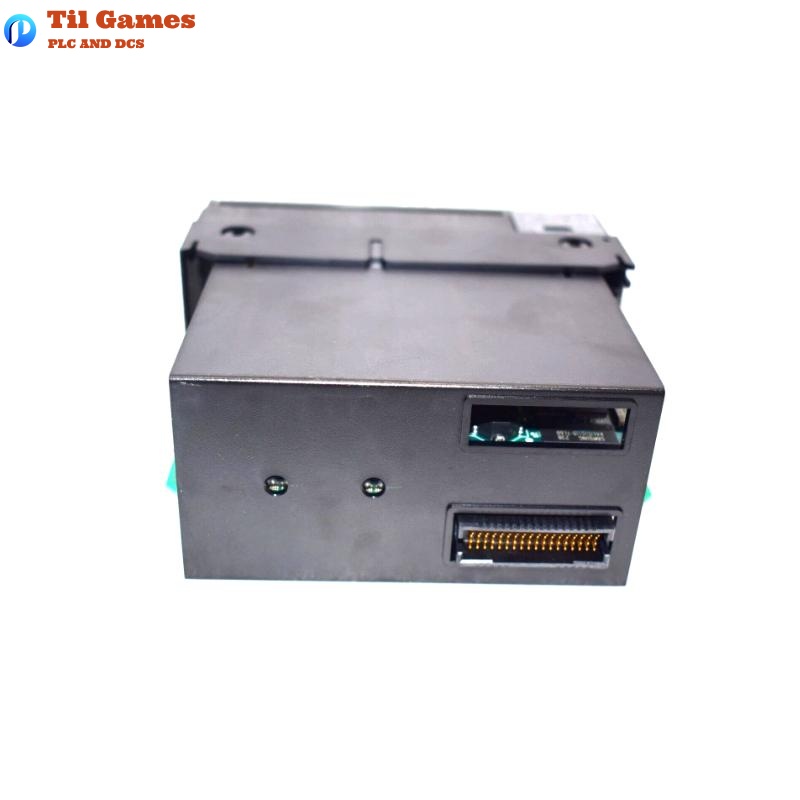

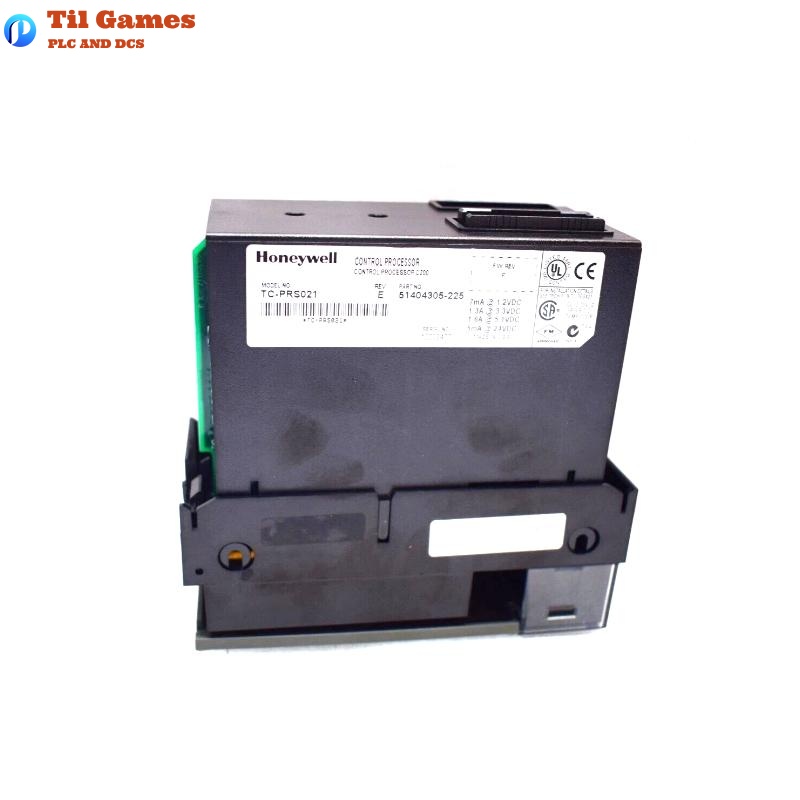

Honeywell TC-PRS021 51404305-225 Control Processor Module

FAQ

Q1: What is the primary function of the TC-PRS021 control processor module?
A1: The TC-PRS021 is designed to perform process and logic control tasks within the Honeywell C200 system. It acts as the core controller for executing automation strategies.

Q2: Does the TC-PRS021 support redundancy?
A2: Yes, it supports redundancy when used with the TC-PRR021 redundancy module, enabling fault-tolerant control.

Q3: What communication interface does the module use?
A3: It uses a ControlNet interface to communicate with other system components for reliable and high-speed data exchange.

Q4: What type of rack is required for installation?
A4: The module must be installed in a compatible Series A system rack, such as 4-slot, 7-slot, 10-slot, 13-slot, or 17-slot chassis.

Q5: How is power supplied to the module?
A5: Power is delivered through the chassis backplane, using a regulated 5 VDC supply from the rack’s power module.

Q6: What are the environmental requirements for operating the module?
A6: The recommended operating temperature is 0°C to 60°C, with a relative humidity range of 5% to 95% non-condensing.

Q7: Is the module hot-swappable?
A7: No, the TC-PRS021 does not support hot-swapping. It must be replaced or installed with power off or in a safe system state.

Q8: Can the module be used for system upgrades?
A8: Yes, the TC-PRS021 is suitable for upgrading existing C200 systems and supports a smooth transition to newer platforms.
