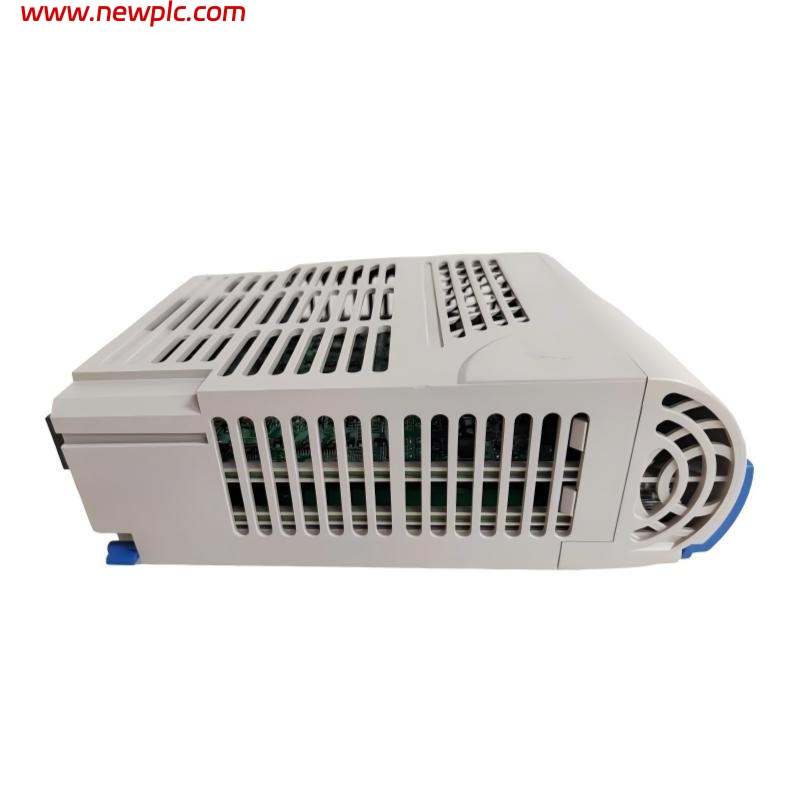

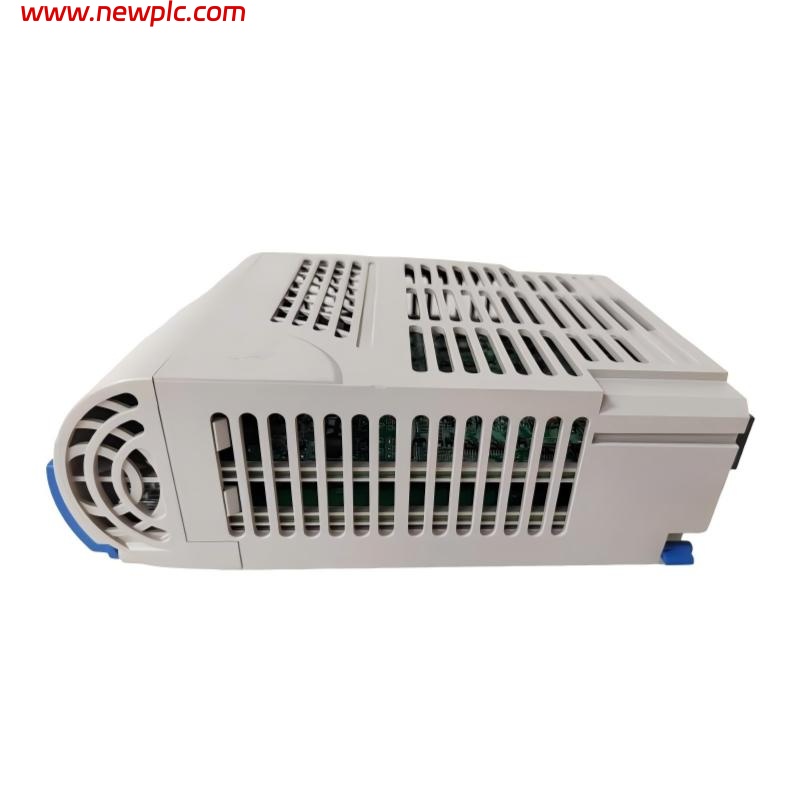

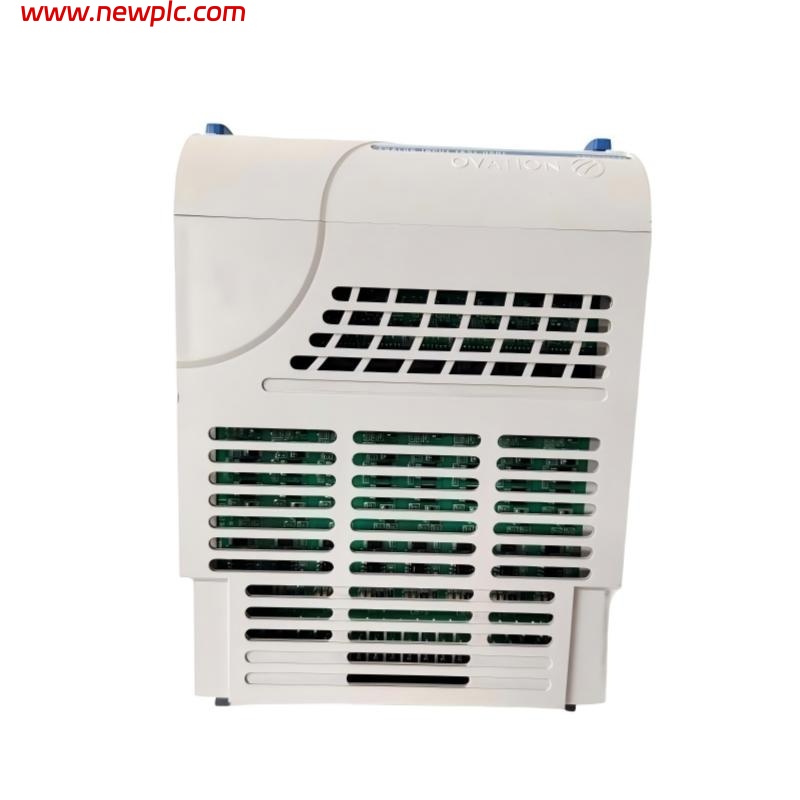

Ovation 1C31233G02 Digital I/O Module

FAQ

Q1: What is the primary function of the Ovation 1C31233G02 Digital I/O Module?
A1: It is used to interface with discrete field devices, providing both digital input acquisition and digital output control within the Ovation system.

Q2: How many digital input and output channels does this module have?
A2: The module has 16 digital input channels and 16 digital output channels.

Q3: What is the voltage range supported for digital inputs and outputs?
A3: Both input and output channels support a voltage range of 0–30 VDC.

Q4: What are the logic level thresholds for digital input detection?
A4: Logic “1” is recognized at voltages ≥15 VDC, and logic “0” is recognized at voltages ≤5 VDC.

Q5: Does the module provide isolation for inputs?
A5: Yes, all input channels are electrically isolated from the system with 2500 V RMS isolation.

Q6: What protection is provided for the output channels?
A6: Output channels include short-circuit and overvoltage protection for safe operation.

Q7: How fast does the module respond to input changes or output commands?
A7: The module has a response time of less than 5 milliseconds, suitable for real-time control applications.

Q8: How is the 1C31233G02 module installed in the Ovation system?
A8: It is rack-mounted within the Ovation I/O subsystem, providing secure electrical connections and easy maintenance access.
