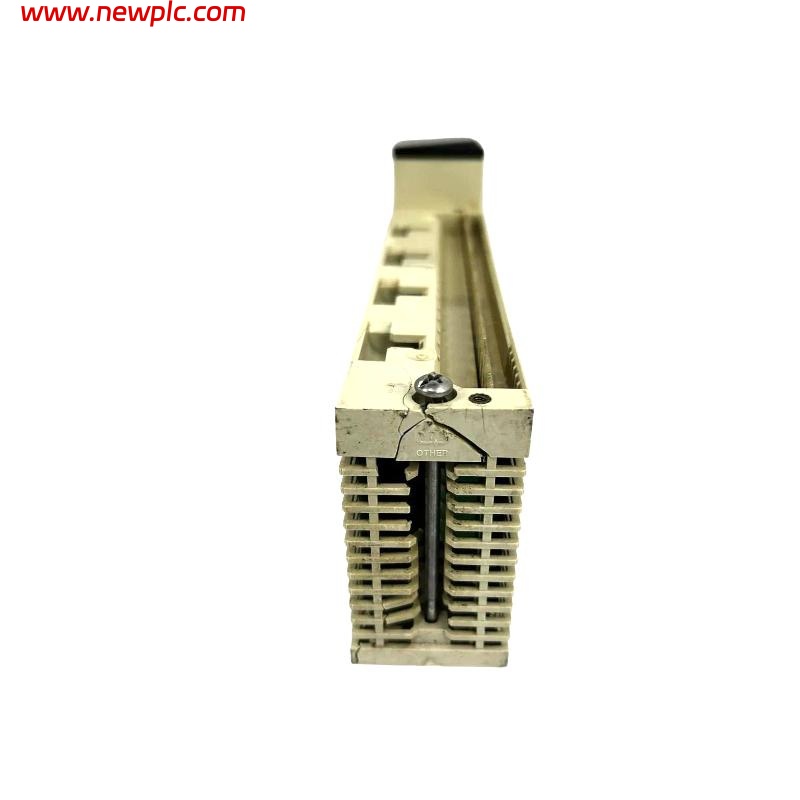

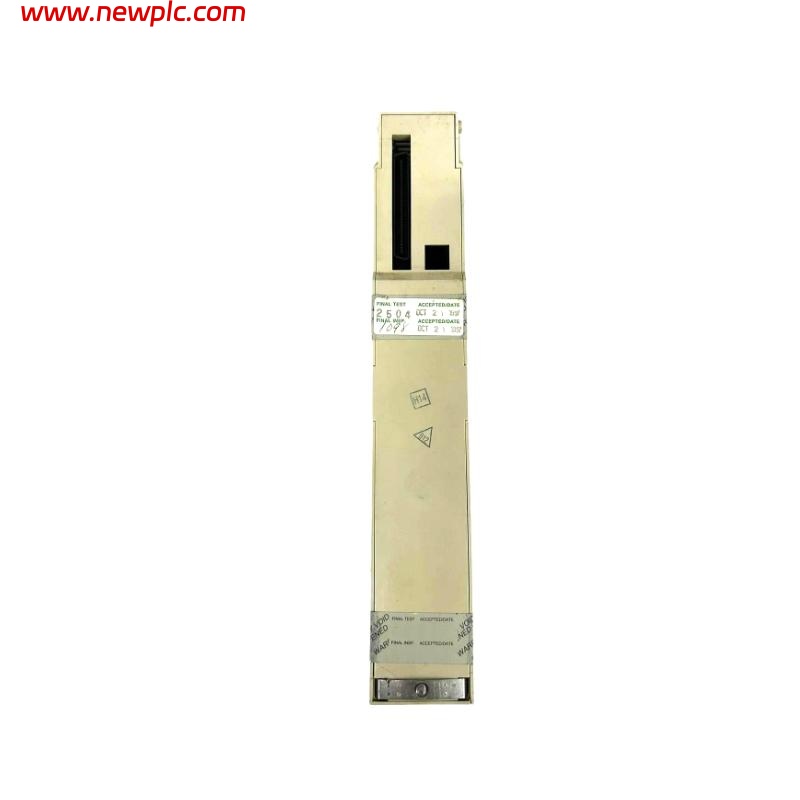

Schneider 140DAI55300C Discrete Input Module

FAQ

Q1: How many input channels does this module support?
A1: The module supports 32 discrete input channels.

Q2: What is the input voltage range of the 140DAI55300C?
A2: The input voltage range is 19 to 30 VDC.

Q3: What is the typical current per input channel?
A3: Typical input current is 6 mA per channel.

Q4: Does it use positive or negative logic input signals?
A4: The module uses positive logic (source) input signals.

Q5: Is there isolation between channels?
A5: Yes, there is 500 V AC isolation between channels and to ground.

Q6: What is the typical response time of the module?
A6: The response time is less than 4 milliseconds.

Q7: What are the dimensions and weight of the module?
A7: The dimensions are 103.9 × 40.3 × 250 mm and the weight is approximately 0.33 kg.

Q8: What is the operating temperature range?
A8: The operating temperature range is 0 to 60°C.

140DAI55300C Discrete Input Module Schneider
