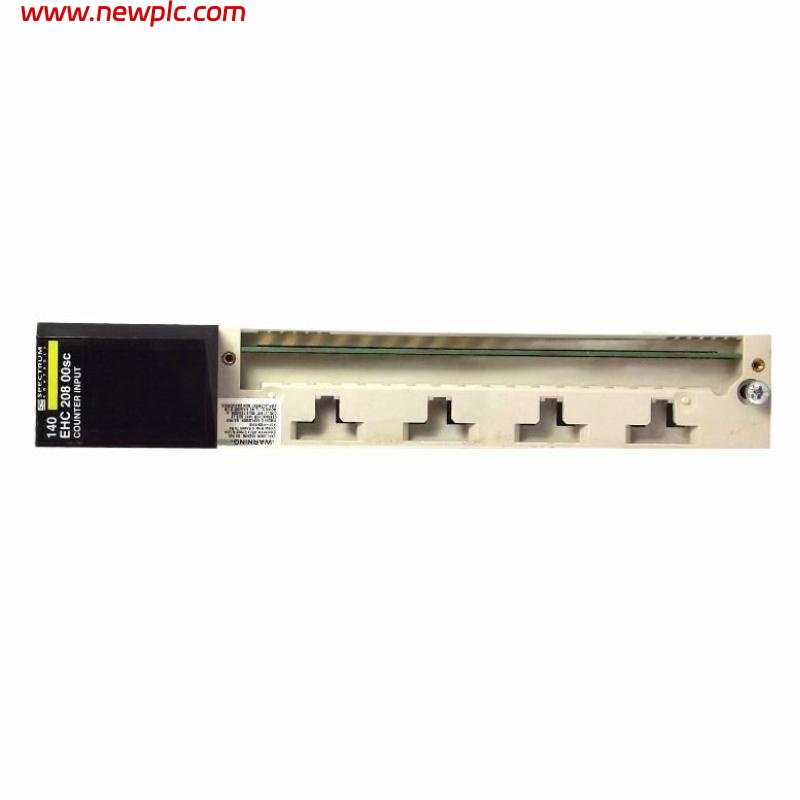

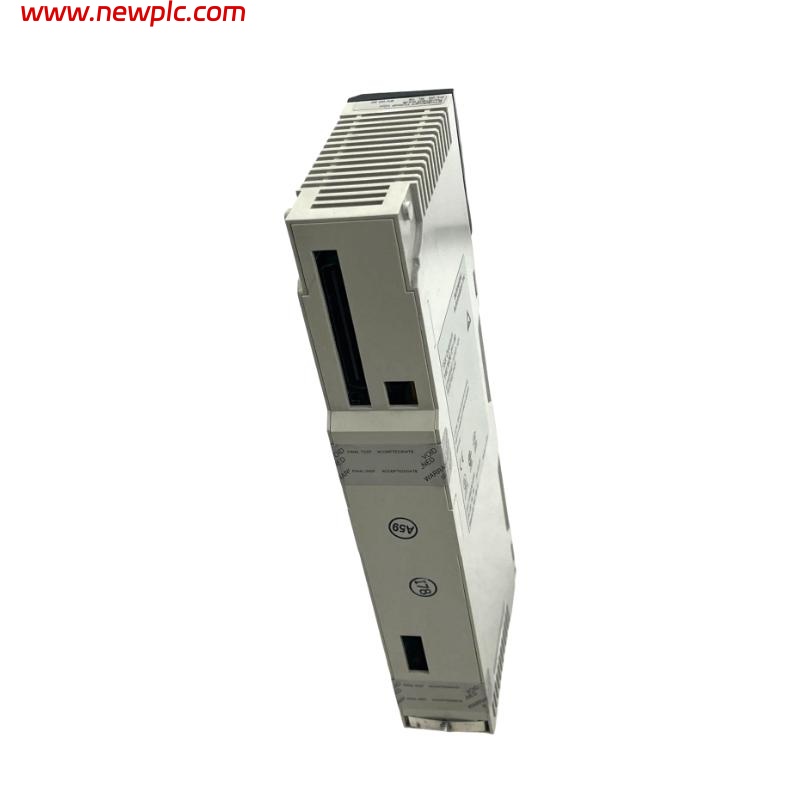

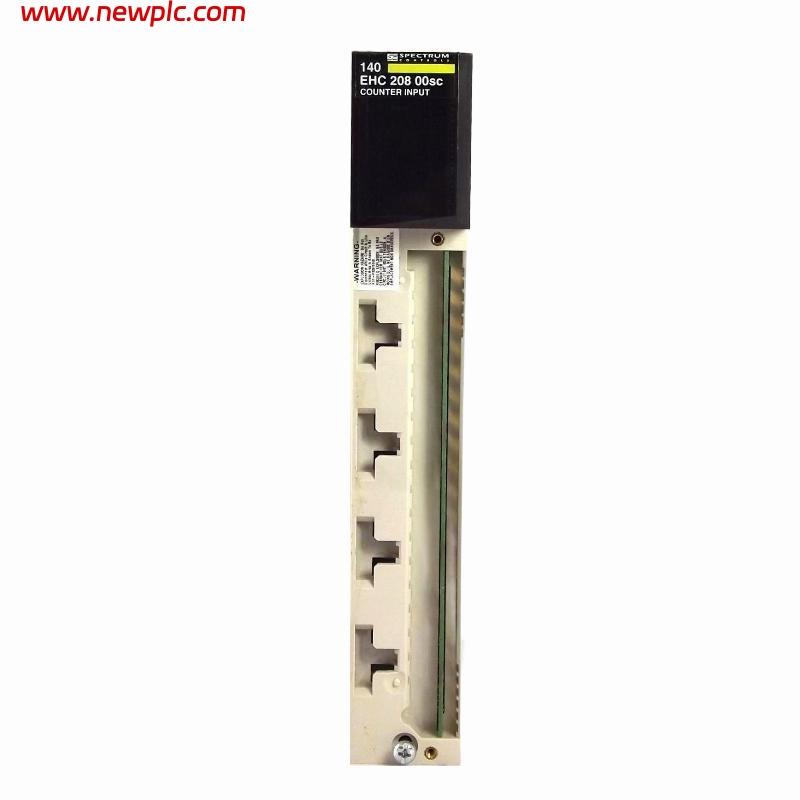

Schneider 140EHC20800 Analog Counter Module

FAQ

Q1: What is the function of the 140EHC20800 Analog Counter Module?
It is designed to count and process high-speed analog or pulse input signals, allowing precise measurement of position, rotation, or frequency in automation systems.

Q2: How many channels does this module support?
The module provides two independent counting channels, each capable of handling high-speed pulse or frequency inputs.

Q3: What types of counting modes are available?
It supports several counting modes, including Up, Down, Up/Down, and Quadrature, which allows compatibility with different encoder types and applications.

Q4: What is the resolution of the counter?
The 32-bit resolution ensures accurate counting and minimizes the possibility of overflow in high-speed operations.

Q5: What is the maximum input frequency supported by this module?
It supports input frequencies up to 80 kHz, making it suitable for demanding industrial environments requiring fast counting responses.

Q6: Does the module provide electrical isolation?
Yes, it offers 1500 V RMS isolation between field inputs and the system bus, enhancing reliability and protection.

Q7: How is the module integrated into the control system?
It can be easily installed in the Schneider Modicon Quantum system, configured through programming software for seamless data communication.

Q8: In what type of applications is the 140EHC20800 typically used?
It is commonly applied in motion control, speed monitoring, flow measurement, and other automation processes requiring precise pulse or analog signal counting.
